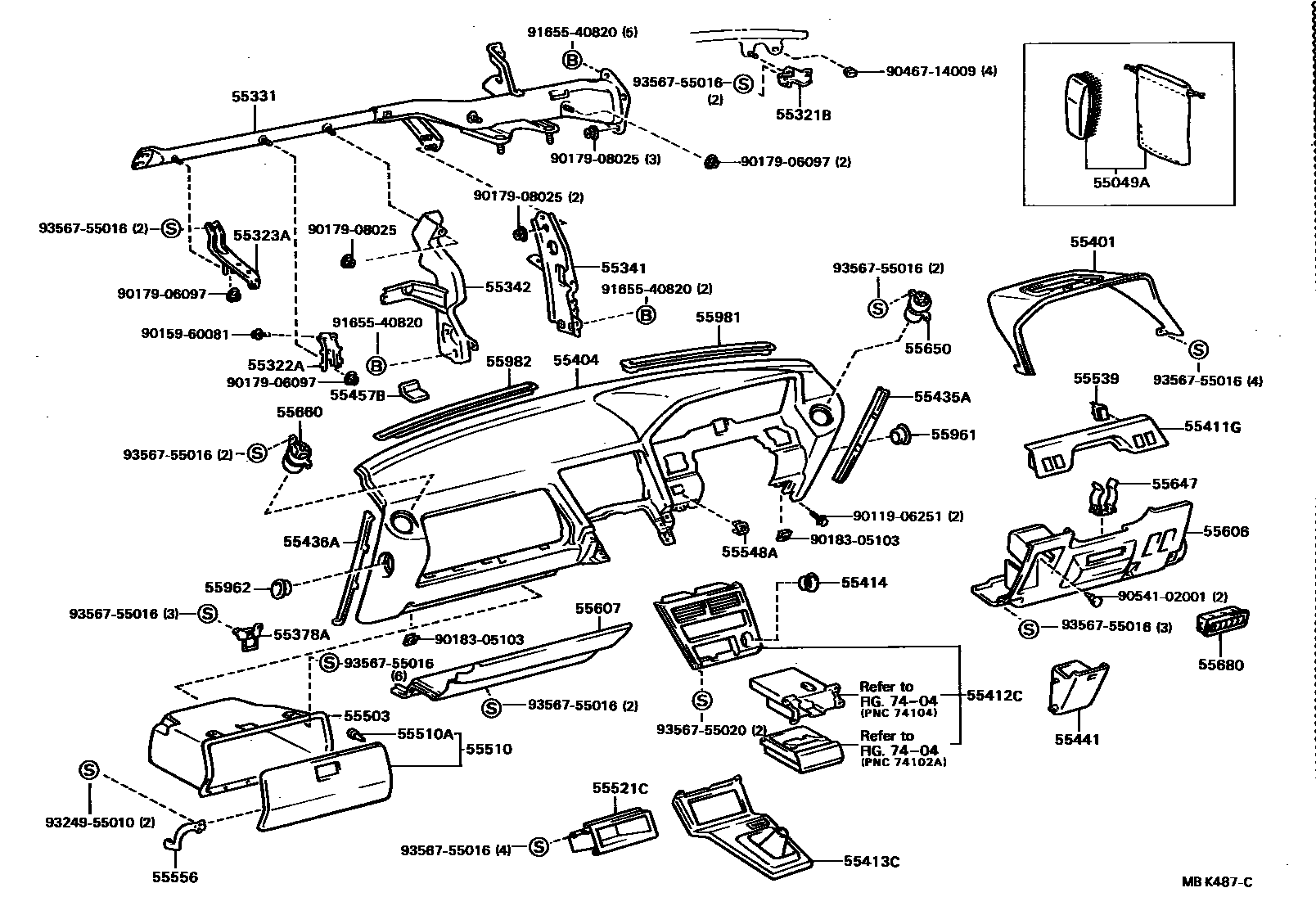

INSTRUMENT PANEL & GLOVE COMPARTMENT

55049ABRUSH SET

main55049-24010iMZ2#..GTL198701-198801

55321BBRACKET, INSTRUMENT PANEL, NO.1

main55321-24020iGZ20,MZ2#198601-198801

55322ABRACKET, INSTRUMENT PANEL, NO.2

main55322-24020iGZ20,MZ2#198601-198801

55323ABRACKET, INSTRUMENT PANEL, NO.3

main55323-24020iGZ20,MZ2#198601-198801

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-24010iGZ20,MZ2#198601-198801

55341BRACE, INSTRUMENT PANEL, NO.1

main55306-24020iGZ20,MZ2#198601-198801

55342BRACE, INSTRUMENT PANEL, NO.2

main55307-24020iGZ20,MZ2#198601-198801

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55378-24020iGZ20,MZ2#198601-198801

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55404-24050iGZ20,MZ2#198601-198801

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-24030-01iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BLACK,BLACK,TRIM2#

main55401-24030-05iGZ20,MZ20..GT,VX198601-198801

BEIGE,DARK BEIGE,TRIM4#

main55401-24030-06iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BROWN,BROWN,TRIM4#

main55401-24040-05iMZ2#..GTL198601-198801

*GI,BEIGE,DARK BEIGE,TRIM4#

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-24050iGZ20,MZ2#198601-198801

55412CPANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1

main55405-24010iGZ20,MZ2#198601-198801

sub55405-24020

55413CPANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.2

main55413-24010-01iGZ20,MZ2#..5F..(GT,GTL)198601-198801

BLACK,BLACK,TRIM2#

sub55413-24060

main55413-24010-05iGZ20,MZ2#..5F..(GT,GTL)198601-198801

BEIGE,DARK BEIGE,TRIM4#

sub55413-24060

main55413-24010-05iGZ20,MZ2#..5F..(GT,GTL)198601-198801

W/TEMS,BEIGE,DARK BEIGE,TRIM4#

sub55413-24060

main55413-24010-06iGZ20,MZ2#..5F..(GT,GTL)198601-198801

BROWN,BROWN,TRIM4#

sub55413-24060

main55413-24020-01iGZ20..5F..(GTT,VX,VZ)198601-198801

BLACK,BLACK,TRIM2#

sub55413-24070

main55413-24020-05iGZ20..5F..(GTT,VX)198601-198801

BEIGE,DARK BEIGE,TRIM4#

sub55413-24070

main55413-24020-06iGZ20..5F..(GTT,VX,VZ)198601-198801

BROWN,BROWN,TRIM4#

sub55413-24070

main55413-24030iGZ20,MZ2#..4FC..(GT,GTL)198601-198801

sub55413-24110

main55413-24030iGZ20..4FC..GTT198608-198801

W/TEMS

sub55413-24110

main55413-24040iGZ20..4FC..GTT198601-198801

sub55413-24120

main55413-24050iGZ20..4FC..(VX,VZ)198601-198801

sub55413-24130

55414BEZEL, CIGAR LIGHTER HOLE

main55477-14050iGZ20,MZ2#198601-198801

55435APANEL, INSTRUMENT PANEL FINISH, END RH

main55435-24020-01iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BLACK,BLACK,TRIM2#

sub55435-24020

main55435-24020-05iGZ20,MZ2#..GT,GTL,VX198601-198801

BEIGE,DARK BEIGE,TRIM4#

sub55435-24020

main55435-24020-06iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BROWN,BROWN,TRIM4#

sub55435-24020

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-24020-01iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BLACK,BLACK,TRIM2#

main55436-24020-05iGZ20,MZ2#..GT,GTL,GTT,VX198601-198801

BEIGE,DARK BEIGE,TRIM4#

main55436-24020-06iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BROWN,BROWN,TRIM4#

55441BOX, INSTRUMENT PANEL

main55440-24010-01iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BLACK,BLACK,TRIM2#

sub55440-24010

main55440-24010-05iGZ20,MZ2#..GT,GTL,GTT,VX198601-198801

BEIGE,DARK BEIGE,TRIM4#

sub55440-24010

main55440-24010-06iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BROWN,BROWN,TRIM4#

sub55440-24010

55457BSPACER, INSTRUMENT PANEL SAFETY PAD

main55457-22030iGZ20,MZ2#198601-198801

55503COMPARTMENT SUB-ASSY, GLOVE

main55581-24020iGZ20,MZ2#198601-198801

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-24020-01iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BLACK,BLACK,TRIM2#

main55550-24020-05iGZ20,MZ20..GT,VX198601-198801

BEIGE,DARK BEIGE,TRIM4#

main55550-24020-06iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BROWN,BROWN,TRIM4#

main55550-24030-05iMZ2#..GTL198601-198801

*GI,BEIGE,DARK BEIGE,TRIM4#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015iGZ20,MZ2#198601-198801

55521CCOVER, STEREO OPENING

main55521-16010iGZ20..VZ198601-198801

sub55521-16030

55539COVER, SPARE SWITCH HOLE

main55539-24020iGZ20,MZ2#198601-198801

sub55539-24030

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-24020-01iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BLACK,BLACK,TRIM2#

sub55548-24020

main55548-24020-05iGZ20,MZ2#..GT,GTL,VX198601-198801

BEIGE,DARK BEIGE,TRIM4#

sub55548-24020

main55548-24020-06iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BROWN,BROWN,TRIM4#

sub55548-24020

55556ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-24020iGZ20,MZ2#198601-198801

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-24020-01iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BLACK,BLACK,TRIM2#

sub55606-24030

sub55539-20030

main55606-24020-05iGZ20,MZ2#..GT,GTL,VX198601-198801

BEIGE,DARK BEIGE,TRIM4#

sub55606-24030

sub55539-20030

main55606-24020-06iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BROWN,BROWN,TRIM4#

sub55606-24030

sub55539-20030

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-24030-01iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BLACK,BLACK,TRIM2#

sub55607-24040

main55607-24030-05iGZ20,MZ2#..GT,GTL,GTT,VX198601-198801

BEIGE,DARK BEIGE,TRIM4#

sub55607-24040

main55607-24030-06iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BROWN,BROWN,TRIM4#

sub55607-24040

55647CLAMP, INSTRUMENT PANEL UNDER COVER

main55647-22010iGZ20,MZ2#198601-198801

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-24020-01iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BLACK,BLACK,TRIM2#

sub55650-24020

main55650-24020-05iGZ20,MZ2#..GT,GTL,GTT,VX198601-198801

BEIGE,DARK BEIGE,TRIM4#

sub55650-24020

main55650-24020-06iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BROWN,BROWN,TRIM4#

sub55650-24020

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-24050-01iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BLACK,BLACK,TRIM2#

sub55660-24050

main55660-24050-05iGZ20,MZ2#..GT,GTL,VX198601-198801

BEIGE,DARK BEIGE,TRIM4#

sub55660-24050

main55660-24050-06iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BROWN,BROWN,TRIM4#

sub55660-24050

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-14030-01iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BLACK,BLACK,TRIM2#

sub55680-14030

main55680-14030-05iGZ20,MZ2#..GT,GTL,VX198601-198801

BEIGE,DARK BEIGE,TRIM4#

sub55680-14030

main55680-14030-06iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BROWN,BROWN,TRIM4#

sub55680-14030

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-24020-01iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BLACK,BLACK,TRIM2#

sub55961-24020

main55961-24020-05iGZ20,MZ2#..GT,GTL,GTT,VX198601-198801

BEIGE,DARK BEIGE,TRIM4#

sub55961-24020

main55961-24020-06iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BROWN,BROWN,TRIM4#

sub55961-24020

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-24020-01iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BLACK,BLACK,TRIM2#

sub55962-24020

main55962-24020-05iGZ20,MZ2#..GT,GTL,GTT,VX198601-198801

BEIGE,DARK BEIGE,TRIM4#

sub55962-24020

main55962-24020-06iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BROWN,BROWN,TRIM4#

sub55962-24020

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-24020-01iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BLACK,BLACK,TRIM2#

sub55981-24020

main55981-24020-05iGZ20,MZ20..GT,GTL,GTT,VX198601-198801

BEIGE,DARK BEIGE,TRIM4#

sub55981-24020

main55981-24020-06iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BROWN,BROWN,TRIM4#

sub55981-24020

main55981-24030-05iMZ2#..GTL198601-198604

BEIGE,DARK BEIGE,TRIM4#

sub55981-24020

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-24020-01iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BLACK,BLACK,TRIM2#

sub55982-24020

sub55981-24020

main55982-24020-05iGZ20,MZ20..GT,GTT,VX198601-198801

BEIGE,DARK BEIGE,TRIM4#

sub55982-24020

sub55981-24020

main55982-24020-06iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BROWN,BROWN,TRIM4#

sub55982-24020

sub55981-24020

main55982-24030-05iMZ2#..GTL198601-198604

BEIGE,DARK BEIGE,TRIM4#

sub55982-24020

7404

9011906251

main90119-06251

9015960081

main90159-60081

9017906097

main90179-06097

9017908025

main90179-08025

9018305103

main90183-05103

9046714009

main90467-14009

9054102001

main90541-02001

9165540820

main91655-40820

9324955010

main93249-55010

9356755016

main93567-55016

9356755020

main93567-55020

47 parts on this diagram · 1 diagram in section
