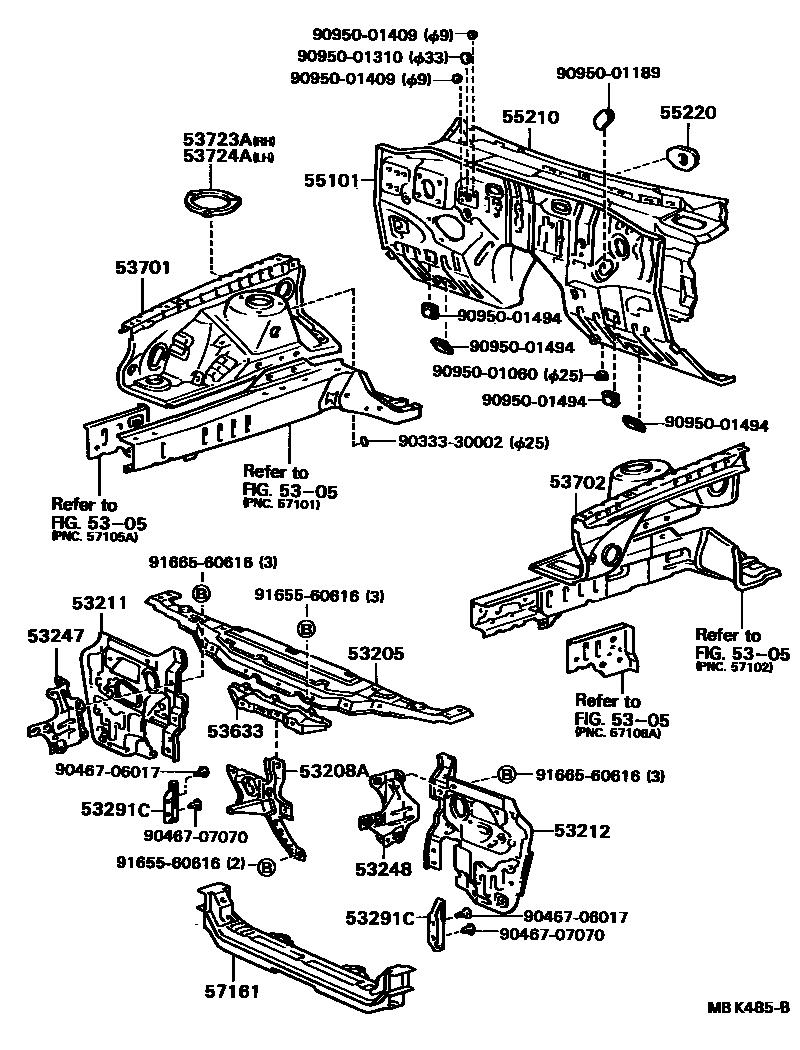

FRONT FENDER APRON & DASH PANEL

5305

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-24030iGZ20,MZ2#198601-198801

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-24020iGZ20,MZ2#198601-198801

53211SUPPORT, RADIATOR, RH

main53211-24020iGZ20,MZ2#198601-198801

53212SUPPORT, RADIATOR, LH

main53212-24020iGZ20,MZ2#198601-198801

53247BRACKET, HEADLAMP MOUNTING, INNER RH

main53247-24010iGZ20,MZ2#198601-198801

53248BRACKET, HEADLAMP MOUNTING, INNER LH

main53248-24020iGZ20,MZ2#198601-198801

53291CSEAL, RADIATOR SUPPORT TO FRAME

main53291-14040iGZ20,MZ2#198601-198801

RH

main53292-14010iGZ20,MZ2#198601-198801

LH

53633SHIELD, HOOD LOCK CONTROL CABLE

main53633-24010iGZ20,MZ2#198601-198801

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-24900iGZ20,MZ20198601-198801

sub53701-24903

main53701-24902iMZ21198601-198801

sub53701-24904

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-24900iGZ20,MZ20198601-198801

sub53702-24902

main53702-24901iMZ21198601-198801

sub53702-24903

53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH

main53723-14060iGZ20,MZ2#198601-198801

53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH

main53723-14060iGZ20,MZ2#198601-198801

55101PANEL SUB-ASSY, DASH

main55101-24030iGZ20198601-198801

main55101-24050iMZ2#198601-198801

main55101-24050iGZ20..GT,VX198601-198801

W/AUTO DRIVE

55210INSULATOR ASSY, DASH PANEL

main55210-24030iGZ20,MZ2#198601-198801

55220INSULATOR ASSY, DASH PANEL, NO.2

main55220-14050iGZ20,MZ2#198601-198801

57161CROSSMEMBER, FRONT

main57104-14120iGZ20,MZ2#198601-198801

9033330002

main90333-30002

9046706017

main90467-06017

9046707070

main90467-07070

9095001060

main90950-01060

9095001189

main90950-01189

9095001310

main90950-01310

9095001409

main90950-01409

9095001494

main90950-01494

9165560616

main91655-60616

9166560616

main91665-60616

27 parts on this diagram · 1 diagram in section
