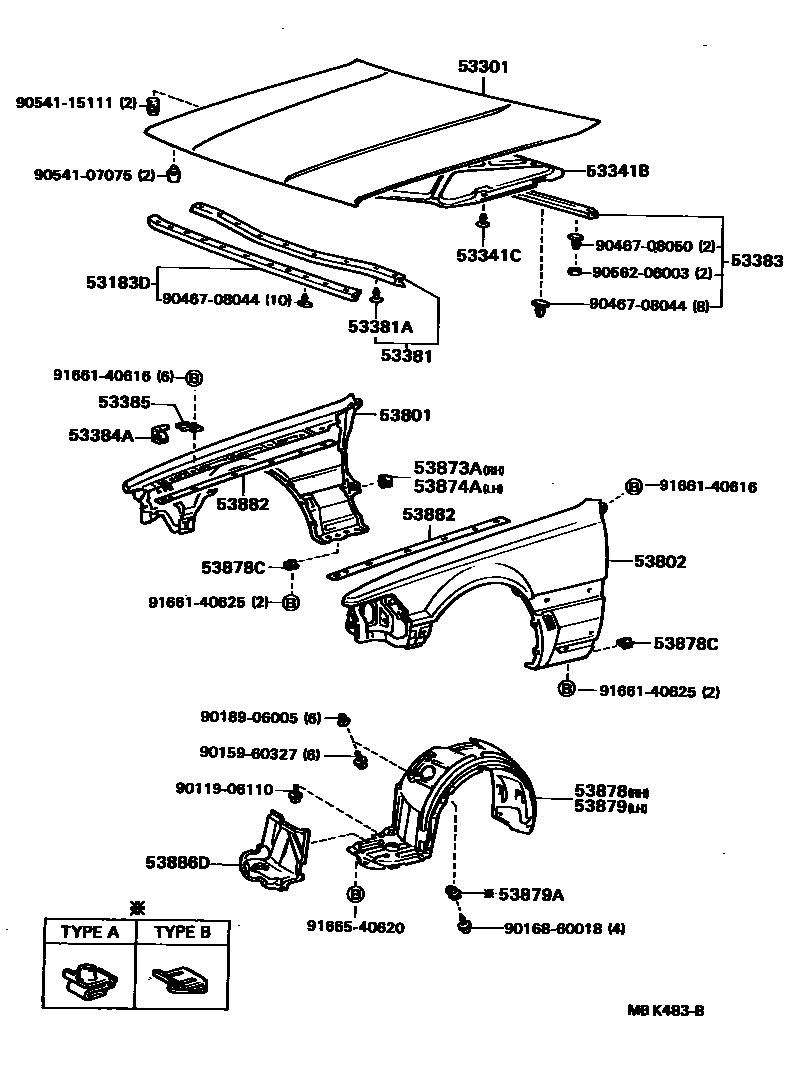

HOOD & FRONT FENDER
53183DSEAL, HEADLAMP COVER TO HOOD
53301HOOD SUB-ASSY
53341CCLIP(FOR HOOD INSULATOR)
PLASTIC
STEEL
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53383SEAL, HOOD TO COWL TOP
53384ABUMPER, FENDER TO HOOD
53385RETAINER, HOOD, BUMPER
RH
LH
53801FENDER SUB-ASSY, FRONT RH
W/DOOR MIRROR
W/FENDER MIRROR
W/DOOR MIRROR & *SMU
W/FENDER MIRROR & *SMU
53802FENDER SUB-ASSY, FRONT LH
W/DOOR MIRROR
W/DOOR MIRROR & *SMU
W/FENDER MIRROR & *SMU
53873ASPACER, FRONT FENDER TO DOOR HINGE, RH
53874ASPACER, FRONT FENDER TO DOOR HINGE, LH
53878LINER, FRONT FENDER, RH
53878CSPACER, FRONT FENDER
53879LINER, FRONT FENDER, LH
53879ARETAINER, FRONT FENDER LINER
TYPE A
TYPE B
53882PACKING, FRONT FENDER MAIN
53886DSILENCER, FRONT FENDER LINER
9011906110
main90119-06110
9015960327
main90159-60327
9016860018
main90168-60018
9018906005
main90189-06005
9046708044
main90467-08044
9046708050
main90467-08050
9054107075
main90541-07075
9054115111
main90541-15111
9056206003
main90562-06003
9166140616
main91661-40616
9166140625
main91661-40625
9166540620
main91665-40620
31 parts on this diagram · 1 diagram in section
