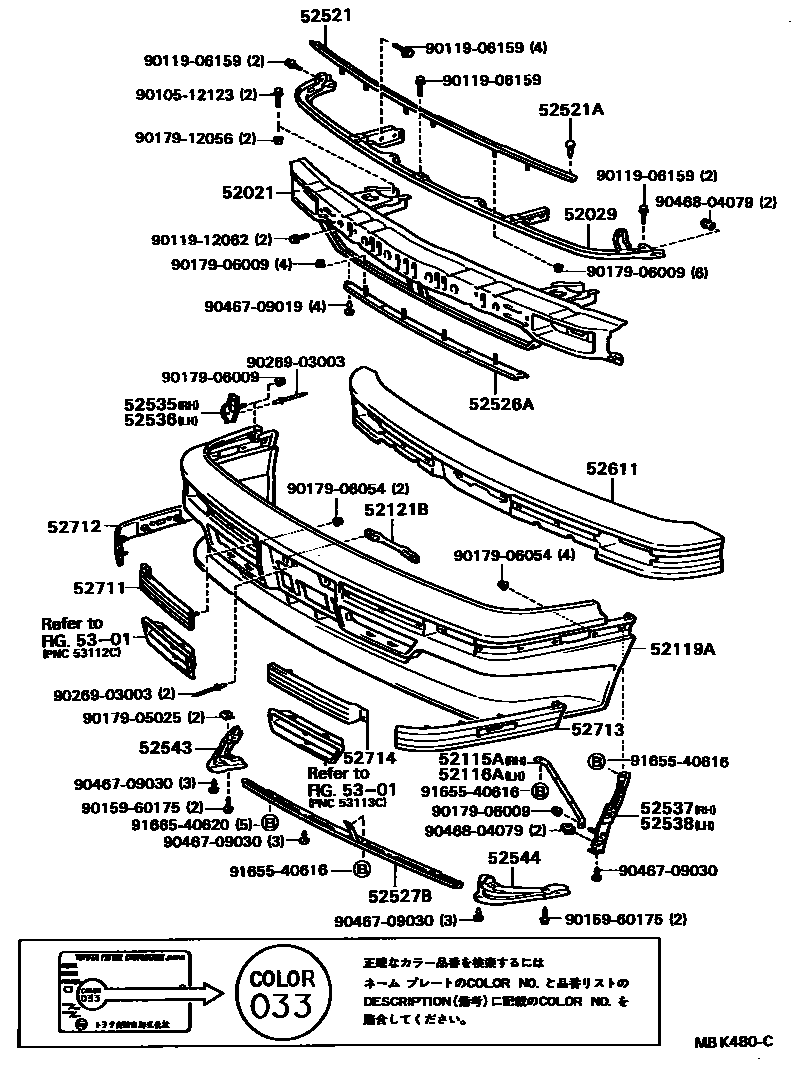

FRONT BUMPER & BUMPER STAY

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-24030iGZ20,MZ2#198601-198801

sub52021-24031

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-24020iGZ20,MZ2#198601-198712

sub52029-24021

main52029-24021iGZ20,MZ2#198712-198801

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-24030iGZ20,MZ2#198601-198801

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52115-24030iGZ20,MZ2#198601-198801

52119ACOVER, FRONT BUMPER

main52119-24030-02iGZ20198601-198801

RED-MICA,RED MICA,3H1

sub52119-24911

main52119-24030-03iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

SUPER SILVER-2M,SUPER SILVER 2,166

sub52119-24911

main52119-24030-08iGZ20,MZ2#198601-198801

SUPER WHITE 2,SUPER WHITE 2,040

sub52119-24911

main52119-24030-13iGZ20..GTT198601-198801

GRAY,DARK GRAY M/GRAY M,26A

sub52119-24911

main52119-24030-18iGZ20,MZ20..GT,GTT,VX198601-198801

PEARL MICA,WHITE PEARL MICA,2V0

sub52119-24911

main52119-24030-28iMZ2#..GTL198601-198801

PEARL MICA & BEIGE,PEARL MICA/BEIGE,25A

sub52119-24911

main52119-24050-02iGZ20198601-198801

W/*RS,RED-MICA,RED MICA,3H1

sub52119-24912

main52119-24050-03iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

W/*RS,SUPER SILVER-2M,SUPER SILVER 2,166

sub52119-24912

main52119-24050-08iGZ20,MZ2#198601-198801

W/*RS,SUPER WHITE 2,SUPER WHITE 2,040

sub52119-24912

main52119-24050-13iGZ20..GTT198601-198801

W/*RS,GRAY,DARK GRAY M/GRAY M,26A

sub52119-24912

main52119-24050-18iGZ20,MZ20..GT,VX198601-198801

W/*RS,PEARL MICA,WHITE PEARL MICA,2V0

sub52119-24912

main52119-24050-28iMZ2#..GTL198601-198801

W/*RS,PEARL MICA & BEIGE,PEARL MICA/BEIGE,25A

sub52119-24912

52121BBRACKET, FRONT LICENCE PLATE MOUNTING

main52121-24010iGZ20,MZ2#198601-198801

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-24020iGZ20,MZ2#198601-198801

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-06017-01iGZ20,MZ2#198601-198801

BLACK

sub90467-06017

52526ARETAINER, FRONT BUMPER, LOWER NO.1

main52526-24010iGZ20,MZ2#198601-198801

52527BRETAINER, FRONT BUMPER, LOWER NO.2

main52527-24020iGZ20,MZ2#198601-198801

main52527-24030iGZ20,MZ2#198601-198801

W/SPOILER

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-24020iGZ20,MZ2#198601-198801

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-24020iGZ20,MZ2#198601-198801

52537RETAINER, FRONT BUMPER END, RH

main52537-24010iGZ20,MZ2#198601-198801

main52537-24020iGZ20,MZ2#198601-198801

W/SPOILER

52538RETAINER, FRONT BUMPER END, LH

main52538-24010iGZ20,MZ2#198601-198801

main52538-24020iGZ20,MZ2#198601-198801

W/SPOILER

52543SEAL, FRONT BUMPER SIDE, RH

main52543-24010iGZ20,MZ2#198601-198801

52544SEAL, FRONT BUMPER SIDE, LH

main52544-24010iGZ20,MZ2#198601-198801

52611ABSORBER, FRONT BUMPER ENERGY

main52611-24020iGZ20,MZ2#198601-198801

52711MOULDING, FRONT BUMPER

main52711-24020-02iGZ20198601-198801

RED,RED,3H1

main52711-24020-03iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

GRAY,GRAY,166 ,26A

main52711-24020-05iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BEIGE,BEIGE,040 ,2V0

main52711-24020-08iMZ2#..GTL198601-198801

IVORY,IVORY,040 ,25A

52712MOULDING, FRONT BUMPER SIDE, RH

main52712-24020-02iGZ20198601-198801

RED,RED,3H1

main52712-24020-03iGZ20198601-198801

GRAY,GRAY,166 ,26A

main52712-24020-05iGZ20198601-198801

BEIGE,BEIGE,040 ,2V0

main52712-24030-03iMZ20..GT198601-198801

GRAY,GRAY,166

main52712-24030-05iMZ20..GT198601-198801

BEIGE,BEIGE,040 ,2V0

main52712-24030-08iMZ2#..GTL198601-198801

IVORY,IVORY,040 ,25A

52713PLUG, FRONT BUMPER MOULDING

main52713-24020-02iGZ20198601-198801

RED,RED,3H1

main52713-24020-03iGZ20198601-198801

GRAY,GRAY,166 ,26A

main52713-24020-05iGZ20198601-198801

BEIGE,BEIGE,040 ,2V0

main52713-24030-03iMZ20..GT198601-198801

GRAY,GRAY,166

main52713-24030-05iMZ20..GT198601-198801

BEIGE,BEIGE,040 ,2V0

main52713-24030-08iMZ2#..GTL198601-198801

IVORY,IVORY,040 ,25A

52714PLUG, FRONT BUMPER MOULDING, LH

main52714-24010-02iGZ20..GT,VX,VZ198601-198801

RED,RED,3H1

main52714-24010-03iGZ20,MZ20..GT,VX,VZ198601-198801

GRAY,GRAY,166

main52714-24010-05iGZ20,MZ20..GT,VX,VZ198601-198801

BEIGE,BEIGE,040 ,2V0

main52714-24010-08iMZ2#..GTL198601-198801

IVORY,IVORY,040 ,25A

main52714-24020-02iGZ20..GTT198601-198801

RED,RED,3H1

sub52714-24010

main52714-24020-03iGZ20..GTT198601-198801

GRAY,GRAY,166 ,26A

sub52714-24010

main52714-24020-05iGZ20..GTT198601-198801

BEIGE,BEIGE,040 ,2V0

sub52714-24010

5301

9010512123

main90105-12123

9011906159

main90119-06159

9011912062

main90119-12062

9015960175

main90159-60175

9017905025

main90179-05025

9017906009

main90179-06009

9017906054

main90179-06054

9017912056

main90179-12056

9026903003

main90269-03003

9046709019

main90467-09019

9046709030

main90467-09030

9046804079

main90468-04079

9165540616

main91655-40616

9166540620

main91665-40620

36 parts on this diagram · 1 diagram in section
