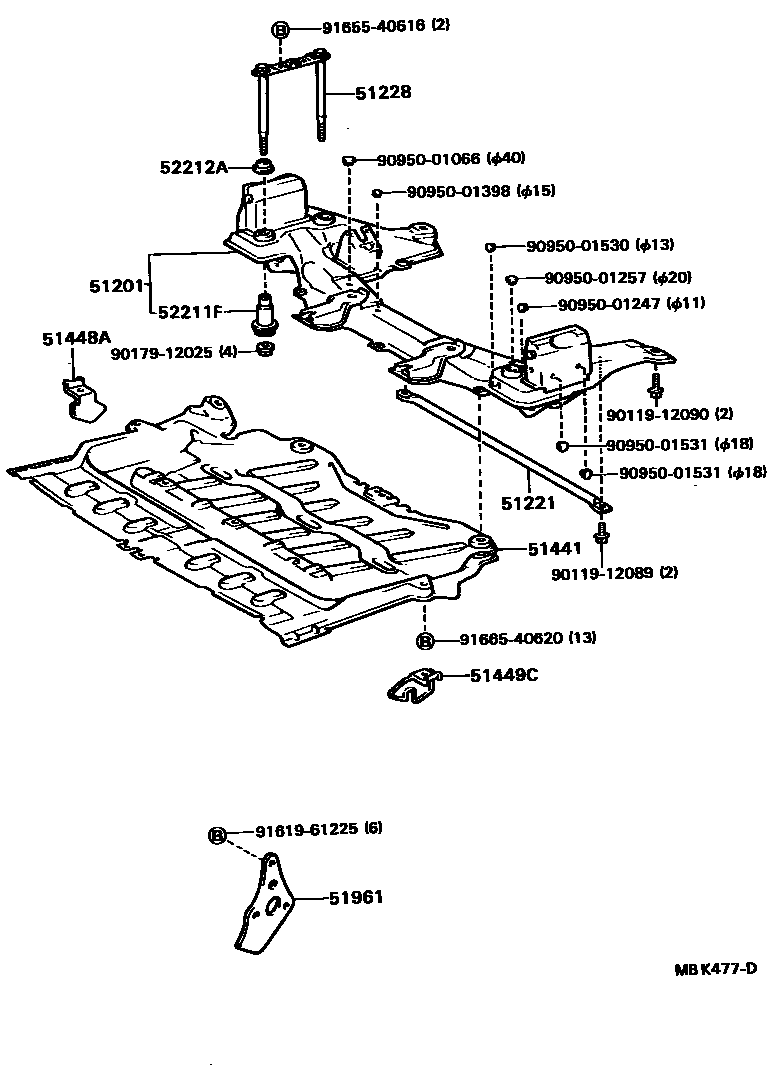

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-14360iGZ20,MZ2#198601-198702

sub51210-14020

main51210-14020iGZ20,MZ2#198702-198801

51221CROSSMEMBER, FRONT SUSPENSION, NO.1

main51221-14010iGZ20,MZ2#198601-198801

sub51221-14012

51228PLATE, SUSPENSION MEMBER SET

main51229-14040iGZ20,MZ2#198601-198801

51441COVER, ENGINE UNDER, NO.1

main51441-24020iGZ20,MZ2#198601-198801

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-14010iGZ20..GT,VX,VZ198601-198801

51449CCOVER, ENGINE SIDE UNDER, LH

main51449-14010iGZ20,MZ2#198601-198801

51961HOOK, NO.1

main51963-14100iGZ20,MZ2#198601-198801

52211FCUSHION, BODY MOUNTING, FRONT UPPER

main52211-14010iGZ20,MZ2#198601-198801

52212ACUSHION, BODY MOUNTING, NO.2

main52212-14010iGZ20,MZ2#198601-198801

9011912089

main90119-12089

9011912090

main90119-12090

9017912025

main90179-12025

9095001066

main90950-01066

9095001247

main90950-01247

9095001257

main90950-01257

9095001398

main90950-01398

9095001530

main90950-01530

9095001531

main90950-01531

9161961225

main91619-61225

9165540616

main91655-40616

9166540620

main91665-40620

21 parts on this diagram · 2 diagrams in section
