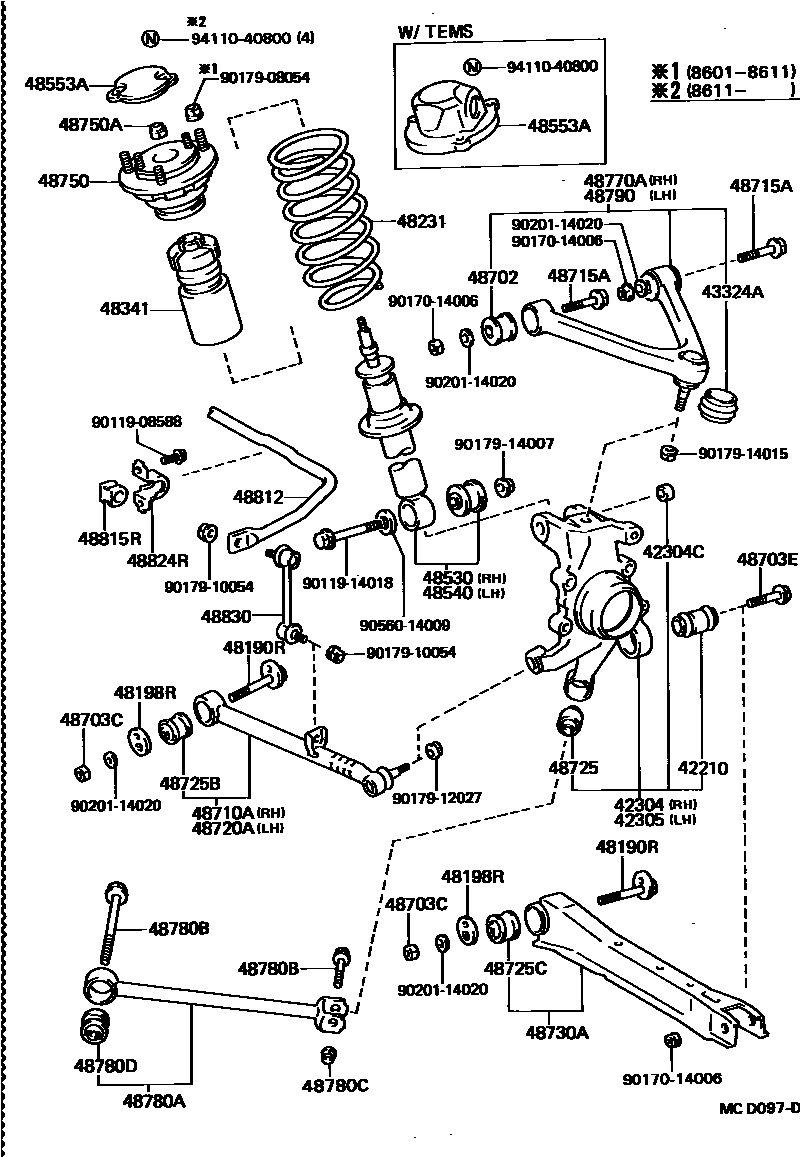

REAR SPRING & SHOCK ABSORBER
42210BUSH ASSY, LOWER BALL
42304CARRIER SUB-ASSY, REAR AXLE, RH
42304CSPACER (FOR REAR AXLE CARRIER)
42305CARRIER SUB-ASSY, REAR AXLE, LH
43324ACOVER, UPPER BALL JOINT DUST
48190RCAM ASSY, CAMBER ADJUST
48198RCAM, REAR SUSPENSION CAMBER ADJUST, NO.2
sub48198-50011
48341BUMPER, REAR SPRING
48530ABSORBER ASSY, SHOCK, REAR RH
sub48530-19035
sub48530-19026
sub48530-19026
sub48530-19045
sub48530-19025
48540ABSORBER ASSY, SHOCK, REAR LH
sub48530-19035
sub48530-19026
sub48530-19026
sub48530-19045
sub48530-19025
48553ACAP, SHOCK ABSORBER
W/TEMS
48702BUSH SUB-ASSY, UPPER CONTROL ARM
48703CNUT(FOR REAR SUSPENSION ARM)
48703EBOLT(FOR REAR SUSPENSION ARM)
sub90119-14035
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)
FR
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48725BUSH, LOWER CONTROL ARM
48725BBUSH, REAR SUSPENSION ARM, NO.1
48725CBUSH, REAR SUSPENSION ARM, NO.2
48730AARM ASSY, REAR SUSPENSION, NO.2
sub48730-14020
48750SUPPORT ASSY, REAR SUSPENSION
sub48750-14011
48750ANUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
sub90177-12002
48770AARM ASSY, UPPER CONTROL, REAR RH
sub48770-19015
48780BBOLT(FOR STRUT ROD)
BODY SIDE
48780CNUT(FOR STRUT ROD)
48780DBUSH, STRUT ROD
48790ARM ASSY, UPPER CONTROL, REAR LH
sub48790-19015
48812BAR, STABILIZER, REAR
48815RBUSH, STABILIZER(FOR REAR)
48824RBRACKET, STABILIZER(FOR REAR)
9011908588
main90119-08588
9011914018
main90119-14018
9017014006
main90170-14006
9017908054
main90179-08054
9017910054
main90179-10054
9017912027
main90179-12027
9017914007
main90179-14007
9017914015
main90179-14015
9020114020
main90201-14020
9056014009
main90560-14009
9411040800
main94110-40800
45 parts on this diagram · 2 diagrams in section
