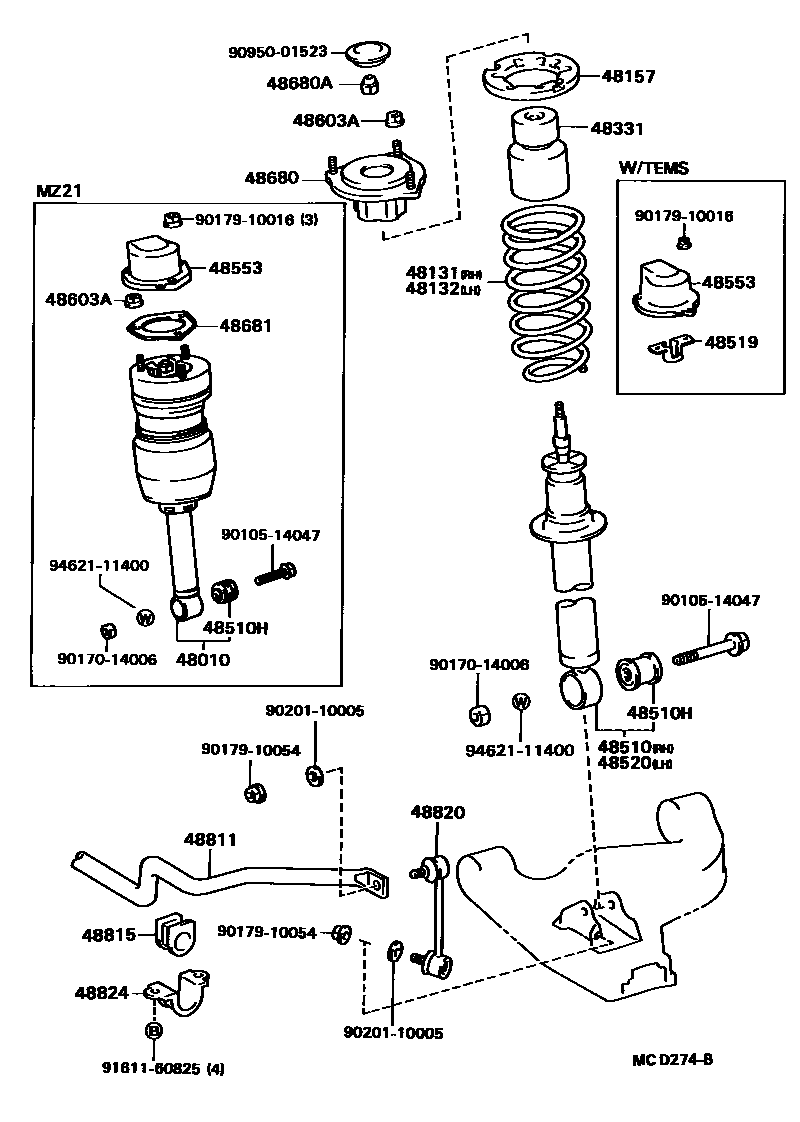

FRONT SPRING & SHOCK ABSORBER
48010CYLINDER ASSY, PNEUMATIC, FRONT RH W/SHOCK ABSORBER
TOKICO
48157INSULATOR, FRONT COIL SPRING, UPPER
48331BUMPER, FRONT SPRING, NO.1
sub48331-14070
48510HBUSH(FOR FRONT SHOCK ABSORBER)
48519BRACKET, ACTUATOR SUPPORT, FRONT
W/ESC
48553CAP, SHOCK ABSORBER, UPPER
RH
LH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
sub90179-10132
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
sub90177-12002
48681SUPPORT, FRONT SUSPENSION, NO.1
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48820LINK ASSY, FRONT STABILIZER
sub48820-24010
48824BRACKET, STABILIZER, FRONT
9010514047
main90105-14047
9017014006
main90170-14006
9017910016
main90179-10016
9017910054
main90179-10054
9020110005
main90201-10005
9095001523
main90950-01523
9161160825
main91611-60825
9462111400
main94621-11400
26 parts on this diagram · 1 diagram in section
