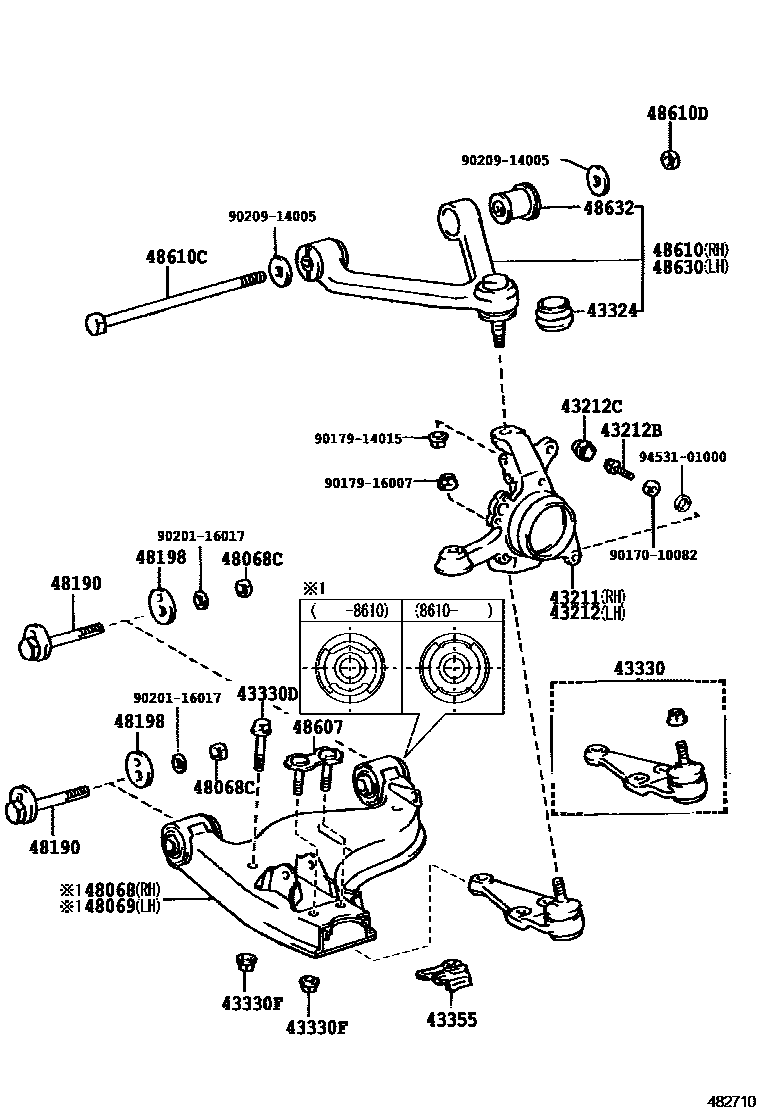

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-14051iMZ2#198601-198801

W/ESC

main43211-14061iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

43212KNUCKLE, STEERING, LH

main43212-14021iMZ2#198601-198801

W/ESC

main43212-14031iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

43212BBOLT (FOR FRONT KNUCKLE STOPPER)

main90106-10002iGZ20,MZ2#198601-198801

43212CCOVER, FRONT KNUCKLE STOPPER

main45619-14020iGZ20,MZ2#198601-198801

43324COVER, UPPER JOINT DUST

main43324-14010iGZ20,MZ2#198601-198801

43330JOINT ASSY, LOWER BALL, FRONT

main43330-19055iGZ20,MZ2#198601-198801

43330DBOLT (FOR FRONT LOWER BALL JOINT)

main90105-14045iGZ20,MZ2#198601-198801

43330FNUT (FOR FRONT LOWER BALL JOINT SETTING)

main90179-14025iGZ20,MZ2#198601-198801

43355DEFLECTOR, LOWER ARM ICE, RH

main43355-14020iGZ20,MZ2#198601-198801

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-14050iGZ20..GTT198601-198801

sub48068-14051

main48068-24020iMZ2#198601-198801

sub48068-24021

48068CNUT(FOR FRONT SUSPENSION LOWER ARM)

main94115-71600iGZ20,MZ2#198601-198801

sub94130-01602

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-14050iGZ20..GTT198601-198801

sub48069-14051

main48069-24020iGZ20,MZ2#..GT,GTL,VX,VZ198601-198801

sub48069-24021

48190CAM ASSY, CAMBER ADJUST

main48190-14020iGZ20,MZ2#198601-198801

RR

main48190-14030iGZ20,MZ2#198601-198801

FR

48198CAM, CAMBER ADJUST, NO.2

main48198-14020iGZ20,MZ2#198601-198801

RR

main48198-14030iGZ20,MZ2#198601-198801

FR

48607PLATE SUB-ASSY, LOWER ARM ATTACHMENT

main48607-14011iGZ20,MZ2#198601-198801

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-14010iGZ20,MZ2#198601-198801

sub48610-19015

48610CBOLT(FOR SUSPENSION UPPER ARM)

main90101-14029iGZ20,MZ2#198601-198801

48610DNUT(FOR SUSPENSION UPPER ARM)

main90170-14006iGZ20,MZ2#198601-198801

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-14010iGZ20,MZ2#198601-198801

sub48630-19015

48632BUSH, UPPER ARM

main48632-14010iGZ20,MZ2#198601-198801

9017010082

main90170-10082

9017914015

main90179-14015

9017916007

main90179-16007

9020116017

main90201-16017

9020914005

main90209-14005

9453101000

main94531-01000

26 parts on this diagram · 1 diagram in section
