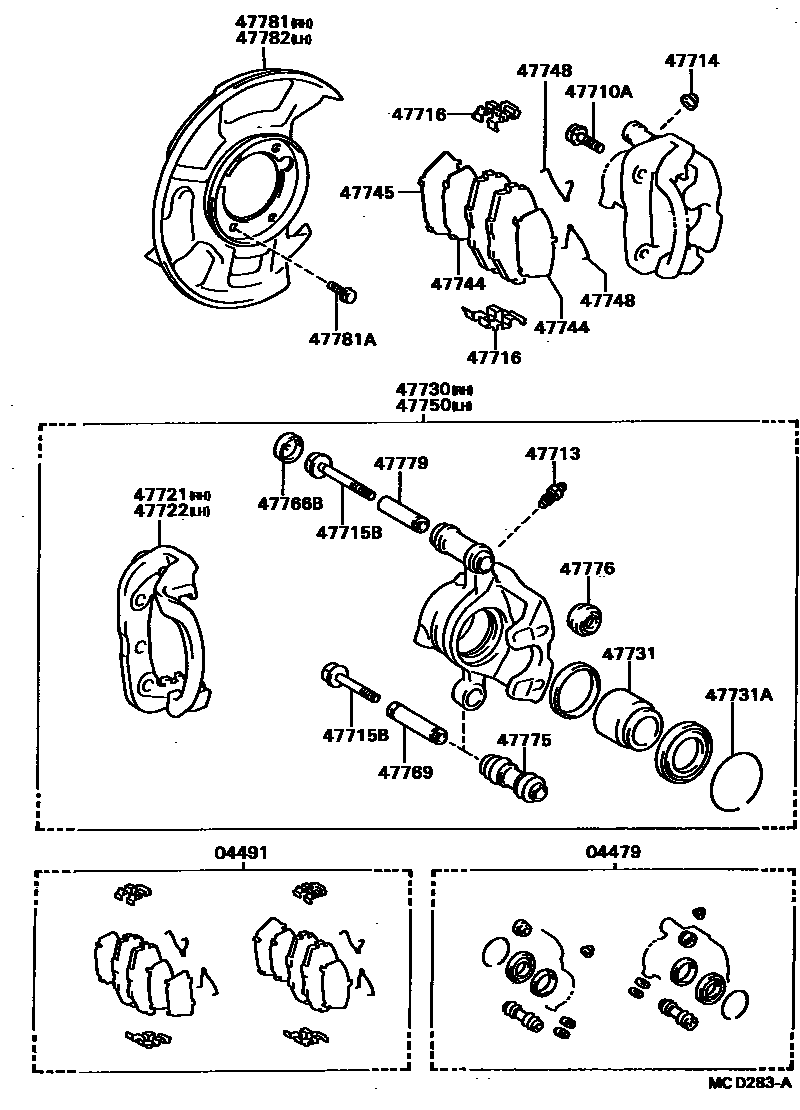

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-14100iGZ20,MZ2#198601-198801

04491PAD KIT, DISC BRAKE, FRONT

main04491-14190iGZ20..GT,VX,VZ198601-198602

sub04491-14220

main04491-14200iGZ20..GTT198601-198801

sub04491-14201

main04491-14220iGZ20..GT,VX,VZ198602-198801

sub04491-14221

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12058iGZ20,MZ2#198601-198801

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iGZ20,MZ2#198601-198801

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iGZ20,MZ2#198601-198801

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-10141iGZ20,MZ2#198601-198801

UPR,*10-1.25PX65.5-14

main90119-10403iGZ20,MZ2#198601-198801

LWR,*10-1.25PX65-20

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-14110iGZ20..GT,VX,VZ198601-198801

main47716-14120iGZ20..GTT198601-198801

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-14090iGZ20..GT,VX,VZ198601-198801

main47721-14100iGZ20..GTT198601-198801

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-14090iGZ20..GT,VX,VZ198601-198801

main47721-14100iGZ20..GTT198601-198801

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-14160iGZ20..GT,VX,VZ198601-198801

main47730-14170iGZ20..GTT198601-198801

47731PISTON, FRONT DISC BRAKE

main47731-28020iGZ20,MZ2#198601-198801

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-67001iGZ20,MZ2#198601-198801

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-14100iGZ20,MZ2#198601-198706

main47744-14120iGZ20,MZ2#198706-198801

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-14030iGZ20,MZ2#198601-198706

main47745-14050iGZ20,MZ2#198706-198801

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-14070iGZ20..GTT198601-198801

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-14180iGZ20..GT,VX,VZ198601-198801

main47750-14190iGZ20..GTT198601-198801

47766BCAP, CYLINDER SLIDE PIN

main47766-14010iGZ20,MZ2#198601-198801

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-28020iGZ20,MZ2#198601-198801

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-28010iGZ20,MZ2#198601-198602

sub47775-28020

main47775-28020iGZ20,MZ2#198602-198801

47776BOOT, MAIN PIN(FOR FRONT DISC BRAKE)

main47776-14020iGZ20,MZ2#198601-198701

main47776-20010iGZ20,MZ2#198701-198801

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-14020iGZ20,MZ2#198601-198801

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-14100iGZ20,MZ2#198601-198801

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-08571iGZ20,MZ2#198601-198801

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-14100iGZ20,MZ2#198601-198801

24 parts on this diagram · 2 diagrams in section
