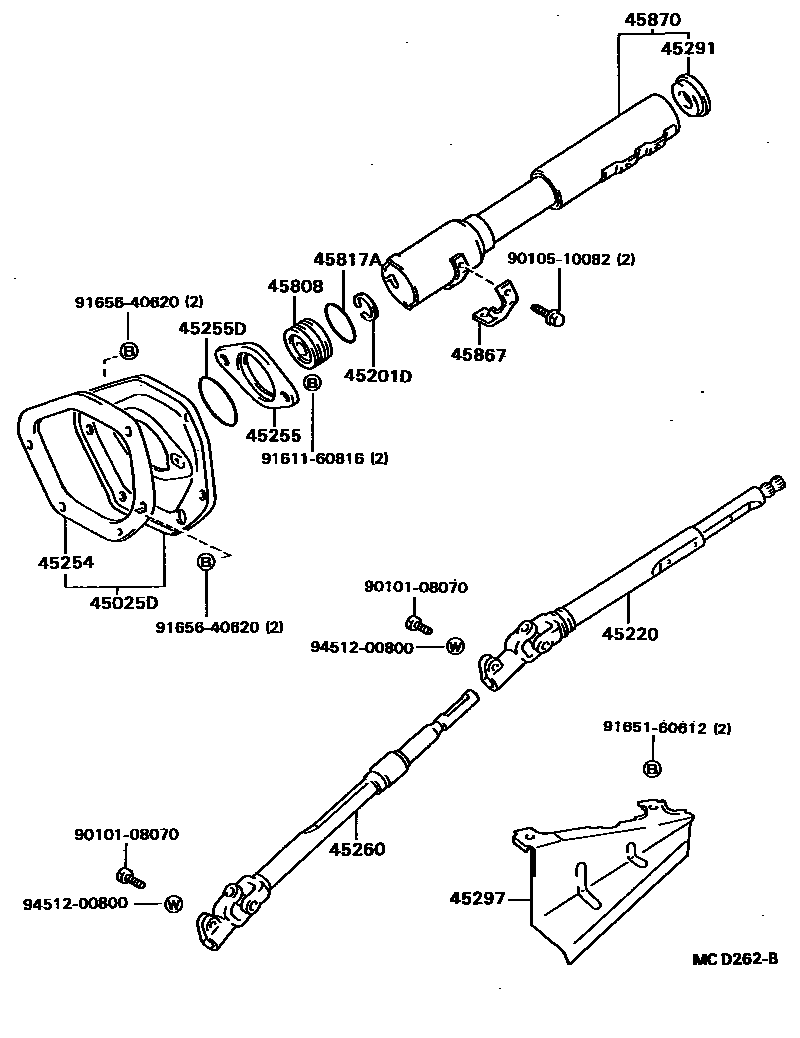

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-14150iGZ20,MZ2#198601-198801

45201DRING(FOR STEERING MAIN SHAFT)

main96152-00300iGZ20..GTT,VX,VZ198601-198801

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-14180iGZ20..GTT,VX,VZ198601-198801

main45220-24040iGZ20,MZ2#..GT,GTL198601-198801

main45220-24040iGZ20..GTT198701-198801

LUXURY PACKAGE

45254SHIELD, STEERING COLUMN HOLE

main45254-14050iGZ20,MZ2#198601-198801

45255PLATE, STEERING COLUMN HOLE COVER

main45255-12030iGZ20,MZ2#198601-198801

45255DRING, O(FOR STEERING COLUMN HOLE COVER PLATE)

main90301-59001iGZ20,MZ2#198601-198801

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-14230iGZ20,MZ2#198601-198801

sub45260-14240

main45260-14240iGZ20..GTT198701-198801

main45260-14280iMZ2#198701-198801

45291SEAL, MAIN SHAFT UPPER DUST

main45282-22010iGZ20,MZ2#198601-198801

45297INSULATOR, STEERING YOKE HEAT

main45297-14030iGZ20,MZ2#198601-198801

sub45297-14060

45808STOPPER SUB-ASSY, STEERING SHAFT THRUST

main45808-12030iGZ20,MZ2#198601-198801

45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)

main96711-24053iGZ20,MZ2#198601-198801

45867RETAINER, STEERING MAIN SHAFT STOPPER

main45867-12010iGZ20,MZ2#198601-198801

45870TUBE ASSY, STEERING COLUMN

main45870-24040iGZ20,MZ2#..GT,GTL198601-198801

main45870-24040iGZ20..GTT198701-198801

LUXURY PACKAGE

main45870-24050iGZ20..GTT,VX,VZ198601-198801

9010108070

main90101-08070

9010510082

main90105-10082

9161160816

main91611-60816

9165160612

main91651-60612

9165640620

main91656-40620

9451200800

main94512-00800

19 parts on this diagram · 4 diagrams in section
