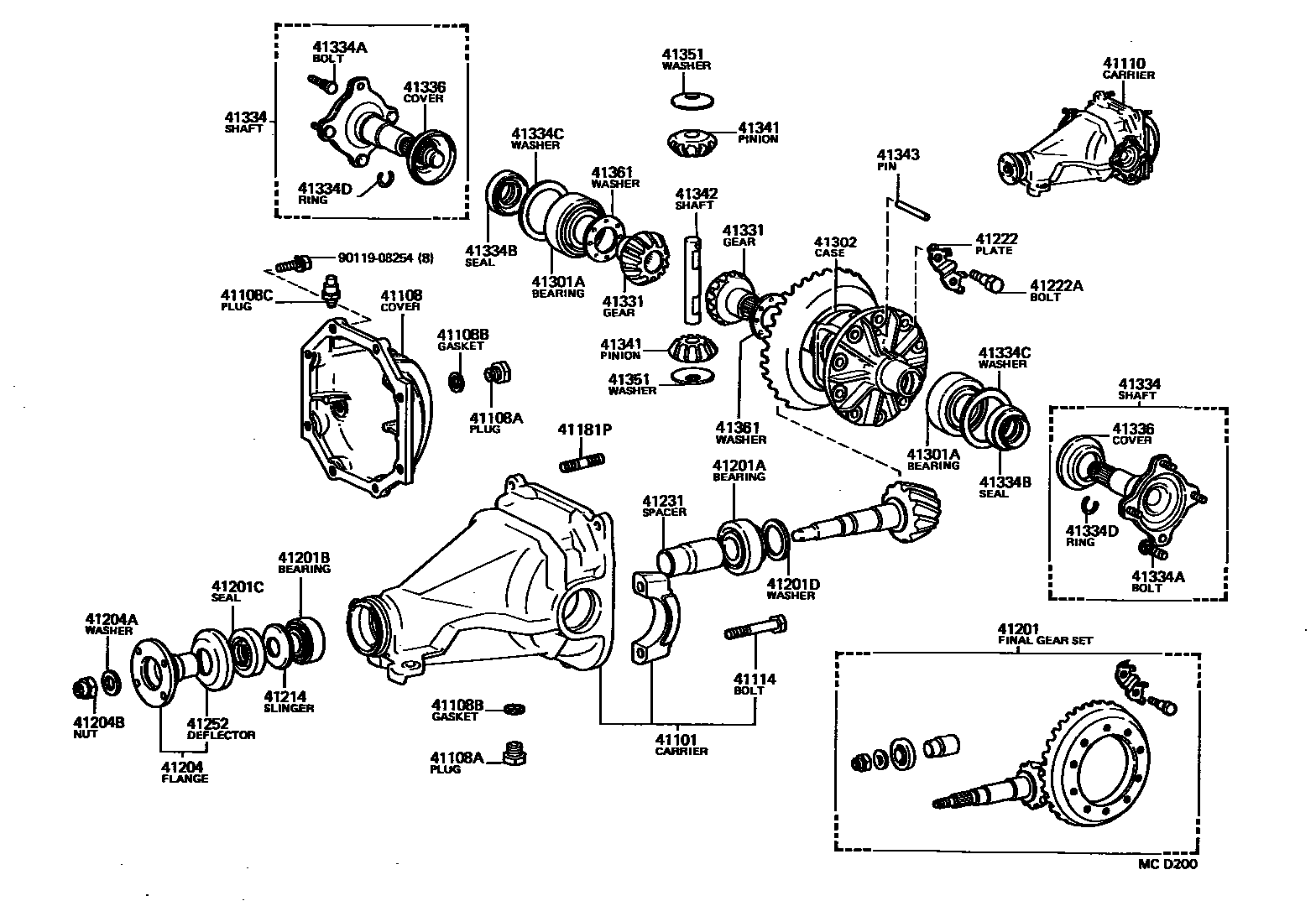

REAR AXLE HOUSING & DIFFERENTIAL
41108APLUG (FOR REAR DIFFERENTIAL CARRIER COVER)
FILLER
DRAIN
41108BGASKET (FOR REAR DIFFERENTIAL CARRIER COVER)
41108CPLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER)
41114BOLT, REAR DIFFERENTIAL BEARING CAP
41181PBOLT (FOR REAR DIFFERENTIAL CARRIER COVER SETTING)
L=71.5
L=81.5
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
sub41201-19556
sub41201-29606
sub41201-39735
sub41201-39725
sub41201-39815
sub41201-80004
sub41201-39736
sub41201-80003
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
sub90201-35515
sub90201-35516
sub90201-35517
sub90201-35518
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204AWASHER, PLATE (FOR REAR DRIVE PINION)
41204BNUT (FOR REAR DRIVE PINION)
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41302CASE SUB-ASSY, REAR DIFFERENTIAL
W/LSD
41334SHAFT, REAR DIFFERENTIAL SIDE GEAR
W/LSD
41334ABOLT, SERRATION (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41334DRING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41336COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41342SHAFT, REAR DIFFERENTIAL PINION
sub41342-22021
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
sub41361-60E10
sub41361-60E50
sub41361-60E90
sub41361-60F30
sub41361-60F70
sub41361-28130
sub41361-28140
sub41361-28150
sub41361-28160
sub41361-28170
sub41361-28180
sub41361-28190
sub41361-28200
sub41361-28210
sub41361-28220
9011908254
main90119-08254
36 parts on this diagram · 4 diagrams in section
