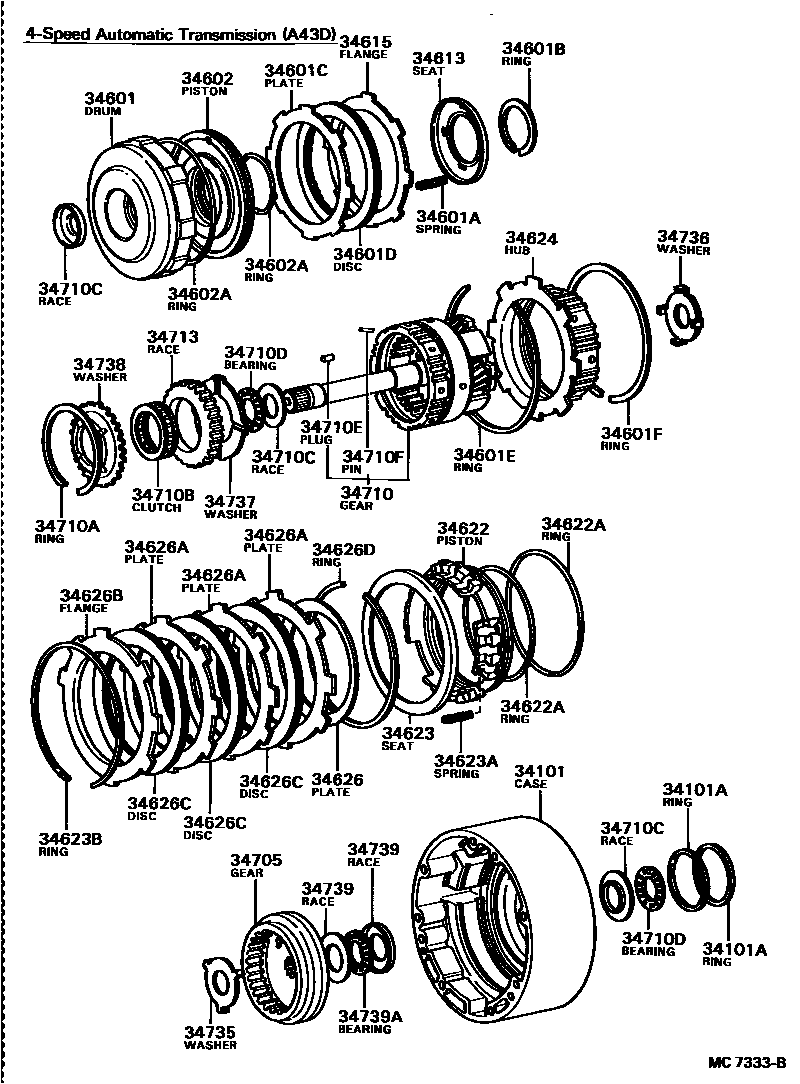

OVERDRIVE GEAR (ATM)

0001 1 0002 1

34101CASE SUB-ASSY, OVERDRIVE

main34101-30062iGZ20..4FC..(GT,VX,VZ)198601-198801

sub34101-22020

sub35617-43010

34101ARING, OIL SEAL (FOR OVERDRIVE CASE)

main35617-16010iGZ20..4FC..(GT,VX,VZ)198601-198801

34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34601-30022iGZ20..4FC..(GT,VX,VZ)198601-198801

main34601-30030iGZ20..4FC..GTT198601-198801

34601ASPRING, COMPRESSION (FOR OVERDRIVE DIRECT CLUTCH)

main90501-11023iGZ20..4FC..(GT,VX,VZ)198601-198801

34601BRING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH)

main90520-52262iGZ20..4FC..(GT,VX,VZ)198601-198801

34601CPLATE, CLUTCH (FOR OVERDRIVE)

main34618-30010iGZ20..4FC..(GT,VX,VZ)198601-198801

34601DDISC, CLUTCH (FOR OVERDRIVE)

main35677-30030iGZ20..4FC..(GT,VX,VZ)198601-198801

sub35677-30160

34601ERING, HOLE SNAP, NO.1 (FOR OVERDRIVE)

main90521-99146iGZ20..4FC..(GT,VX,VZ)198601-198801

34601FRING, HOLE SNAP, NO.2 (FOR OVERDRIVE)

main90521-99001iGZ20..4FC..(GT,VX,VZ)198601-198801

34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34602-30020iGZ20..4FC..GTT198601-198801

main34602-30030iGZ20..4FC..(GT,VX,VZ)198601-198801

34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

main90301-57188iGZ20..4FC..(GT,VX,VZ)198601-198801

OD=59.4,ID=56.8

main90301-65005iGZ20..4FC..GTT198601-198801

INNER,ID=65

sub90301-65006

main90301-99016iGZ20..4FC..(GT,VX,VZ)198601-198801

OD=125.1,ID=122.5

main90301-99036iGZ20..4FC..GTT198601-198801

OUTER,ID=112.5

sub90301-99086

34613SEAT, OVERDRIVE DIRECT CLUTCH RETURN SPRING

main34613-30010iGZ20..4FC..(GT,VX,VZ)198601-198801

34615FLANGE, OVERDRIVE CLUTCH

main34615-30020iGZ20..4FC..GTT198601-198801

sub34615-50050

main34615-30030iGZ20..4FC..GTT198601-198801

sub34615-50040

main34615-30040iGZ20..4FC..GTT198601-198801

sub34615-50030

main34615-30050iGZ20..4FC..GTT198601-198801

sub34615-22030

main34615-30060iGZ20..4FC..GTT198601-198801

sub34615-22020

main34615-30070iGZ20..4FC..GTT198601-198801

sub34615-22010

main35675-22010iGZ20..4FC..(GT,VX,VZ)198601-198801

sub35675-22140

34622PISTON, OVERDRIVE BRAKE

main34622-14010iMZ2#..4FC198601-198801

main34622-30030iGZ20..4FC..GTT198601-198801

main34622-30040iGZ20..4FC..(GT,VX,VZ)198601-198801

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

main90301-99008iGZ20..4FC..(GT,VX,VZ)198601-198801

ID=108.45-109.95

sub90301-99103

main90301-99009iGZ20..4FC..(GT,VX,VZ)198601-198801

ID=123,23-125.23

sub90301-99111

main90301-99035iGZ20..4FC..GTT198601-198801

INNER,ID=131.6

sub90301-99087

main90301-99037iGZ20..4FC..GTT198601-198801

OUTER,ID=145.6

34623SEAT, OVERDRIVE BRAKE RETURN SPRING

main34623-30020iGZ20..4FC..(GT,VX,VZ)198601-198801

34623ASPRING, COMPRESSION (FOR OVERDRIVE BRAKE RETURN SPRING SEAT)

main90501-10671iGZ20..4FC..(VX,VZ)198601-198712

main90501-11023iGZ20..4FC..GTT198601-198801

34623BRING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING SEAT)

main90521-99004iGZ20..4FC..(GT,VX,VZ)198601-198801

34624HUB, OVERDRIVE BRAKE

main34624-32010iGZ20..4FC..(GT,VX,VZ)198601-198801

sub34624-26010

34626PLATE, OVERDRIVE BRAKE CUSHION

main34626-30050iGZ20..4FC..(GT,VX,VZ)198601-198801

34626APLATE, CLUTCH (FOR OVERDRIVE)

main34634-30010iGZ20..4FC..GT198601-198801

T=2.3

main35634-30080iGZ20..4FC..(GT,VX,VZ)198601-198801

T=2.0

34626BFLANGE, REAR CLUTCH (FOR OVERDRIVE)

main34625-26010iGZ20..4FC..(GT,VX,VZ)198601-198801

sub34625-22020

34626CDISC, CLUTCH (FOR OVERDRIVE)

main35677-30040iGZ20..4FC..(GT,VX,VZ)198601-198801

sub35677-43010

34626DRING, HOLE SNAP (FOR OVERDRIVE)

main90521-99004iGZ20..4FC..(GT,VX,VZ)198601-198801

34705GEAR SUB-ASSY, OVERDRIVE PLANETARY RING

main34705-30020iGZ20..4FC..(GT,VX,VZ)198601-198608

sub34705-30021

main34705-30021iGZ20..4FC..(GT,VX,VZ)198608-198801

34710GEAR ASSY, OVERDRIVE PLANETARY

main34710-14011iGZ20..4FC..(GT,VX,VZ)198601-198801

main34710-30030iGZ20..4FC..GTT198601-198801

sub34710-30031

sub34732-22011

sub35789-30052

sub90374-31008

34710ARING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR)

main90521-99003iGZ20..4FC..(GT,VX,VZ)198601-198801

34710BCLUTCH, 1WAY, NO.1(FOR OVERDRIVE)

main35791-30030iGZ20..4FC..(GT,VX,VZ)198601-198801

34710CRACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR)

main34739-30031iGZ20..4FC..(GT,VX,VZ)198601-198801

CTR

main34739-30041iGZ20..4FC..(GT,VX,VZ)198601-198801

FR

main35789-22010iGZ20..4FC..(GT,VX,VZ)198601-198801

RR

main35789-30050iGZ20..4FC..GTT198601-198801

34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)

main90374-23012iGZ20..4FC..(GT,VX,VZ)198601-198801

RR

main90374-24001iGZ20..4FC..(GT,VX,VZ)198601-198801

CTR

main90374-25005iGZ20..4FC..GTT198601-198801

RR

main90374-28008iGZ20..4FC..GTT198601-198801

FR

34710EPLUG, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR)

main90334-03001iGZ20..4FC..(GT,VX,VZ)198601-198801

34710FPIN, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR)

main90250-03024iGZ20..4FC..(GT,VX,VZ)198601-198801

34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)

main34713-30020iGZ20..4FC..(GT,VX,VZ)198601-198801

main34713-32010iMZ2#198601-198801

34735WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1

main34735-30010iGZ20..4FC..(GT,VX,VZ)198601-198608

main34735-30020iGZ20..4FC..(GT,VX,VZ)198608-198801

34736WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2

main34736-30010iGZ20..4FC..(GT,VX,VZ)198601-198801

34737WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3

main34737-30020iGZ20..4FC..(GT,VX,VZ)198601-198801

main34737-30030iGZ20..4FC..GTT198601-198801

34738WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.4

main34738-30020iGZ20..4FC..(GT,VX,VZ)198601-198801

34739RACE, THRUST BEARING(FOR OVERDRIVE)

main34739-30020iGZ20..4FC..(GT,VX,VZ)198601-198801

FR

main35789-22030iGZ20..4FC..(GT,VX,VZ)198601-198801

RR

34739ABEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE)

main90374-28014iGZ20..4FC..(GT,VX,VZ)198601-198801

39 parts on this diagram · 2 diagrams in section
