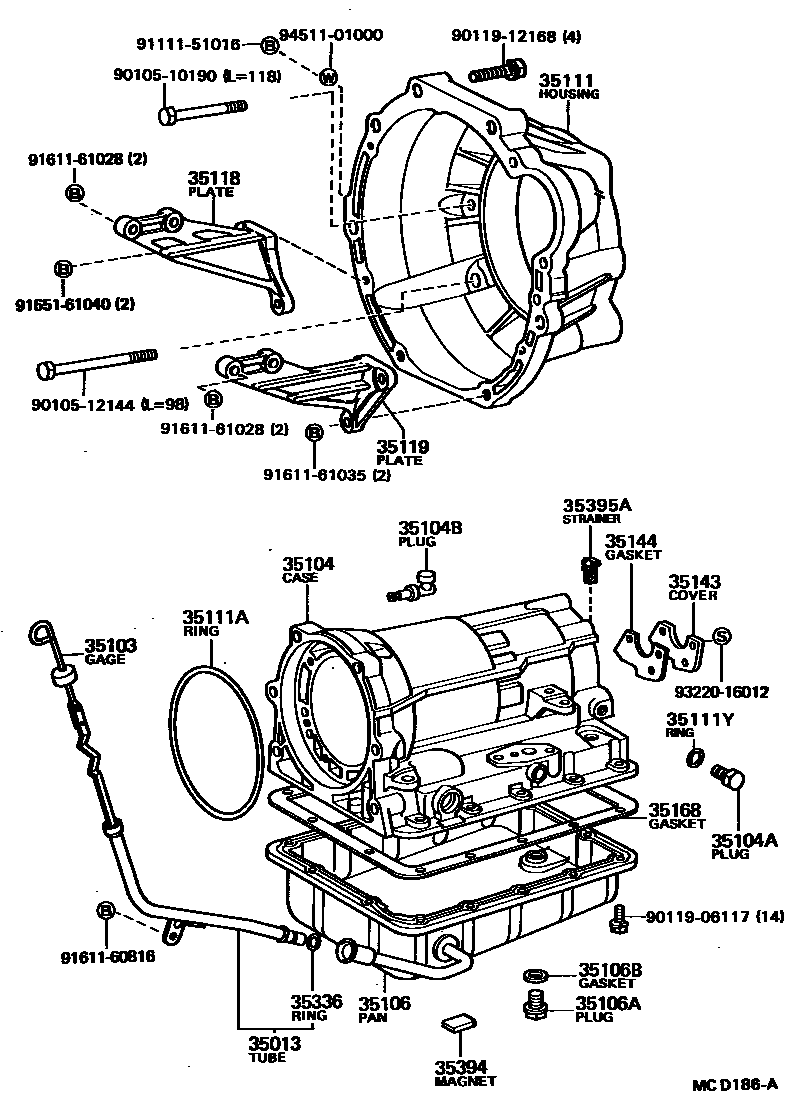

TRANSMISSION CASE & OIL PAN (ATM)

0001 1 0002 1 0003 1

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-14120iMZ2#..4FC198601-198801

main35013-22120iGZ20..4FC..(VX,VZ)198601-198801

main35013-24020iGZ20..4FC..GTT198601-198709

main35013-24030iGZ20..4FC..GTT198709-198801

main35013-30110iGZ20..4FC..GT198601-198710

main35013-30220iGZ20..4FC..GT198710-198801

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-24010iGZ20..4FC..GTT198601-198709

main35103-24020iGZ20..4FC..GTT198709-198801

sub35103-22140

main35103-30111iGZ20..4FC..GT198601-198710

main35103-30131iGZ20..4FC..(VX,VZ)198601-198801

main35103-30150iMZ2#..4FC198601-198801

main35103-30250iGZ20..4FC..GT198710-198801

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-26021iGZ20..4FC..(VX,VZ)198601-198801

main35104-30101iGZ20..4FC..GT198601-198801

main35104-30132iMZ2#198601-198604

sub35104-30133

main35104-30133iGZ20..4FC..GTT198604-198801

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001iGZ20,MZ2#..4FC198601-198801

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03069iGZ20..4FC..(VX,VZ)198601-198801

main90930-03108iMZ2#..4FC198608-198801

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-30050iGZ20..4FC..(GT,VX,VZ)198601-198801

sub35106-30051

main35106-30070iMZ2#..4FC198601-198703

sub35106-30100

main35106-30100iMZ2#..4FC198703-198801

sub35106-30101

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iGZ20,MZ2#..4FC198601-198801

sub90341-10011

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iGZ20,MZ2#..4FC198601-198801

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-24010iGZ20..4FC..(GT,VX,VZ)198601-198801

main35111-24020iMZ2#..4FC198601-198710

sub35111-24021

main35111-24021iMZ2#..4FC198710-198801

main35111-24031iGZ20..4FC..GTT198601-198801

sub35111-22100

35111ARING, O (FOR AUTOMATIC TRANSMISSION HOUSING)

main90301-99006iGZ20..4FC..(GT,VX,VZ)198601-198708

sub90301-99054

main90301-99054iGZ20..4FC..(GT,VX,VZ)198708-198801

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196iGZ20,MZ2#..4FC198601-198801

35118PLATE, STIFENER, RH (ATM)

main33118-14050iMZ2#..4FC198608-198801

main33118-22050iGZ20..4FC198601-198604

sub33118-22051

main33118-22051iGZ20..4FC198604-198801

main33118-30031iMZ2#198601-198608

35119PLATE, STIFENER, LH (ATM)

main33119-22030iMZ2#..4FC198601-198801

main33119-22041iGZ20..4FC198601-198604

sub33119-22042

main33119-22042iGZ20..4FC198604-198801

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iGZ20..4FC..(GT,VX,VZ)198601-198801

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-22010iGZ20..4FC..(GT,VX,VZ)198601-198801

sub35144-28010

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22011iGZ20..4FC..(GT,VX,VZ)198601-198801

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iGZ20,MZ2#..4FC198601-198801

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iGZ20,MZ2#..4FC198601-198801

35395ASTRAINER, GOVERNOR OIL

main35395-40010iGZ20..4FC..(VX,VZ)198601-198801

9010510190

main90105-10190

9010512144

main90105-12144

9011906117

main90119-06117

9011912168

main90119-12168

9111151016

main91111-51016

9161160816

main91611-60816

9161161028

main91611-61028

9161161035

main91611-61035

9165161040

main91651-61040

9322016012

main93220-16012

9451101000

main94511-01000

30 parts on this diagram · 3 diagrams in section
