GEAR SHIFT FORK & LEVER SHAFT (MTM)

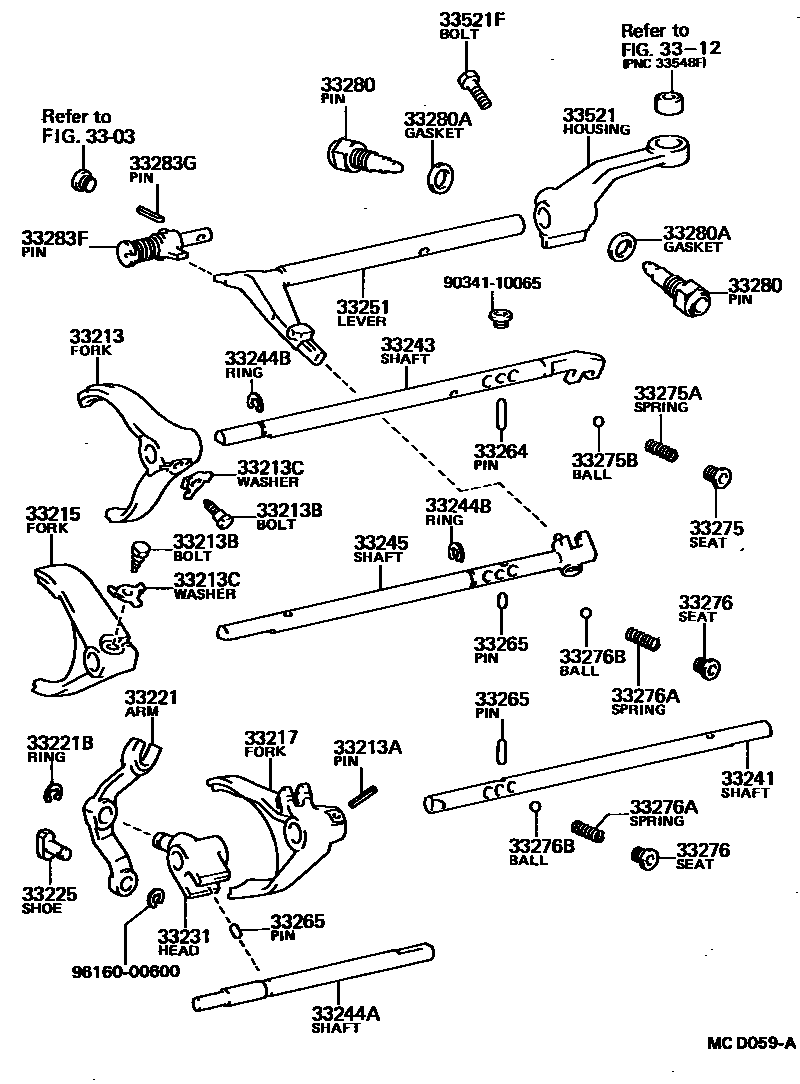

Parts diagram
3303
3312
33213FORK, 1ST & 2ND SHIFT
main33212-22020i198601-198801
sub33212-30050
main33212-35031i198701-198801
sub33212-35032
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
main90254-05001i198701-198801
main90254-05016i198601-198801
33213BBOLT(FOR SHIFT FORK SET)
main90105-06077i198701-198801
main90113-06005i198601-198801
sub90105-06143
33213CWASHER, LOCK(FOR SHIFT FORK SET)
main90215-09002i198601-198801
33215FORK, 3RD & 4TH SHIFT
main33213-22030i198601-198801
sub33213-22040
main33213-35040i198701-198801
33217FORK, 5TH & REVERSE SHIFT
main33214-22030i198601-198801
33221ARM, REVERSE SHIFT
main33221-22011i198601-198801
main33221-35030i198701-198801
33221BRING, E(FOR REVERSE SHIFT ARM)
main96160-01000i198601-198801
33225SHOE, SHIFT ARM
main33225-22011i198601-198801
main33225-35040i198701-198801
33231HEAD, REVERSE SHIFT
main33231-22011i198601-198801
main33231-35060i198701-198801
33241SHAFT, REVERSE SHIFT FORK
main33244-22020i198601-198801
main33244-35040i198701-198801
sub33244-60040
33243SHAFT, 1ST & 2ND SHIFT FORK
main33242-22020i198601-198801
main33242-35030i198701-198801
33244ASHAFT, 5TH SHIFT FORK
main33245-22010i198601-198801
main33245-35050i198701-198801
33244BRING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
main90520-12003i198601-198801
33245SHAFT, 3RD & 4TH SHIFT FORK
main33240-22020i198601-198801
sub33240-22021
main33243-35070i198701-198801
33251LEVER, SHIFT & SELECT
main33251-14020i198701-198801
main33251-22050i198601-198801
sub33251-22051
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
main33264-22010i198601-198801
main90360-10003i198701-198801
main90361-10003i198701-198801
33265PIN, SHIFT INTERLOCK, NO.2
main33265-22010i198601-198801
main33266-22010i198601-198801
main90250-05029i198701-198801
main90250-06007i198601-198801
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
main90341-12004i198601-198710
main90341-12008i198701-198801
main90341-12014i198710-198801
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
main90501-13004i198601-198801
sub90501-14123
main90501-14096i198701-198801
33275BBALL, SHAFT DETENT
main90360-10003i198601-198801
33276SEAT, SHIFT DETENT BALL SPRING, NO.2
main90341-12005i198601-198801
sub90341-12018
main90341-12008i198701-198801
33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
main90501-10061i198701-198801
main90501-13004i198601-198801
sub90501-14123
33276BBALL, SHIFT DETENT, NO.2
main90360-10003i198601-198801
33280PIN ASSY, REVERSE RESTRICT
main33280-14020i198701-198801
LH
sub33280-35080
main33280-14030i198701-198801
RH
sub33280-35090
main33280-22020i198601-198801
RH
main33280-22030i198601-198801
LH
33280AGASKET, REVERSE RESTRICT PIN
main90430-18008i198601-198801
33283FPIN, REVERSE RESTRICT
main33280-14010i198701-198801
main33280-22010i198601-198801
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
main90254-05001i198701-198801
main90254-05016i198601-198801
33521HOUSING, SHIFT LEVER
main33502-22180i198601-198801
main33521-14100i198701-198801
33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)
main90105-08079i198601-198801
9034110065
main90341-10065
9616000600
main96160-00600

34 parts on this diagram · 2 diagrams in section
