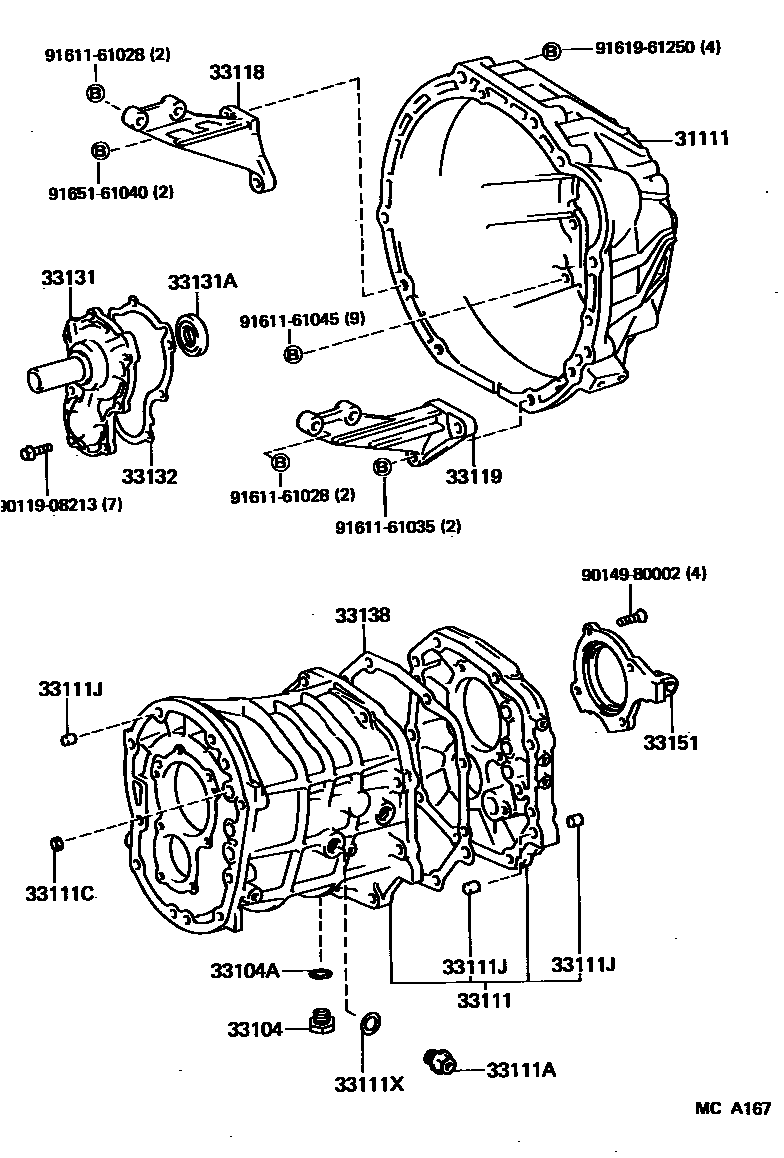

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1

31111HOUSING, CLUTCH

main31111-14100iMZ2#..5F198701-198801

main31111-22130iGZ20..5F198601-198801

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iMZ2#..5F198701-198801

main90341-18057iGZ20..5F198601-198801

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iGZ20,MZ2#..5F198601-198801

33111CASE, MANUAL TRANSMISSION

main33101-22030iGZ20..5F198601-198801

sub33101-22031

main33101-35030iMZ2#..5F198701-198801

sub33101-35031

sub90341-16014

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iGZ20..5F198601-198801

main90341-18026iMZ2#..5F198701-198801

sub90341-18019

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004×4iGZ20,MZ2#..5F198601-198801

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002×6iGZ20,MZ2#..5F198601-198801

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iGZ20..5F198601-198801

33118PLATE, STIFFENER, RH(MTM)

main33118-14050iMZ2#..5F198701-198801

main33118-22050iGZ20..5F198601-198604

main33118-22051iGZ20..5F198604-198801

33119PLATE, STIFFENER, LH(MTM)

main33119-14070iMZ2#..5F198701-198801

main33119-22041iGZ20..5F198601-198604

main33119-22042iGZ20..5F198604-198801

33131RETAINER, BEARING, FRONT(MTM)

main33131-22020iGZ20..5F198601-198801

sub33131-22021

main33131-35030iMZ2#..5F198701-198801

sub33131-35031

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30115iGZ20..5F198601-198801

main90311-32012iMZ2#..5F198701-198801

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-22010iGZ20..5F198601-198801

33138GASKET, INTERMEDIATE PLATE

main33142-22010iGZ20..5F198601-198801

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-22010iGZ20..5F198601-198801

main33151-35020iMZ2#..5F198701-198801

9011908213

main90119-08213

9014980002

main90149-80002

9161161028

main91611-61028

9161161035

main91611-61035

9161161045

main91611-61045

9161961250

main91619-61250

9165161040

main91651-61040

22 parts on this diagram · 2 diagrams in section
