CLUTCH MASTER CYLINDER

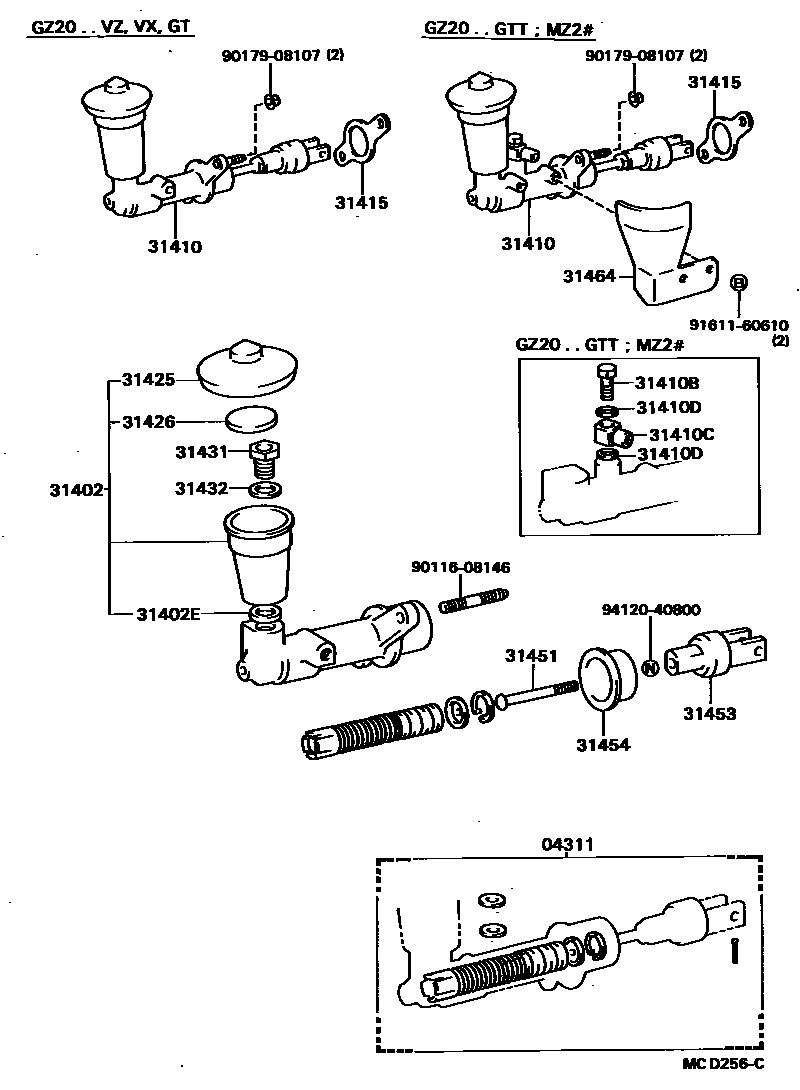

Parts diagram
04311CYLINDER KIT, CLUTCH MASTER
main04311-14020i198601-198612
main04311-14040i198612-198704
main04311-14041i198704-198801
main04311-32030i198704-198801
31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER
main31402-14010i198601-198801
main31402-14020i198601-198801
31402ERING(FOR CLUTCH MASTER CYLINDER RESERVOIR)
main90562-18151i198601-198801
31410CYLINDER ASSY, CLUTCH MASTER
main31410-14190i198601-198612
main31410-14191i198612-198704
main31410-14192i198704-198801
main31410-14210i198601-198704
main31410-14211i198612-198704
main31410-14212i198704-198801
31410BBOLT, UNION(FOR CLUTCH MAS CYLINDER TO FLEXIBLE HOSE TUBE)
main90401-10012i198601-198801
31410CUNION(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)
main90405-10165i198601-198801
31410DGASKET(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)
main90430-10074i198601-198801
31415GASKET, CLUTCH MASTER CYLINDER
main31415-14020i198601-198605
31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER
main47230-20040i198601-198801
31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR
main31426-30011i198601-198801
31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET
main47231-20010i198601-198801
main47231-30010i198601-198801
31432WASHER, CLUTCH RESERVOIR SET BOLT
main47232-30010i198601-198801
31451ROD, CLUTCH MASTER CYLINDER PUSH
main31451-22070i198608-198801
main31451-30060i198601-198608
31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
main31404-14010i198601-198801
31454BOOT, CLUTCH MASTER CYLINDER
main31454-14020i198601-198801
31464INSULATOR, CLUTCH MASTER CYLINDER HEAT
main31464-14010i198601-198801
9011608146
9017908107
9161160610
9412040800

20 parts on this diagram · 1 diagram in section
