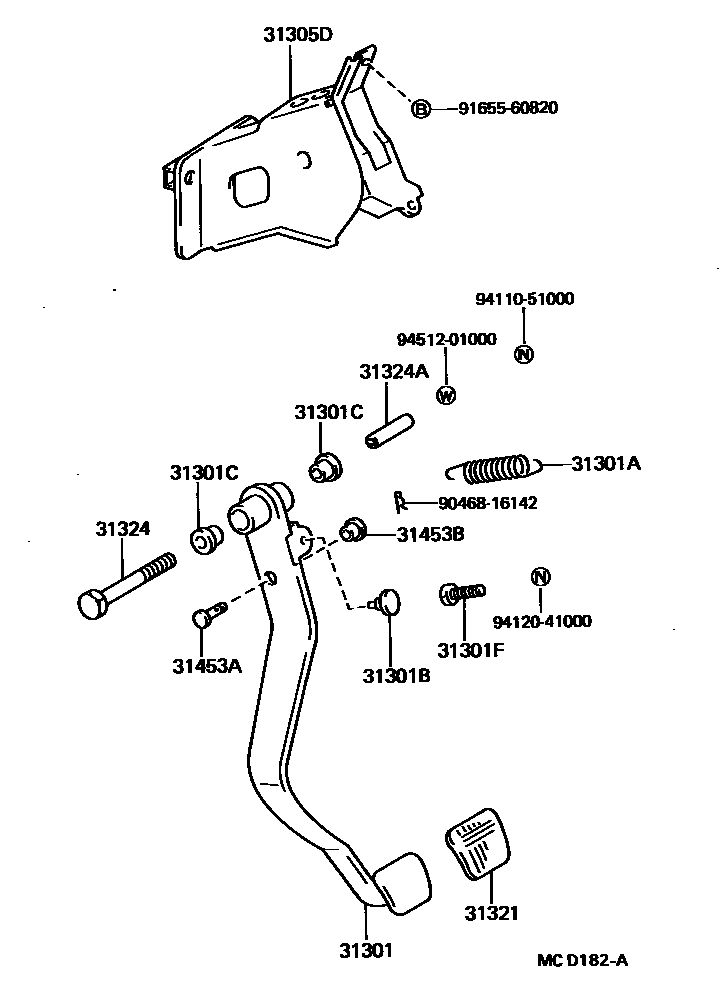

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-14100iGZ20..5F..(GT,VX,VZ)198601-198801

main31310-14020iGZ20..5F..GTT198601-198801

31301ASPRING(FOR CLUTCH PEDAL)

main90501-45029iMZ2#..5F198601-198801

main90507-14003iGZ20..5F..(GT,VX,VZ)198601-198801

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iGZ20..5F..(GT,VX,VZ)198601-198801

main90541-07020iGZ20..5F..GTT198601-198801

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iGZ20,MZ2#..5F198601-198801

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iGZ20..5F198601-198801

31305DSUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-14110iGZ20..5F..GTT198601-198801

main55107-14130iGZ20..5F..(GT,VX,VZ)198601-198801

31321PAD, CLUTCH PEDAL

main31321-14020iGZ20,MZ2#..5F198601-198801

31324SHAFT, CLUTCH PEDAL

main91121-51060iGZ20,MZ2#..5F198601-198801

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iGZ20,MZ2#..5F198601-198801

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iGZ20..5F..GTT198601-198801

main90249-08018iGZ20..5F..(GT,VX,VZ)198601-198801

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iGZ20,MZ2#..5F198601-198801

9046816142

main90468-16142

9165560820

main91655-60820

9411051000

main94110-51000

9412041000

main94120-41000

9451201000

main94512-01000

16 parts on this diagram · 3 diagrams in section
