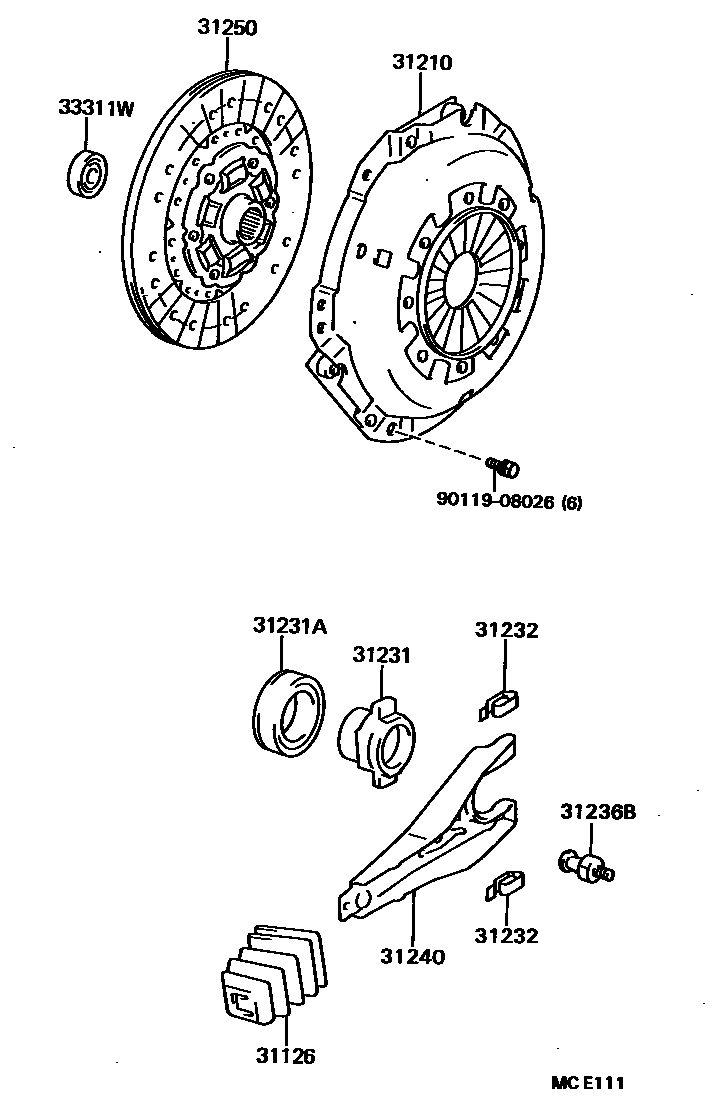

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20070iGZ20..5F198601-198801

31210COVER ASSY, CLUTCH

main31210-14150iMZ2#..5F198701-198801

main31210-22050iGZ20..5F..GTT198601-198801

sub31210-35150

main31210-22070iGZ20..5F..(VX,VZ)198601-198801

sub31210-30220

main31210-22080iGZ20..5F..GT198601-198801

sub31210-22100

31231HUB, CLUTCH RELEASE BEARING

main31231-14040iMZ2#..5F198701-198801

main31231-36070iGZ20..5F198601-198801

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iGZ20..5F198601-198801

main90363-45012iMZ2#..5F198701-198801

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-22010iGZ20..5F198601-198801

31236BSUPPORT, RELEASE FORK

main31236-14020iMZ2#..5F198701-198801

main31236-30060iGZ20..5F198601-198801

31240FORK ASSY, CLUTCH RELEASE

main31204-14030iMZ2#..5F198701-198712

sub31204-14031

main31204-14031iMZ2#..5F198712-198801

main31204-20090iGZ20..5F198601-198801

31250DISC ASSY, CLUTCH

main31250-14170iGZ20..5F..(GT,VX,VZ)198601-198801

sub31250-14171

main31250-14180iMZ2#..5F198701-198704

sub31250-14181

main31250-14181iMZ2#..5F198704-198801

sub31250-14182

main31250-22220iGZ20..5F..GTT198601-198801

sub31250-22221

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iMZ2#..5F198701-198801

sub90363-12024

main90363-12003iGZ20..5F198601-198801

9011908026

main90119-08026

10 parts on this diagram · 2 diagrams in section
