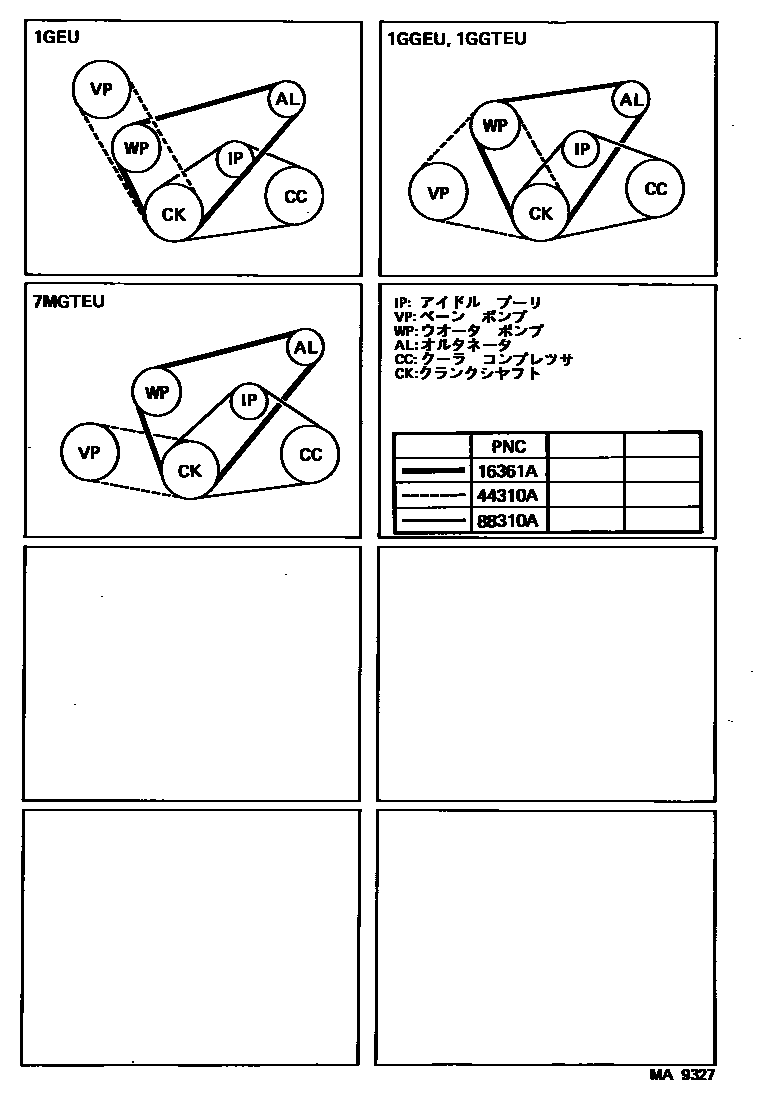

V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main99364-01100i1GEU..GZ20198601-198801

sub99364-81100

main99364-51160i1GGEU..GZ20198601-198801

sub99364-81160

main99364-51170i1GGTEU..GZ20..5F198601-198801

sub99364-81170

main99364-51200i1GGTEU..GZ20..4FC198601-198801

sub99364-81200

main99365-01290i7MGTEU..MZ2#198703-198801

sub99365-21290

main99365-01300i7MGTEU..MZ2#198601-198703

sub99365-01290

44310ABELT, V(FOR VANE PUMP)

main99332-01110iGZ20..VX,VZ198601-198801

main99363-00960iGZ20..GT198601-198801

main99363-00970iGZ20..GTT198601-198801

main99364-00860iMZ2#198601-198701

sub90916-02354

main99364-50840iMZ2#198701-198801

sub99364-80840

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99364-00850iGZ20..GT,GTT198601-198801

sub99364-20850

main99364-00920iMZ2#198601-198801

sub99364-20920

main99364-50840iGZ20..VX,VZ198601-198801

sub99364-80840

3 parts on this diagram · 1 diagram in section
