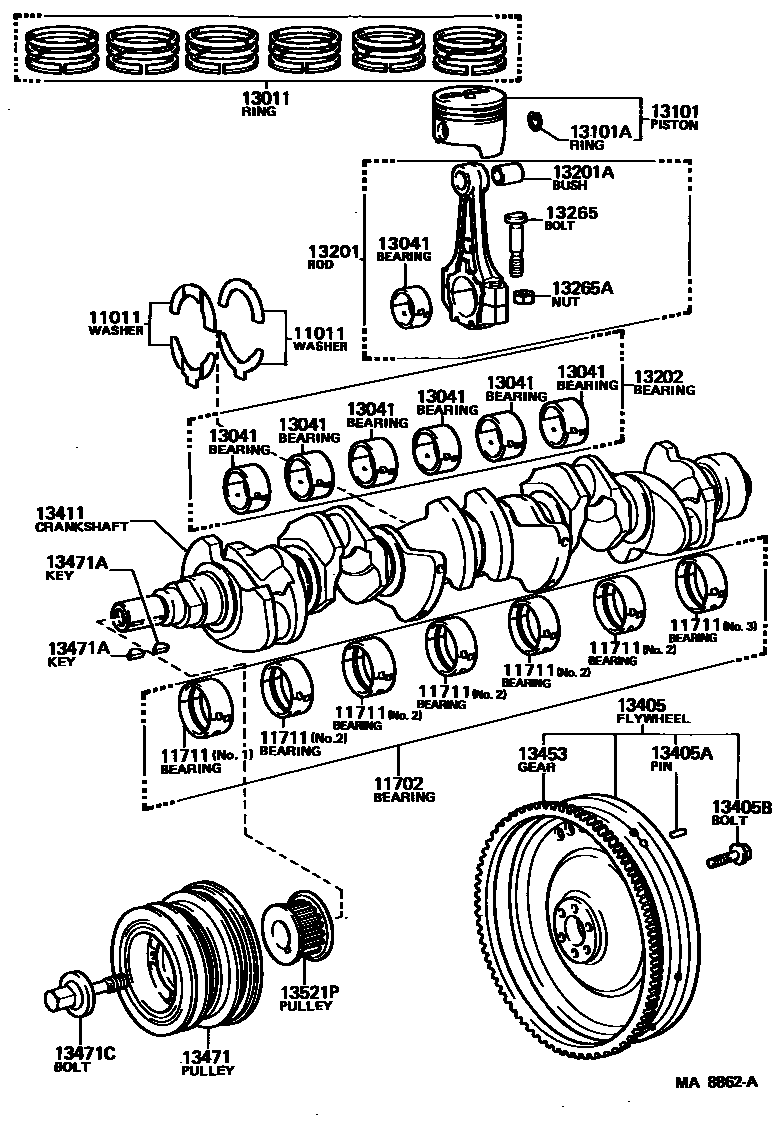

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
11711BEARING, CRANKSHAFT
NO.2,MARK"1",MARK 1
NO.2,MARK"2",MARK 2
NO.2,MARK"3",MARK 3
NO.2,MARK"4",MARK 4
NO.2,MARK"5",MARK 5
NO.1,MARK"1",*54,MARK 1
NO.1,MARK"2",*54,MARK 2
NO.1,MARK"3",*54,MARK 3
NO.1,MARK"4",*54,MARK 4
NO.1,MARK"5",*54,MARK 5
NO.1,MARK"1",MARK 1
NO.1,MARK"2",MARK 2
NO.1,MARK"3",MARK 3
NO.1,MARK"4",MARK 4
NO.1,MARK"5",MARK 5
NO.2,3,MARK"1",*54,MARK 1
NO.2,3,MARK"2",*54,MARK 2
NO.2,3,MARK"3",*54,MARK 3
NO.2,3,MARK"4",*54,MARK 4
NO.2,3,MARK"5",*54,MARK 5
13041BEARING, CONNECTING ROD
MARK"1",MARK 1
MARK"2",MARK 2
MARK"3",MARK 3
MARK"4",MARK 4
MARK"5",MARK 5
MARK"3",MARK 3
MARK"4",MARK 4
MARK"5",MARK 5
MARK"3",MARK 3
MARK"4",MARK 4
MARK"5",MARK 5
MARK"3",MARK 3
MARK"4",MARK 4
MARK"5",MARK 5
13101PISTON SUB-ASSY, W/PIN
sub13101-42080
sub13101-70033
sub13101-70033
sub13101-88341
sub13103-42080
sub13103-70033
sub13103-70033
sub13103-88341
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13201ABUSH(FOR CONNECTING ROD SMALL END)
13202BEARING SET, CONNECTING ROD
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
13405BBOLT, FLYWHEEL SETTING
*10-1.25PX26-18
13453GEAR, FLYWHEEL RING
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
*18-1.5PX40-20
13521PPULLEY, CRANKSHAFT TIMING
21 parts on this diagram · 3 diagrams in section
