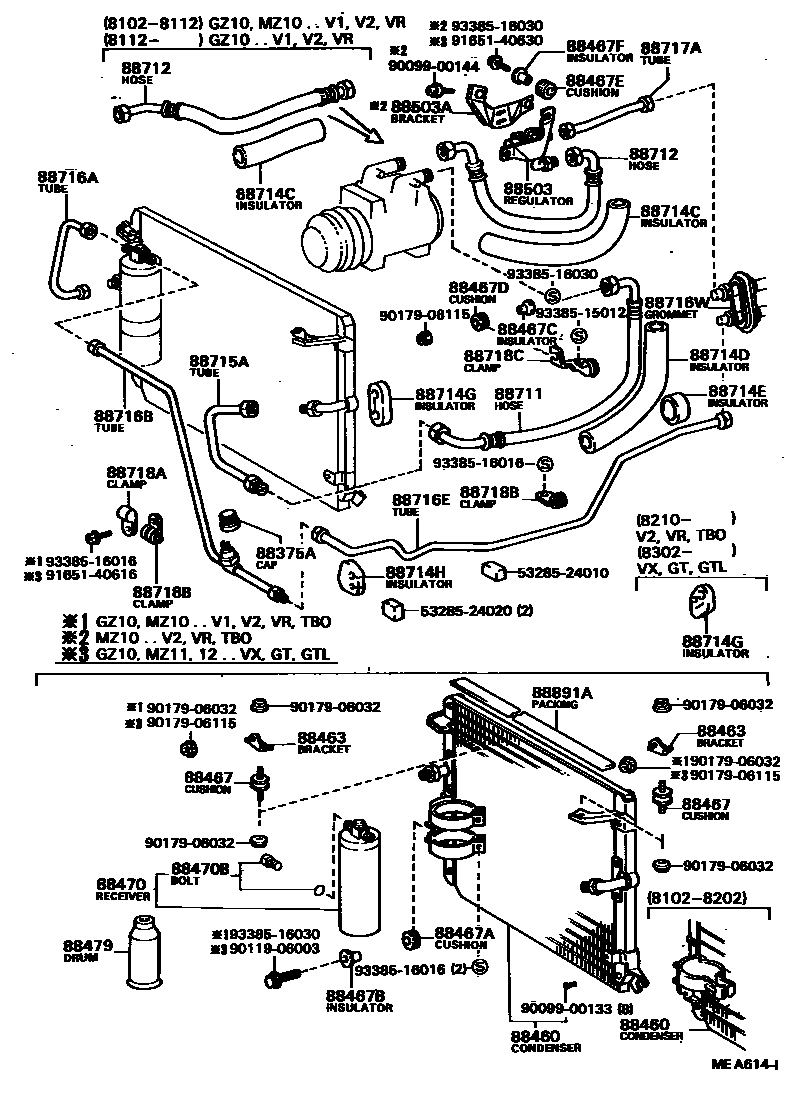

HEATING & AIR CONDITIONING - COOLER PIPING

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-30270iGZ10,MZ11,12..GT,GTL,VX198102-198512

88460CONDENSER ASSY, COOLER

main88460-24010iGZ10,MZ11198102-198202

sub88460-24011

sub93385-16016

main88460-24011iGZ10,MZ11,12198202-198512

main88460-24020iMZ10198107-198202

sub88460-24021

sub93385-16016

main88460-24021iMZ10198202-198512

88463BRACKET, COOLER CONDENSER, NO.1

main88463-24010iGZ10,MZ1#198102-198512

88467CUSHION, COOLER CONDENSER, NO.1

main88467-14040iGZ10,MZ1#198102-198512

88467ACUSHION, COOLER CONDENSER, NO.2

main90099-32100iGZ10,MZ1#198102-198512

88467BINSULATOR, COOLER CONDENSER MOUNTING

main88467-14050iGZ10,MZ1#198102-198512

88467CINSULATOR, COOLER REFRIGERANT PIPE CLAMP

main88467-14050iGZ10,MZ10..TBO,V1,V2,VR198112-198512

main88467-24010iGZ10,MZ11,12..GT,GTL,VX198102-198512

88467DCUSHION, COOLER REFRIGERANT PIPE CLAMP

main90099-32100iGZ10,MZ1#198102-198512

88467ECUSHION, PRESSURE REGULATOR

main90099-32100iGZ10,MZ11,12..GT,GTL,VX198102-198512

88467FINSULATOR, PRESSURE REGULATOR

main88467-14050iGZ10,MZ11,12..GT,GTL,VX198102-198512

main88467-22010iMZ10198112-198512

88470RECEIVER & DRYER ASSY, COOLER

main88470-12070iGZ10,MZ1#198102-198512

88470BBOLT, FUSE

main88475-12020iGZ10,MZ1#198102-198512

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001iGZ10,MZ1#198102-198512

sub90986-02004

sub90986-02005

88503REGULATOR ASSY, PRESSURE

main88503-14080iMZ10198112-198512

main88503-24010iGZ10,MZ11,12..GT,GTL,VX198102-198512

88503ABRACKET, PRESSURE REGULATOR

main88688-14460iMZ10198112-198512

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-24010iGZ10..V1,V2,VR,VX198102-198512

main88711-24020iMZ11198102-198203

main88711-24030iMZ10198107-198109

main88711-24031iMZ10198109-198512

main88711-24040iGZ10..GT198302-198501

main88711-24050iGZ10..GT198501-198512

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-24010iGZ10..VX198102-198512

main88712-24020iGZ10..V1,V2,VR198102-198512

main88712-24030iMZ11198102-198302

sub88712-24060

main88712-24040iMZ10198107-198112

main88712-24050iMZ10198203-198512

main88712-24060iMZ12198302-198512

main88712-24070iGZ10..GT198501-198512

88714CINSULATOR, COOLER REFRIGERANT HOSE, NO.1

main88714-14040iGZ10,MZ1#198102-198512

sub87173-36040

88714DINSULATOR, COOLER REFRIGERANT HOSE, NO.2

main88714-14080iMZ10198112-198512

sub88714-24020

main88714-24020iGZ10..V1,V2,VR,VX198102-198512

main88714-24080iMZ10198107-198112

sub88891-89101

main88714-24100iGZ10..GT198302-198512

88714EINSULATOR, COOLER REFRIGERANT HOSE, NO.3

main88714-24040iGZ10,MZ10198102-198512

88714GINSULATOR, COOLER REFRIGERANT PIPE, NO.1

main88714-24010iGZ10,MZ1#198102-198302

main88714-24090iGZ10,MZ10..TBO,V2,VR198210-198512

88714HINSULATOR, COOLER REFRIGERANT PIPE, NO.2

main44461-24020iMZ10198302-198512

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-24010iGZ10,MZ11,12198102-198512

main88715-24020iMZ10198107-198512

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-24020iGZ10,MZ11198102-198109

sub88716-24021

main88716-24021iGZ10,MZ11,12198107-198512

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-24031iGZ10,MZ1#198102-198512

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-24041iGZ10,MZ10..TBO,V1,V2,VR198102-198302

main88716-24042iGZ10,MZ10..TBO,V2,VR198210-198512

88716WGROMMET(FOR COOLER REFRIGERANT PIPE)

main90480-24008iGZ10,MZ1#198102-198512

sub90099-32137

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-24010iGZ10,MZ11,12..GT,GTL,VX198102-198512

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-14450iGZ10,MZ1#198102-198512

88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

main88718-12280iGZ10,MZ1#198102-198512

88718CCLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)

main88718-24010iGZ10,MZ1#198102-198512

88891APACKING A (FOR COOLER)

main88578-24010iMZ10198302-198512

5328524010PACKING, RADIATOR COVER TRIM, INNER SIDE

main53285-24010

5328524020PACKING, RADIATOR COVER TRIM, INNER SIDE

main53285-24020

9009900133

main90099-00133

9009900144

main90099-00144

9011906003

main90119-06003

9017906032

main90179-06032

9017906115

main90179-06115

9165140616

main91651-40616

9165140630

main91651-40630

9338515012

main93385-15012

9338516016

main93385-16016

9338516030

main93385-16030

44 parts on this diagram · 1 diagram in section
