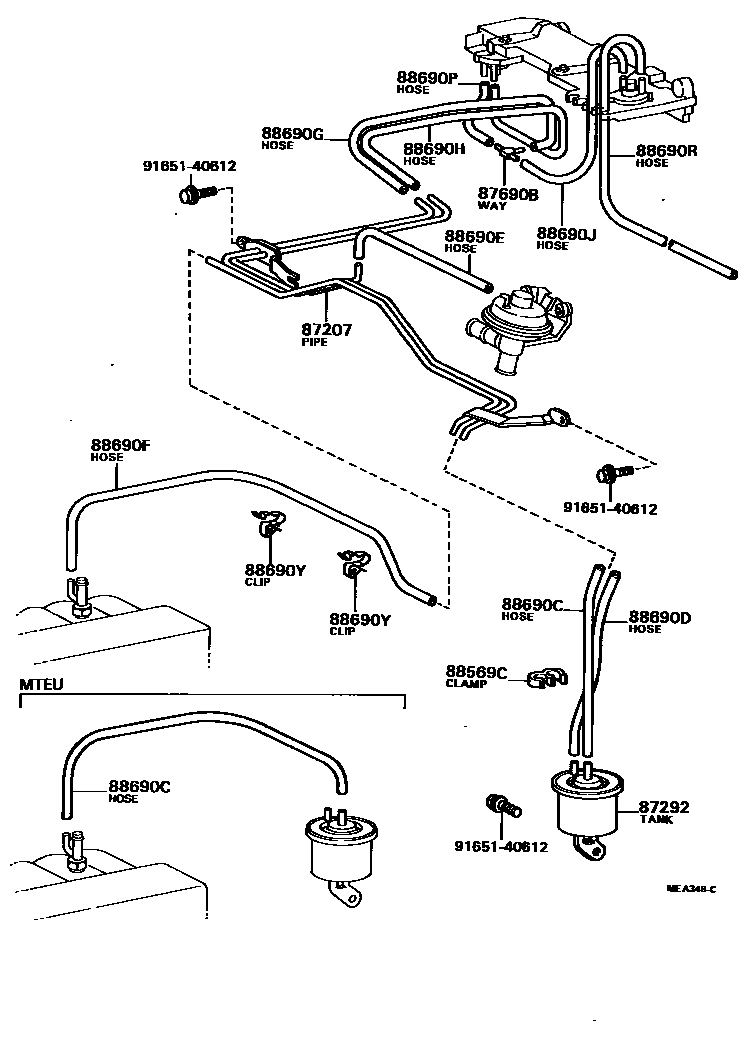

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0006 1

87207PIPE SUB-ASSY, VACUUM

main87207-24010iGZ10,MZ10..TBO,V1,V2,VR198102-198512

main87207-24020iGZ10,MZ11,12..GT,GTL,VX198102-198512

87292TANK, VACUUM

main87292-24010iGZ10,MZ1#198102-198512

87690BWAY, 3

main90413-04005iGZ10,MZ10..TBO,V1,V2,VR198102-198512

88569CCLAMP, NO.1(FOR HEATER OR AIR CONDITIONER CONTROL)

main90464-00082×3iGZ10,MZ1#..GT,GTL,TBO,VX198302-198512

88690CHOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER)

main95411-10030iGZ10198102-198512

sub90999-92002

main95411-10060iMZ11198102-198203

sub90999-92003

88690DHOSE, VACUUM, NO.2 (FOR HEATER OR AIR CONDITIONER)

main95411-10130iMZ10198107-198512

sub90999-92002

main95411-10160iGZ10,MZ11,12..GT,GTL,VX198102-198512

sub90999-92003

88690EHOSE, VACUUM, NO.3 (FOR HEATER OR AIR CONDITIONER)

main95411-10230iGZ10..V1,V2,VR198102-198512

sub90999-92002

88690FHOSE, VACUUM, NO.4 (FOR HEATER OR AIR CONDITIONER)

main95411-10030iGZ10..GT198302-198512

sub90999-92002

main95411-10060iMZ11..4FC198203-198302

sub90999-92003

88690GHOSE, VACUUM, NO.5 (FOR HEATER OR AIR CONDITIONER)

main95411-10130iGZ10,MZ10..TBO,V1,V2,VR198102-198512

sub90999-92002

main95411-10430iGZ10,MZ11,12..GT,GTL,VX198302-198512

*H,L=80,MARK=#4

sub90999-92002

main95411-10460iGZ10,MZ11..GT,VX198102-198302

*H,L=480,MARK=#4

sub90999-92003

88690HHOSE, VACUUM, NO.6 (FOR HEATER OR AIR CONDITIONER)

main95411-10260iGZ10,MZ10..TBO,V1,V2,VR198102-198512

sub90999-92003

main95411-10630iGZ10,MZ11,12..GT,GTL,VX198302-198512

*H,L=140,MARK=#6

sub90999-92002

main95411-10660iGZ10,MZ11..GT,VX198102-198302

*H,L=450,MARK=#6

sub90999-92003

88690JHOSE, VACUUM, NO.7 (FOR HEATER OR AIR CONDITIONER)

main95411-10330iGZ10,MZ10..TBO,V1,V2,VR198102-198512

*H,L=120,MARK=#3

sub90999-92002

main95411-10730iGZ10,MZ11,12..GT,GTL,VX198302-198512

*H,L=80,MARK=#7;*H,L=120,MARK=#7

sub90999-92002

main95411-10760iGZ10,MZ11..GT,VX198102-198302

*H,L=420,MARK=#7

sub90999-92003

88690PHOSE, VACUUM, NO.8 (FOR HEATER OR AIR CONDITIONER)

main95411-10230iGZ10,MZ11,12..GT,GTL,VX198302-198512

sub90999-92002

main95411-10260iGZ10,MZ11..GT,VX198102-198302

sub90999-92003

main95411-10430iGZ10,MZ10..TBO,V1,V2,VR198102-198512

*H,L=200,MARK=#4

sub90999-92002

88690RHOSE, VACUUM, NO.9 (FOR HEATER OR AIR CONDITIONER)

main95411-10530iGZ10,MZ11,12..GT,GTL,VX198302-198512

*H,L=80,MARK=#5;*H,L=160,MARK=#5

sub90999-92002

main95411-10560iGZ10,MZ11..GT,VX198102-198302

*H,L=450,MARK=#5

sub90999-92003

main95411-10795iGZ10,MZ10..TBO,V1,V2,VR198102-198512

*H,L=650,MARK=#7

sub90999-92004

88690YCLIP (FOR HEATER OR AIR CONDITIONER CONTROL)

main90468-04021×2iGZ10..V1,V2,VR,VX198201-198512

main90468-04039×2iGZ10198102-198201

9165140612

main91651-40612

15 parts on this diagram · 5 diagrams in section
