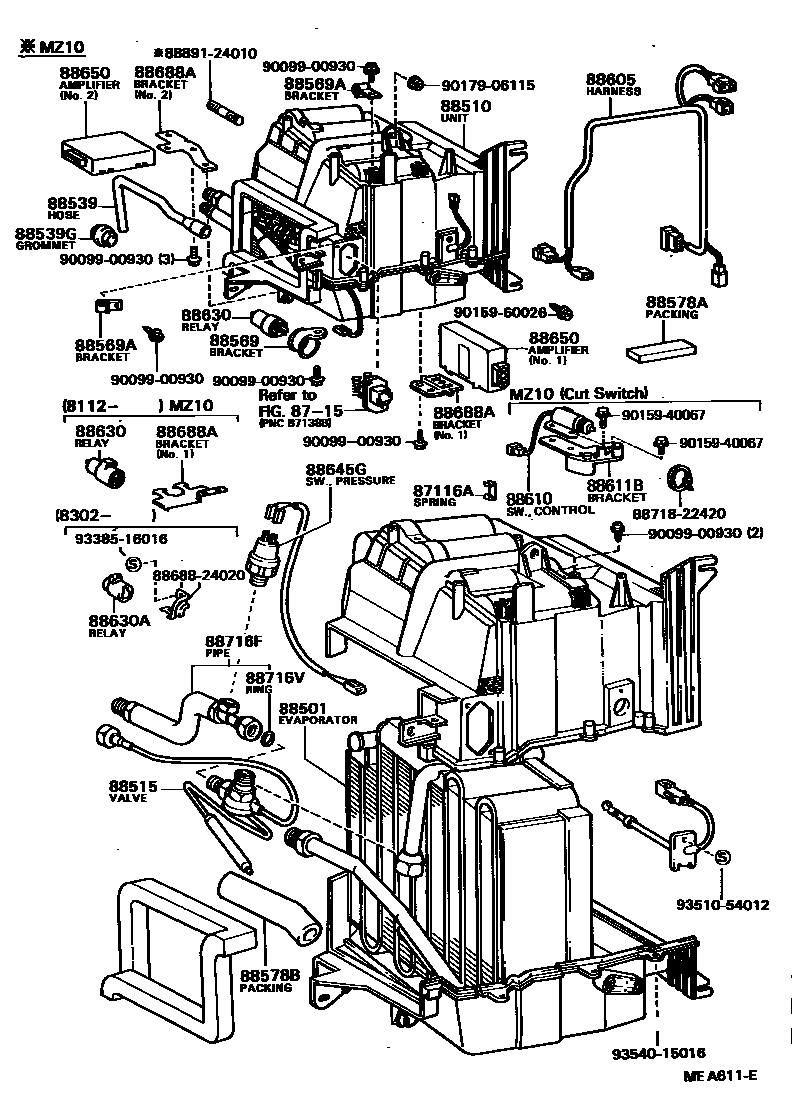

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010×4iGZ10,MZ1#198102-198512

8715

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-24010iMZ10198112-198212

main88501-24020iGZ10..V1,V2,VR198112-198212

main88501-24021iGZ10,MZ10..TBO,V2,VR198212-198512

sub88501-24022

88510UNIT ASSY, COOLER

main88510-24010iGZ10,MZ11..GT,VX198102-198112

main88510-24011iGZ10,MZ11..GT,VX198112-198203

main88510-24012iGZ10,MZ11..GT,VX198203-198302

main88510-24013iMZ11;GZ10..VX;GZ10..5F..GT198302-198501

main88510-24014iGZ10,MZ12..GT,GTL,VX198501-198512

main88510-24020iGZ10..V1,V2,VR198112-198512

main88510-24030iMZ10198112-198512

main88510-24050iGZ10..4FC..GT198302-198401

main88510-24051iGZ10..4FC..GT198401-198501

88515VALVE, COOLER EXPANSION

main88515-14040iGZ10,MZ11,12..GT,GTL,VX198102-198512

sub88515-14080

main88515-16030iGZ10..V2,VR198212-198512

sub88515-16031

main88515-20040iGZ10,MZ10..TBO,V1,V2,VR198102-198112

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-24010iGZ10,MZ1#198102-198204

main88539-24020iGZ10,MZ1#198204-198512

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90480-26004iGZ10,MZ1#198102-198512

88569CLAMP (FOR COOLER RELAY)

main88718-20340iGZ10,MZ10..TBO,V1,V2,VR198102-198112

88569ACLAMP, NO.1(FOR COOLER WIRING HARNESS)

main88569-12030×2iGZ10,MZ11,12..GT,GTL,VX198102-198512

main88718-24020×2iGZ10,MZ10..TBO,V1,V2,VR198102-198512

88578APACKING, COOLER STABILIZER AMPLIFIER

main88578-14020iGZ10..V1,V2,VR198102-198107

main88578-14050iMZ10198109-198112

88578BPACKING, COOLING UNIT, NO.1

main88578-12100iGZ10,MZ10..TBO,V1,V2,VR198102-198112

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-24010iGZ10,MZ10..TBO,V1,V2,VR198102-198112

main88605-24020iMZ10198112-198302

main88605-24021iMZ10198302-198401

main88605-24040iMZ11;GZ10..VX;GZ10..5F..GT198302-198501

main88605-24041iGZ10,MZ12..GT,GTL,VX198501-198512

main88605-24050iGZ10..4FC..GT198302-198401

main88605-24060iMZ10198401-198512

main88605-24070iGZ10..4FC..GT198401-198501

main88605-24100iGZ10..V2,VR198501-198512

88610SWITCH ASSY, COOLER CONTROL

main88610-30560iMZ10198112-198401

88611BPLATE, COOLER CONTROL SWITCH

main88688-30780iMZ10198112-198401

88630RELAY ASSY, COOLER

main88630-14030×2iMZ10198112-198512

main90987-03001iGZ10,MZ1#198102-198112

88630ARELAY ASSY, COOLER

main88630-95702iMZ10198302-198512

main90987-02004×2iGZ10,MZ11,12..GT,GTL,VX198102-198512

88645GSWITCH, PRESSURE

main88645-22020iGZ10,MZ1#198102-198512

sub88645-30250

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-14030iGZ10,MZ10..TBO,V1,V2,VR198102-198112

NO.1

main88650-24010iGZ10,MZ11..GT,VX198102-198112

NO.1

main88650-24011iGZ10,MZ11..GT,VX198112-198203

NO.1

main88650-24012iGZ10,MZ11..GT,VX198203-198206

NO.1

main88650-24020iMZ10198112-198401

NO.1

main88650-24050iGZ10,MZ11..GT,VX198112-198206

NO.2

main88650-24060iGZ10,MZ11..GT,VX198206-198302

NO.1

main88650-24070iGZ10..4FC..GT198302-198401

NO.1

main88650-24080iGZ10..V2,VR198501-198512

NO.2

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88688-14320iGZ10,MZ10..TBO,V1,V2,VR198102-198112

NO.1

main88688-14450iMZ10198112-198512

NO.1

main88688-14660iGZ10..V2,VR198501-198512

NO.2

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-24010iGZ10,MZ1#198102-198512

88716VRING, O(FOR COOLER UNIT)

main90099-14044iGZ10,MZ1#198102-198512

8868824020BRACKET, COOLER DIAPHRAGM

main88688-24020

8871822420PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-22420

8889124010PACKING (FOR COOLER)

main88891-24010

9009900930

main90099-00930

9015940067

main90159-40067

9015960026

main90159-60026

9017906115

main90179-06115

9338516016

main93385-16016

9351054012

main93510-54012

9354015016

main93540-15016

31 parts on this diagram · 2 diagrams in section
