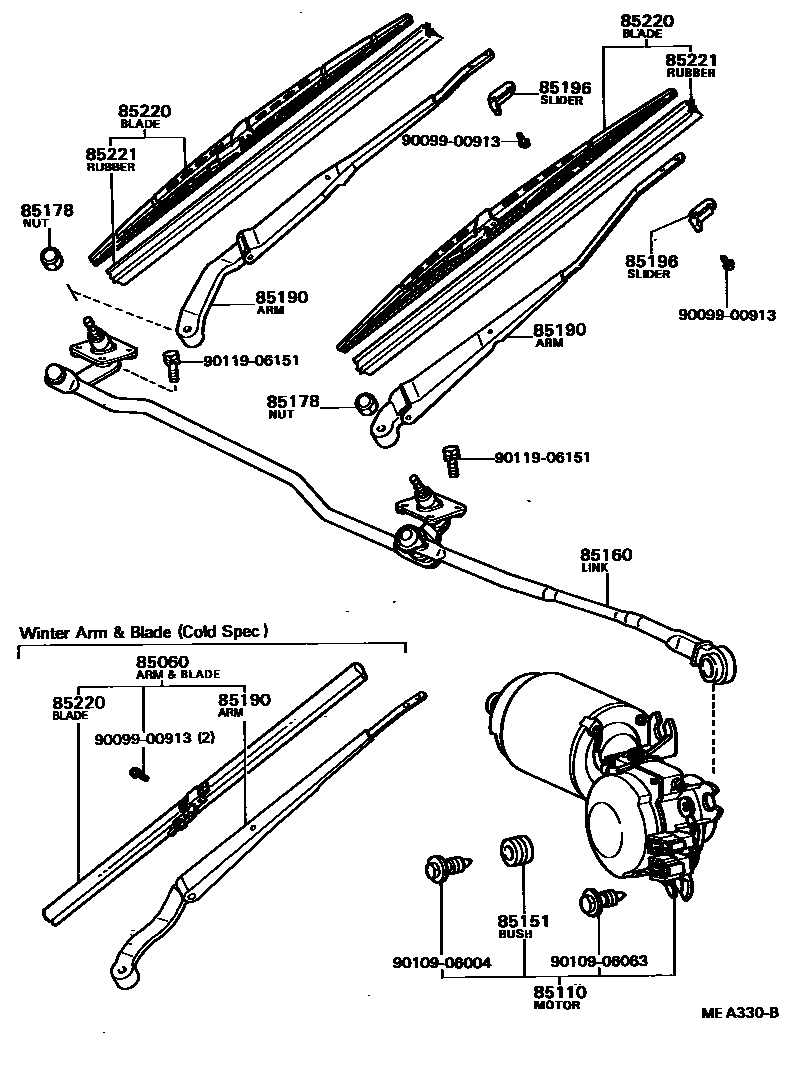

WINDSHIELD WIPER

85060ARM AND BLADE ASSY, WINDSHIELD WIPER

main85060-24050iGZ10,MZ1#198211-198512

RH,WINTER ARM & BLADE

main85070-24020iGZ10,MZ1#198211-198512

LH,WINTER ARM & BLADE

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-24010iGZ10,MZ1#198102-198302

sub85110-24011

main85110-24011iGZ10,MZ1#198302-198501

sub85110-24012

main85110-24012iGZ10,MZ1#198501-198512

85151BUSH, WINDSHIELD WIPER MOTOR GEAR HOUSING COVER

main85151-22070iGZ10,MZ1#198102-198302

85160LINK ASSY, WINDSHIELD WIPER

main85160-24010iGZ10,MZ1#198102-198302

sub85160-24011

main85160-24011iGZ10,MZ1#198302-198501

sub85160-24012

main85160-24012iGZ10,MZ1#198501-198512

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08013iGZ10,MZ1#198102-198202

main90176-08029iGZ10,MZ1#198202-198508

main90176-08033iGZ10,MZ1#198508-198512

85190ARM ASSY, WINDSHIELD WIPER

main85190-24010iGZ10,MZ1#198102-198304

RH

sub85190-24011

main85190-24011iGZ10,MZ1#198304-198512

RH

main85190-24050iGZ10,MZ1#198211-198512

RH,WINTER ARM(COLD SPEC)

main85210-24010iGZ10,MZ1#198102-198304

LH

main85210-24011iGZ10,MZ1#198304-198512

LH

main85210-24020iGZ10,MZ1#198211-198512

LH,WINTER ARM(COLD SPEC)

85196SLIDER, WIPER ARM

main85196-24010iGZ10,MZ1#198102-198302

RH

main85196-24020iGZ10,MZ1#198102-198302

LH

main85196-24030iGZ10,MZ1#198302-198512

RH

main85196-24040iGZ10,MZ1#198302-198512

LH

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16300iGZ10,MZ1#198304-198308

LH

sub85220-16330

main85220-16330iGZ10,MZ1#198308-198512

LH

sub85222-24050

main85220-22250iGZ10,MZ1#198302-198304

LH

sub85220-16300

main85220-24010iGZ10,MZ1#198102-198302

RH

main85220-24020iGZ10,MZ1#198102-198302

LH

sub85220-14360

main85220-24040iGZ10,MZ1#198102-198512

WINTER BLADE(COLD SPEC)

sub85291-24010

main85220-32070iGZ10,MZ1#198302-198304

RH

sub85220-32311

main85220-32300iGZ10,MZ1#198304-198308

RH

sub85220-32311

main85220-32310iGZ10,MZ1#198308-198512

RH

sub85220-32311

85221BLADE, WINDSHIELD WIPER

main85221-24010iGZ10,MZ1#198102-198302

RH

sub85221-30110

main85221-24020iGZ10,MZ1#198102-198302

LH

sub85221-30120

main85221-30100iGZ10,MZ1#198302-198308

LH

main85221-30110iGZ10,MZ1#198308-198512

RH

sub85221-30130

main85221-30120iGZ10,MZ1#198308-198512

LH

sub85221-40040

main85221-32060iGZ10,MZ1#198302-198308

RH

sub85221-30130

9009900913

main90099-00913

9010906004

main90109-06004

9010906063

main90109-06063

9011906151

main90119-06151

13 parts on this diagram · 1 diagram in section
