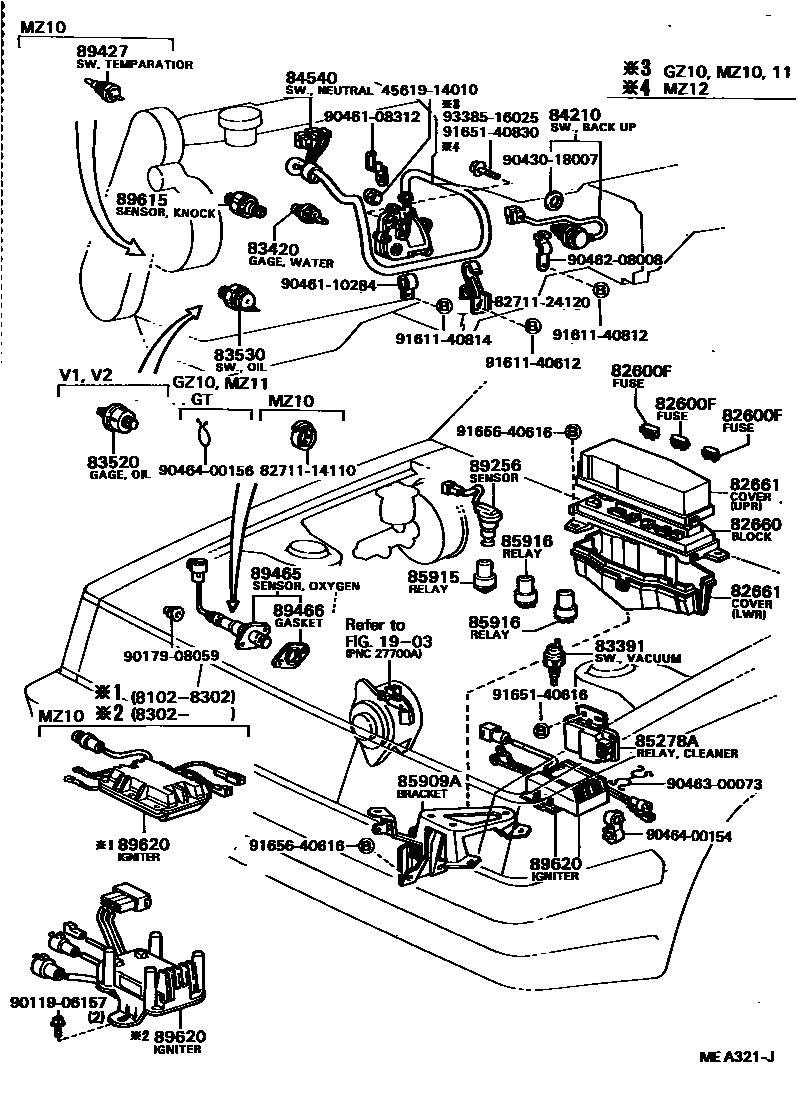

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1903

82600FFUSE, FUSE BLOCK

main90982-09002iGZ10,MZ1#198102-198512

main90982-09003iGZ10,MZ1#198102-198512

main90982-09004iGZ10,MZ1#198102-198512

main90982-09005iGZ10,MZ1#198102-198512

82660BLOCK ASSY, RELAY, ENGINE ROOM

main82660-20100iGZ10,MZ1#198310-198512

main82660-22091iGZ10,MZ1#198102-198310

sub82660-20100

sub90987-02006

82661COVER, RELAY BLOCK, NO.1

main82661-20020iGZ10,MZ1#198310-198512

UPR

main82661-22011iGZ10,MZ1#198102-198308

UPR

sub82661-22070

main82661-22030iGZ10,MZ1#198102-198512

LWR

main82661-22070iGZ10,MZ1#198308-198310

UPR

sub82661-20020

83391SWITCH, VACUUM

main83391-25010iMZ10198107-198302

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16010iGZ10,MZ1#198102-198512

DENSO

sub83420-20020

main83420-20020iGZ10,MZ1#198102-198512

YAZAKI

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14021iGZ10,MZ10..V1,V2198102-198203

sub83520-14022

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-30042iGZ10198102-198512

sub83530-30050

main83530-30050iMZ1#198206-198302

sub83530-30051

84210SWITCH ASSY, BACK-UP LAMP

main84210-60010iGZ10,MZ11,12..5F198102-198512

84540SWITCH ASSY, NEUTRAL START

main84540-14080iGZ10..4FC..(V2,VR,VX)198109-198512

main84540-24010iGZ10,MZ11..4FC..GT198203-198512

sub84540-24011

main84540-24020iMZ12..4FC198501-198512

sub84540-24021

main84540-30191iGZ10,MZ1#..4FC198102-198109

sub84540-14080

85278ARELAY ASSY, HEADLAMP CLEANER CONTROL

main85276-14040iMZ11,12198302-198512

main85276-20020iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198302

85909ABRACKET SUB-ASSY, RELAY BLOCK

main85909-24010iGZ10,MZ1#198102-198512

85915RELAY, MAIN

main90987-02002iGZ10,MZ1#198102-198512

DENSO

sub90987-02004

main90987-02004iGZ10,MZ1#198102-198512

MARUKO

85916RELAY, LIGHT CONTROL

main90987-01003iGZ10,MZ1#198102-198310

TAIL & HEAD

main90987-01003iGZ10,MZ1#198310-198512

TAIL

main90987-02006iGZ10,MZ1#198310-198512

HEAD

89256SENSOR, LEVEL WARNING

main89256-24010iMZ10198302-198512

89427SWITCH, TEMPERATURE DETECT

main88620-24030iMZ10198302-198512

89465SENSOR, OXYGEN

main89465-19075iGZ10..V2,VR,VX198308-198512

sub89465-19076

main89465-29026iGZ10198102-198302

main89465-29065iMZ11..5F198102-198302

main89465-29095iMZ11198203-198512

sub89465-29096

main89465-29105iGZ10..V2,VR,VX198302-198308

sub89465-29106

main89465-29115iMZ10198301-198306

sub89465-29116

main89465-29116iMZ10198306-198512

main89465-39065iMZ10198107-198301

main89465-39085iGZ10..GT198302-198310

89466GASKET, OXYGEN SENSOR

main89466-30010iMZ11198102-198512

sub89466-20020

main89466-32010iGZ10198302-198512

sub89466-30030

89615SENSOR, KNOCK CONTROL

main89615-14010iMZ10198206-198512

DENSO

main89615-22010iMZ12198501-198512

main89615-30010iMZ10198107-198512

MATSUSHITA

89620IGNITER ASSY

main89620-24010iGZ10198102-198302

sub89620-22180

main89620-24020iMZ11198102-198302

main89620-24030iMZ10198302-198512

main89620-24040iGZ10..V2,VR,VX198302-198501

main89620-30110iMZ10198107-198302

main89620-30130iGZ10,MZ11..GT198203-198512

4561914010COVER, KNUCKLE STOPPER

main45619-14010

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

8271124120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24120

9011906157

main90119-06157

9017908059

main90179-08059

9043018007

main90430-18007

9046108312

main90461-08312

9046110284

main90461-10284

9046208008

main90462-08008

9046300073

main90463-00073

9046400154

main90464-00154

9046400156

main90464-00156

9161140612

main91611-40612

9161140812

main91611-40812

9161140814

main91611-40814

9165140616

main91651-40616

9165140830

main91651-40830

9165640616

main91656-40616

9338516025

main93385-16025

39 parts on this diagram · 6 diagrams in section
