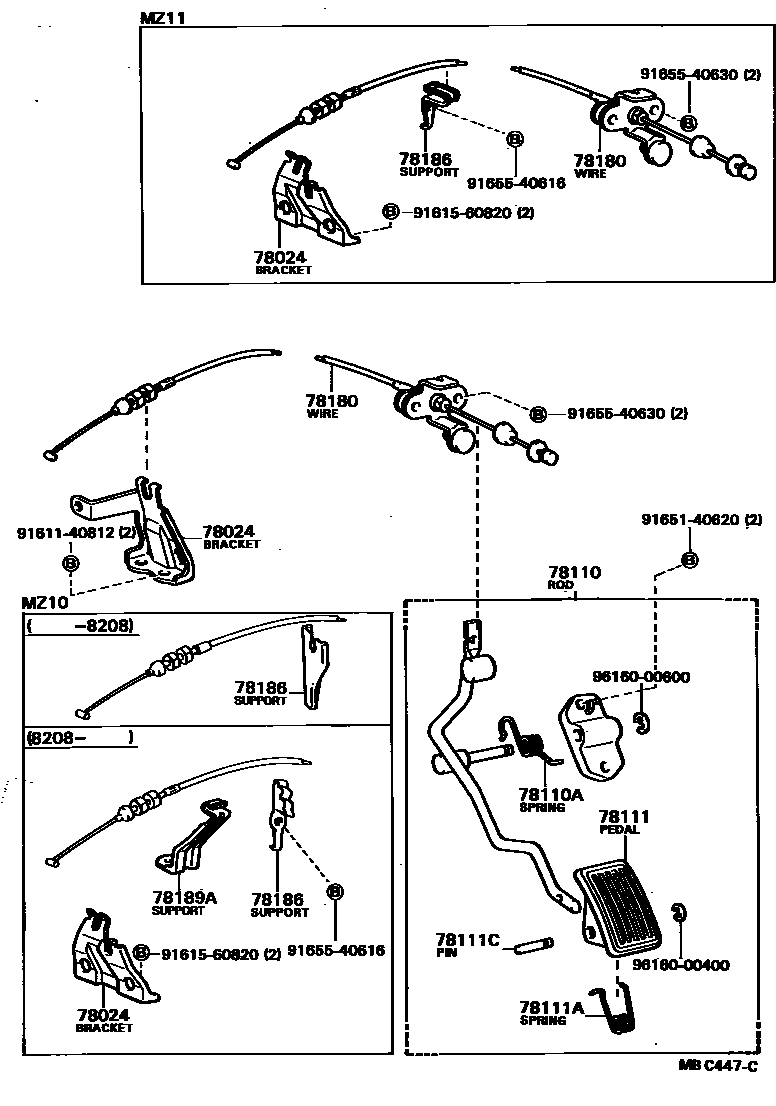

ACCELERATOR LINK

0001 1 0002 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-14010iGZ10..GT198302-198501

main78024-22040iGZ10..GT198501-198512

main78024-24010iMZ11,12..5F198302-198512

main78024-30020iGZ10..V2,VR,VX198501-198512

main78024-30030iMZ11,12..4FC198302-198512

main78184-22040iGZ10..V1,V2,VR,VX198102-198501

main78184-24010iMZ11198102-198302

main78184-30070iMZ10198107-198512

78110ROD ASSY, ACCELERATOR PEDAL

main78120-24010iGZ10..5F..GT198102-198512

main78120-24020iGZ10,MZ11..4FC198102-198302

main78120-24021iMZ11198302-198512

main78120-24030iMZ12198501-198512

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18047iGZ10..4FC..GT198302-198512

main90508-23043iGZ10,MZ11..4FC198102-198302

main90508-29012iMZ10198102-198512

78111PEDAL, ACCELERATOR

main78111-12100iGZ10,MZ1#198102-198512

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-23003iGZ10,MZ1#198102-198512

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iGZ10,MZ1#198102-198512

78180WIRE ASSY, ACCELERATOR

main78180-14600iGZ10..GT198302-198512

main78180-24010iGZ10..V1,V2,VR,VX198102-198501

main78180-24011iGZ10..V2,VR,VX198501-198512

main78180-24020iMZ11198102-198302

main78180-24030iMZ10198107-198512

main78180-24040iMZ11,12..4FC198302-198512

main78180-24050iMZ11,12..5F198302-198512

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-14080iMZ10198208-198512

main78186-24010iMZ10198107-198208

sub78186-14080

main78186-24020iMZ11,12198102-198512

78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2

main78189-24010iMZ10198107-198301

main78189-24020iMZ10198301-198512

9161140812

main91611-40812

9161560820

main91615-60820

9165140620

main91651-40620

9165540616

main91655-40616

9165540630

main91655-40630

9616000400

main96160-00400

9616000600

main96160-00600

16 parts on this diagram · 2 diagrams in section
