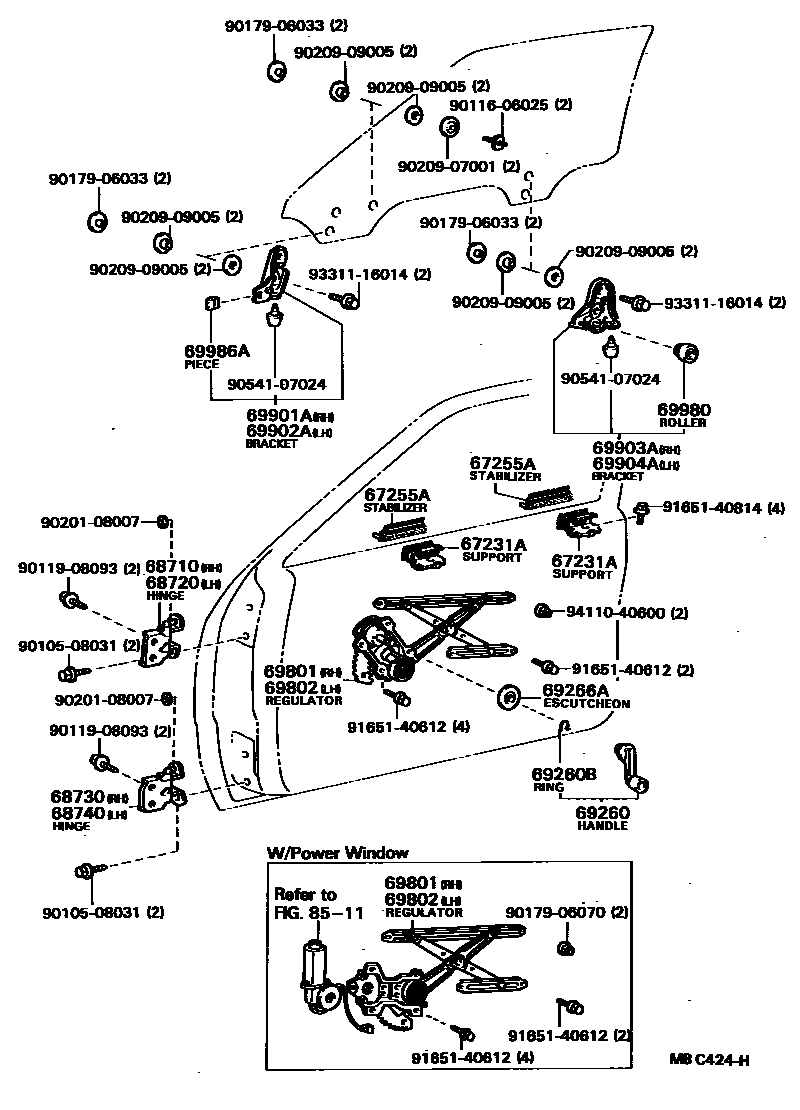

FRONT DOOR WINDOW REGULATOR & HINGE

67231ASUPPORT, FRONT DOOR TRIM

main67231-24010×4iGZ10,MZ1#198102-198512

67255ASTABILIZER, FRONT DOOR GLASS, OUTER

main67255-24010×2iGZ10,MZ1#198102-198512

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-24010iGZ10,MZ1#198102-198512

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-24010iGZ10,MZ1#198102-198512

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-24010iGZ10,MZ1#198102-198512

sub68730-60020

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-24010iGZ10,MZ1#198102-198512

sub68740-60020

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-22020-01×2iGZ10..V1198102-198203

BLACK,BLACK,TRIM2#

sub69260-14030

main69260-22020-12×2iGZ10..V1198102-198203

TERRA COTTA,RED/MAROON,TRIM3#

sub69260-14030

main69260-22020-14×2iGZ10..V1198102-198203

BLUE,BLUE,TRIM8#

sub69260-14030

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iGZ10..V1198102-198203

69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)

main69272-30010×2iGZ10..V1198102-198203

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-24010iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198302

main69810-24010iGZ10..V1198102-198203

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-24010iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198302

main69820-24010iGZ10..V1198102-198203

69901ABRACKET SUB-ASSY, FRONT DOOR GLASS, RH

main69951-24010iGZ10,MZ1#198102-198512

69902ABRACKET SUB-ASSY, FRONT DOOR GLASS, LH

main69952-24010iGZ10,MZ1#198102-198512

69903ABRACKET SUB-ASSY, FRONT DOOR GLASS, REAR RH

main69903-24010iGZ10,MZ1#198102-198512

69904ABRACKET SUB-ASSY, FRONT DOOR GLASS, REAR LH

main69904-24010iGZ10,MZ1#198102-198512

69980ROLLER ASSY, FRONT DOOR GLASS GUIDE

main69981-14020×2iGZ10,MZ1#198208-198512

main69981-30040×2iGZ10,MZ1#198102-198208

69986APIECE, FRONT DOOR GLASS GUIDE

main69986-24010×2iGZ10,MZ1#198102-198512

8511

9010508031

main90105-08031

9011606025

main90116-06025

9011908093

main90119-08093

9017906033

main90179-06033

9017906070

main90179-06070

9020108007

main90201-08007

9020907001

main90209-07001

9020909005

main90209-09005

9054107024

main90541-07024

9165140612

main91651-40612

9165140814

main91651-40814

9331116014

main93311-16014

9411040600

main94110-40600

31 parts on this diagram · 1 diagram in section
