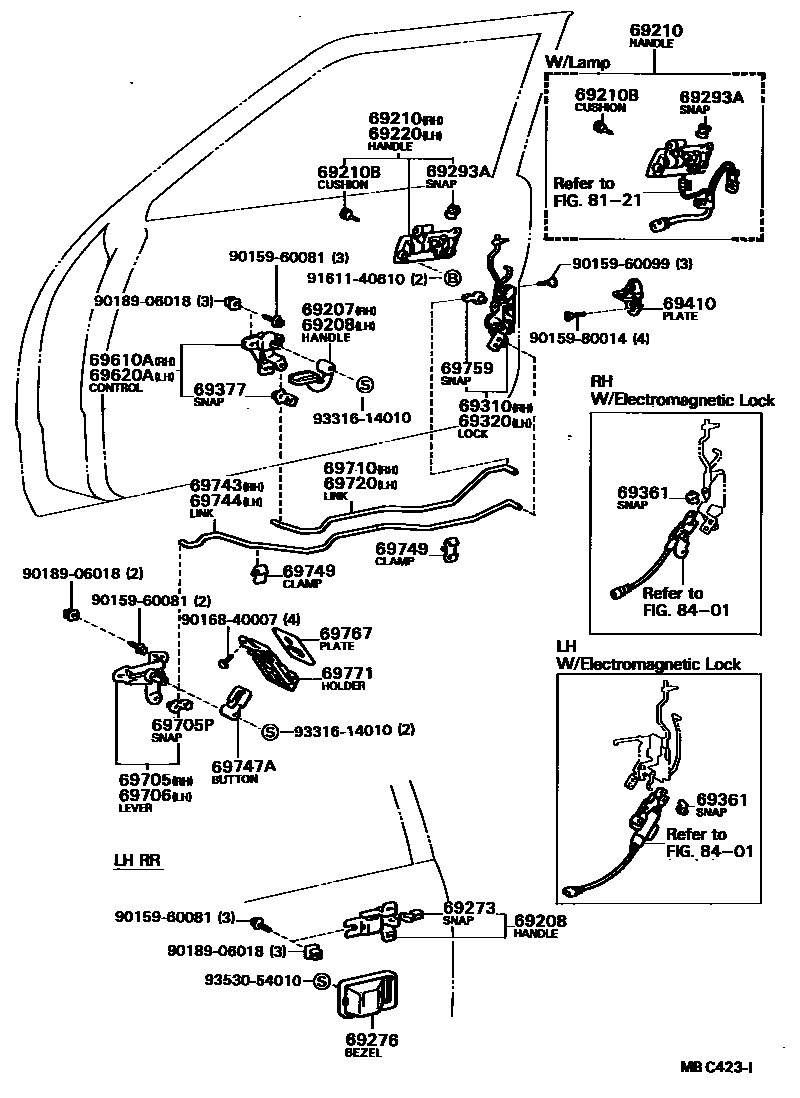

FRONT DOOR LOCK & HANDLE

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69271-24010iGZ10,MZ1#198102-198504

main69271-24011iGZ10,MZ1#198504-198512

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-24010iGZ10,MZ1#198102-198512

RR

main69272-24010iGZ10,MZ1#198102-198504

FR

main69272-24011iGZ10,MZ1#198504-198512

FR

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-24010iGZ10..V1198102-198203

main69210-24020iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198512

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03021iGZ10,MZ1#198102-198512

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-24010iGZ10,MZ1#198102-198512

69273SNAP, DOOR INSIDE HANDLE ROD

main69759-24070iGZ10,MZ1#198102-198512

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69277-16040-01iGZ10,MZ1#198102-198203

BLACK,BLACK,TRIM2#

sub69277-16040

sub69277-89104

main69277-16040-12iGZ10,MZ1#198102-198302

TERRA COTTA,RED/MAROON,TRIM3#

sub69277-16040

sub69277-89104

main69277-16040-13iGZ10,MZ1#198203-198302

GRAY,GRAY,TRIM1#

sub69277-16040

sub69277-89104

main69277-16040-14iGZ10,MZ1#198102-198512

BLUE,BLUE,TRIM8#

sub69277-16040

sub69277-89104

main69277-16040-22iGZ10,MZ1#198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub69277-16040

sub69277-89104

main69277-16040-35iGZ10,MZ1#198302-198512

BEIGE,BEIGE,TRIM4#

sub69277-16040

sub69277-89104

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-24010iGZ10,MZ1#198102-198512

RH

main69293-24020iGZ10,MZ1#198102-198512

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-24010iGZ10..V1198102-198203

main69310-24020iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198512

69320LOCK ASSY, FRONT DOOR, LH

main69320-24010iGZ10..V1198102-198203

main69320-24020iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198512

69361SNAP, DOOR LOCK CONNECTING ROD

main69759-24010iGZ10,MZ1#198102-198512

RH

main69759-24020iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198512

LH

69377SNAP, FRONT DOOR LOCK CONTROL ROD

main69759-24080iGZ10,MZ1#198102-198512

LH

main69759-24090iGZ10,MZ1#198102-198512

RH

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-22030iGZ10,MZ1#198102-198512

sub69410-90B01

69610ACONTROL ASSY, FRONT DOOR LOCK REMOTE, RH

main69610-24010iGZ10,MZ1#198102-198504

sub69610-24011

sub69271-24011

main69610-24011iGZ10,MZ1#198504-198512

69620ACONTROL ASSY, FRONT DOOR LOCK REMOTE, LH

main69620-24010iGZ10,MZ1#198102-198504

sub69620-24011

sub69272-24011

main69620-24011iGZ10,MZ1#198504-198512

69705LEVER ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-24010iGZ10,MZ1#198102-198512

69705PSNAP, FRONT DOOR INSIDE LOCKING LEVER

main69759-24030iGZ10,MZ1#198102-198512

LH

main69759-24040iGZ10,MZ1#198102-198512

RH

69706LEVER ASSY, FRONT DOOR INSIDE LOCKING, LH

main69760-24010iGZ10,MZ1#198102-198512

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-24010iGZ10,MZ1#198102-198512

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-24010iGZ10,MZ1#198102-198512

69743LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH

main69733-24010iGZ10,MZ1#198102-198512

69744LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH

main69734-24010iGZ10,MZ1#198102-198512

69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)

main69741-24010iGZ10,MZ1#198102-198512

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12010iGZ10,MZ1#198102-198306

FR

main69749-12030iGZ10,MZ1#198102-198512

RR

main69749-30020iGZ10,MZ1#198207-198512

FR

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-24050iGZ10,MZ1#198102-198512

RH

main69759-24060iGZ10,MZ1#198102-198512

LH

69767PLATE, DOOR LOCKING KNOB SLIDE

main69761-24010iGZ10,MZ1#198102-198512

69771HOLDER, DOOR LOCKING KNOB SLIDE PLATE

main69771-24010iGZ10,MZ1#198102-198512

8121

8401

9015960081

main90159-60081

9015960099

main90159-60099

9015980014

main90159-80014

9016840007

main90168-40007

9018906018

main90189-06018

9161140610

main91611-40610

9331614010

main93316-14010

9353054010

main93530-54010

37 parts on this diagram · 1 diagram in section
