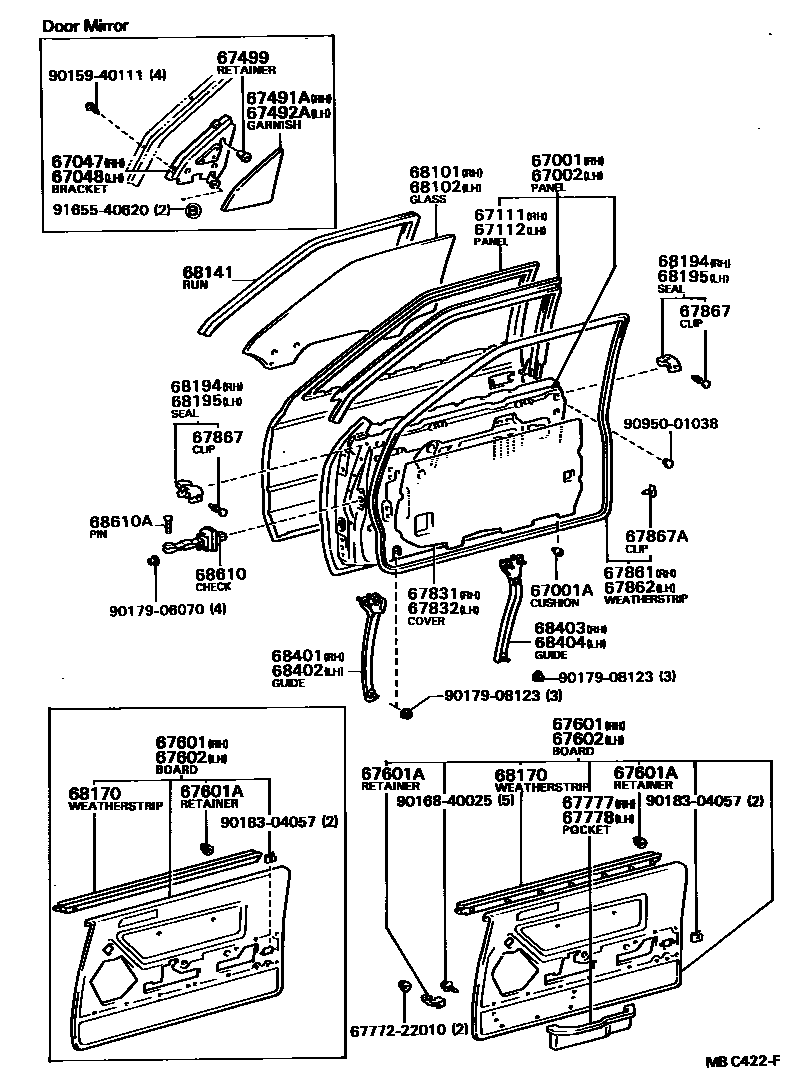

FRONT DOOR PANEL & GLASS

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-24010iGZ10,MZ1#198102-198308

sub67001-24011

sub82817-24040

main67001-24011iGZ10,MZ1#198308-198512

main67001-24020iGZ10,MZ1#198401-198512

W/DOOR MIRROR

67001ACUSHION, FRONT DOOR PANEL

main90541-09006iGZ10,MZ1#198102-198512

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-24010iGZ10,MZ1#198102-198308

sub67002-24011

sub82817-24040

main67002-24011iGZ10,MZ1#198308-198512

main67002-24020iGZ10,MZ1#198401-198512

W/DOOR MIRROR

67047BRACKET SUB-ASSY, FRONT DOOR LOWER FRAME, RH

main67047-24020iGZ10,MZ1#198401-198512

W/DOOR MIRROR

67048BRACKET SUB-ASSY, FRONT DOOR LOWER FRAME, LH

main67048-24020iGZ10,MZ1#198401-198512

W/DOOR MIRROR

67111PANEL, FRONT DOOR, OUTER RH

main67111-24010iGZ10,MZ1#198102-198512

67112PANEL, FRONT DOOR, OUTER LH

main67112-24010iGZ10,MZ1#198102-198512

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-24020iGZ10,MZ1#198308-198512

W/DOOR MIRROR

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-24020iGZ10,MZ1#198401-198512

W/DOOR MIRROR

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-30010iGZ10,MZ1#198401-198512

W/DOOR MIRROR

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-24010-01iGZ10..V1198102-198203

BLACK & GRAY,BLACK,TRIM2#

sub67610-24060

main67610-24010-02iGZ10..V1198102-198203

TERRA COTTA & L-BEIGE,RED/MAROON,TRIM3#

sub67610-24060

main67610-24010-04iGZ10..V1198102-198203

BLUE & LIGHT BLUE,BLUE,TRIM8#

sub67610-24060

main67610-24020-01iGZ10,MZ10..TBO,VR198102-198203

BLACK & GRAY,BLACK,TRIM2#

main67610-24020-02iGZ10,MZ10..TBO,VR198102-198302

TERRA COTTA & L-BEIGE,RED/MAROON,TRIM3#

main67610-24020-03iGZ10,MZ10..TBO,VR198203-198302

GRAY,GRAY,TRIM1#

main67610-24020-04iGZ10,MZ10..TBO,VR198102-198302

BLUE & LIGHT BLUE,BLUE,TRIM8#

main67610-24021-02iGZ10,MZ10..TBO,VR198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

main67610-24021-04iGZ10,MZ10..TBO,VR198302-198512

BLUE,BLUE,TRIM8#

main67610-24021-05iGZ10,MZ10..TBO,VR198302-198512

BEIGE,BEIGE,TRIM4#

main67610-24030-01iGZ10,MZ11..GT,VX198102-198203

BLACK & GRAY,BLACK,TRIM2#

main67610-24030-02iGZ10,MZ11..GT,VX198102-198302

TERRA COTTA & L-BEIGE,RED/MAROON,TRIM3#

main67610-24030-03iGZ10,MZ11..GT,VX198203-198302

GRAY,GRAY,TRIM1#

main67610-24030-04iGZ10,MZ11..GT,VX198102-198302

BLUE & LIGHT BLUE,BLUE,TRIM8#

main67610-24031-02iGZ10..VX198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

main67610-24031-04iGZ10..VX198302-198512

BLUE,BLUE,TRIM8#

main67610-24031-05iGZ10..VX198302-198512

BEIGE,BEIGE,TRIM4#

main67610-24040iMZ11198102-198302

*EXT,TERRA COTTA & L-BEIGE

main67610-24041-02iMZ11,12..GT198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

main67610-24041-04iMZ11,12..GT198302-198512

BLUE,BLUE,TRIM8#

main67610-24041-05iMZ11,12..GT198302-198512

BEIGE,BEIGE,TRIM4#

main67610-24050iMZ11198102-198302

W/LEATHER,TERRACOTTA & L-BEIGE

main67610-24051iMZ11198203-198302

LIMITED,TERRA COTTA & BROWN

main67610-24052iMZ11198302-198501

LIMITED & W/*LES,DEEP MAROON

main67610-24052iMZ12198501-198512

W/*LES

main67610-24060-01iGZ10,MZ10..V2198102-198203

BLACK & GRAY,BLACK,TRIM2#

main67610-24060-02iGZ10,MZ10..V2198102-198302

TERRA COTTA & L-BEIGE,RED/MAROON,TRIM3#

main67610-24060-03iGZ10,MZ10..V2198203-198302

GRAY,GRAY,TRIM1#

main67610-24060-04iGZ10,MZ10..V2198102-198302

BLUE & LIGHT BLUE,BLUE,TRIM8#

main67610-24061-02iGZ10..V2198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

main67610-24061-04iGZ10..V2198302-198512

BLUE,BLUE,TRIM8#

main67610-24080iMZ12..GTL198501-198512

main67610-24080iMZ11198302-198501

LIMITED,DEEP MAROON

main67610-24100-02iGZ10,MZ11,12..GT198302-198512

SPORTS SEAT,DEEP MAROON,RED/MAROON,TRIM3#

main67610-24100-04iGZ10,MZ11,12..GT198302-198512

SPORTS SEAT,BLUE,BLUE,TRIM8#

main67610-24100-05iGZ10,MZ11,12..GT198302-198512

SPORTS SEAT,BEIGE,BEIGE,TRIM4#

main67610-24110-02iGZ10..V2198401-198512

W/*DM,DEEP MAROON,RED/MAROON,TRIM3#

main67610-24110-04iGZ10..V2198401-198512

W/*DM,BLUE,BLUE,TRIM8#

main67610-24120-02iGZ10,MZ10..TBO,VR198401-198512

W/*DM,DEEP MAROON,RED/MAROON,TRIM3#

main67610-24120-04iGZ10,MZ10..TBO,VR198401-198512

W/*DM,BLUE,BLUE,TRIM8#

main67610-24120-05iGZ10,MZ10..TBO,VR198401-198512

W/*DM,BEIGE,BEIGE,TRIM4#

main67610-24130-02iGZ10..VX198401-198512

W/*DM,DEEP MAROON,RED/MAROON,TRIM3#

main67610-24130-04iGZ10..VX198401-198512

W/*DM,BLUE,BLUE,TRIM8#

main67610-24130-05iGZ10..VX198401-198512

W/*DM,BEIGE,BEIGE,TRIM4#

main67610-24140-02iGZ10,MZ11,12..GT198401-198512

SPORTS SEAT,W/*DM,DEEP MAROON,RED/MAROON,TRIM3#

main67610-24140-04iGZ10,MZ11,12..GT198401-198512

SPORTS SEAT,W/*DM,BLUE,BLUE,TRIM8#

main67610-24140-05iGZ10,MZ11,12..GT198401-198512

SPORTS SEAT,W/*DM,BEIGE,BEIGE,TRIM4#

main67610-24150-02iMZ11,12..GT198401-198512

W/*DM,DEEP MAROON,RED/MAROON,TRIM3#

main67610-24150-04iMZ11,12..GT198401-198512

W/*DM,BLUE,BLUE,TRIM8#

main67610-24150-05iMZ11,12..GT198401-198512

W/*DM,BEIGE,BEIGE,TRIM4#

main67610-24160iMZ12..GTL198501-198512

W/*DM

main67610-24160iMZ11198401-198501

LIMITED,W/*DM,DEEP MAROON

main67610-24170iMZ11198401-198501

LIMITED,W/*LES&*DM,DEEP MAROON

main67610-24170iMZ12198501-198512

W/*DM & *LES

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-14010iGZ10,MZ1#198302-198512

STEEL

main67771-22010iGZ10,MZ1#198102-198512

PLASTIC

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-24010-01iGZ10..V1198102-198203

BLACK & GRAY,BLACK,TRIM2#

sub67620-24060

main67620-24010-02iGZ10..V1198102-198203

TERRA COTTA & L-BEIGE,RED/MAROON,TRIM3#

sub67620-24060

main67620-24010-04iGZ10..V1198102-198203

BLUE & LIGHT BLUE,BLUE,TRIM8#

sub67620-24060

main67620-24020-01iGZ10,MZ10..TBO,VR198102-198203

BLACK & GRAY,BLACK,TRIM2#

main67620-24020-02iGZ10,MZ10..TBO,VR198102-198302

TERRA COTTA & L-BEIGE,RED/MAROON,TRIM3#

main67620-24020-03iGZ10,MZ10..TBO,VR198203-198302

GRAY,GRAY,TRIM2#

main67620-24020-04iGZ10,MZ10..TBO,VR198102-198302

BLUE & LIGHT BLUE,BLUE,TRIM8#

main67620-24021-02iGZ10,MZ10..TBO,VR198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

main67620-24021-04iGZ10,MZ10..TBO,VR198302-198512

BLUE,BLUE,TRIM8#

main67620-24021-05iGZ10,MZ10..TBO,VR198302-198512

BEIGE,BEIGE,TRIM4#

main67620-24030-01iGZ10,MZ11..GT,VX198102-198203

BLACK & GRAY,BLACK,TRIM2#

main67620-24030-02iGZ10,MZ11..GT,VX198102-198302

TERRA COTTA & L-BEIGE,RED/MAROON,TRIM3#

main67620-24030-03iGZ10,MZ11..GT,VX198203-198302

GRAY,GRAY,TRIM2#

main67620-24030-04iGZ10,MZ11..GT,VX198102-198302

BLUE & LIGHT BLUE,BLUE,TRIM8#

main67620-24031-02iGZ10..VX198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

main67620-24031-04iGZ10..VX198302-198512

BLUE,BLUE,TRIM8#

main67620-24031-05iGZ10..VX198302-198512

BEIGE,BEIGE,TRIM4#

main67620-24040iMZ11198102-198302

*EXT,TERRA COTTA & L-BEIGE

main67620-24041-02iMZ11,12..GT198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

main67620-24041-04iMZ11,12..GT198302-198512

BLUE,BLUE,TRIM8#

main67620-24041-05iMZ11,12..GT198302-198512

BEIGE,BEIGE,TRIM4#

main67620-24050iMZ11198102-198302

W/LEATHER,TERRACOTTA & L-BEIGE

main67620-24051iMZ11198203-198302

LIMITED,TERRA COTTA & BROWN

main67620-24052iMZ12198501-198512

W/*LES

main67620-24052iMZ11198302-198501

LIMITED & W/*LES,DEEP MAROON

main67620-24060-01iGZ10,MZ10..V2198102-198203

BLACK & GRAY,BLACK,TRIM2#

main67620-24060-02iGZ10,MZ10..V2198102-198302

TERRA COTTA & L-BEIGE,RED/MAROON,TRIM3#

main67620-24060-03iGZ10,MZ10..V2198203-198302

GRAY,GRAY,TRIM2#

main67620-24060-04iGZ10,MZ10..V2198102-198302

BLUE & LIGHT BLUE,BLUE,TRIM8#

main67620-24061-02iGZ10..V2198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

main67620-24061-04iGZ10..V2198302-198512

BLUE,BLUE,TRIM8#

main67620-24080iMZ11198302-198501

LIMITED,DEEP MAROON

main67620-24080iMZ12..GTL198501-198512

main67620-24100-02iGZ10,MZ11,12..GT198302-198512

W/SPORTS SEAT,DEEP MAROON,RED/MAROON,TRIM3#

main67620-24100-04iGZ10,MZ11,12..GT198302-198512

W/SPORTS SEAT,BLUE,BLUE,TRIM8#

main67620-24100-05iGZ10,MZ11,12..GT198302-198512

W/SPORTS SEAT,BEIGE,BEIGE,TRIM4#

main67620-24110-02iGZ10..V2198401-198512

W/*DM,DEEP MAROON,RED/MAROON,TRIM3#

main67620-24110-04iGZ10..V2198401-198512

W/*DM,BLUE,BLUE,TRIM8#

main67620-24120-02iGZ10,MZ10..TBO,VR198401-198512

W/*DM,DEEP MAROON,RED/MAROON,TRIM3#

main67620-24120-04iGZ10,MZ10..TBO,VR198401-198512

W/*DM,BLUE,BLUE,TRIM8#

main67620-24120-05iGZ10,MZ10..TBO,VR198401-198512

W/*DM,BEIGE,BEIGE,TRIM4#

main67620-24130-02iGZ10..VX198401-198512

W/*DM,DEEP MAROON,RED/MAROON,TRIM3#

main67620-24130-04iGZ10..VX198401-198512

W/*DM,BLUE,BLUE,TRIM8#

main67620-24130-05iGZ10..VX198401-198512

W/*DM,BEIGE,BEIGE,TRIM4#

main67620-24140-02iGZ10,MZ11,12..GT198401-198512

SPORTS SEAT,W/*DM,DEEP MAROON,RED/MAROON,TRIM3#

main67620-24140-04iGZ10,MZ11,12..GT198401-198512

SPORTS SEAT,W/*DM,BLUE,BLUE,TRIM8#

main67620-24140-05iGZ10,MZ11,12..GT198401-198512

SPORTS SEAT,W/*DM,BEIGE,BEIGE,TRIM4#

main67620-24150-02iMZ11,12..GT198401-198512

W/*DM,DEEP MAROON,RED/MAROON,TRIM3#

main67620-24150-04iMZ11,12..GT198401-198512

W/*DM,BLUE,BLUE,TRIM8#

main67620-24150-05iMZ11,12..GT198401-198512

W/*DM,BEIGE,BEIGE,TRIM4#

main67620-24160iMZ12..GTL198501-198512

W/*DM

main67620-24160iMZ11198401-198501

LIMITED,W/*DM,DEEP MAROON

main67620-24170iMZ12198501-198512

W/*DM & *LES

main67620-24170iMZ11198401-198501

LIMITED,W/*LES&*DM,DEEP MAROON

67777POCKET, FRONT DOOR TRIM, RH

main67770-24010-02iGZ10,MZ10..TBO,V2,VR198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

main67770-24010-04iGZ10,MZ10..TBO,V2,VR198302-198512

BLUE,BLUE,TRIM8#

main67770-24010-05iGZ10,MZ10..TBO,V2,VR198302-198512

BEIGE,BEIGE,TRIM4#

main67770-24020-02iGZ10,MZ11,12..GT,VX198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

main67770-24020-04iGZ10,MZ11,12..GT,VX198302-198512

BLUE,BLUE,TRIM8#

main67770-24020-05iGZ10,MZ11,12..GT,VX198302-198512

BEIGE,BEIGE,TRIM4#

main67770-24030iMZ11198302-198501

LIMITED,DEEP MAROON

main67770-24030iMZ12..GTL198501-198512

67778POCKET, FRONT DOOR TRIM, LH

main67770-24040-02iGZ10,MZ10..TBO,V2,VR198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

main67770-24040-04iGZ10,MZ10..TBO,V2,VR198302-198512

BLUE,BLUE,TRIM8#

main67770-24040-05iGZ10,MZ10..TBO,V2,VR198302-198512

BEIGE,BEIGE,TRIM4#

main67770-24050-02iGZ10,MZ11,12..GT,VX198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

main67770-24050-04iGZ10,MZ11,12..GT,VX198302-198512

BLUE,BLUE,TRIM8#

main67770-24050-05iGZ10,MZ11,12..GT,VX198302-198512

BEIGE,BEIGE,TRIM4#

main67770-24060iMZ11198302-198501

LIMITED,DEEP MAROON

main67770-24060iMZ12..GTL198501-198512

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-24010iGZ10..V1198102-198203

main67831-24030iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198203

sub67831-24040

main67831-24040iGZ10,MZ1#198203-198512

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-24010iGZ10,MZ1#198102-198512

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-24010iGZ10,MZ1#198102-198512

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-24010iGZ10,MZ1#198102-198512

67867CLIP, DOOR WEATHERSTRIP

main67868-30030-01iGZ10,MZ1#198102-198505

BLACK,BLACK,TRIM2#

sub67868-30030

main67869-30020iGZ10,MZ1#198505-198512

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67868-30040iGZ10,MZ1#198102-198512

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-24010iGZ10,MZ1#198102-198512

*TT,T=5.0

main68111-24020iGZ10,MZ1#..GT,TBO,VR,VX198102-198512

BRONZE,*TT,T=5.0

main68111-24030iGZ10,MZ10198401-198512

W/DOOR MIRROR,*TT,T=5.0

main68111-24040iMZ11,12198401-198512

W/DOOR MIRROR,BRONZE,*TT,T=5.0

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-24010iGZ10,MZ1#198102-198512

*TT,T=5.0

main68112-24020iMZ11,12198102-198512

BRONZE,*TT,T=5.0

main68112-24030iGZ10,MZ10198401-198512

W/DOOR MIRROR,*TT,T=5.0

main68112-24040iMZ11,12198401-198512

W/DOOR MIRROR,BRONZE,*TT,T=5.0

68141RUN, FRONT DOOR GLASS

main68141-24010iGZ10,MZ1#198102-198512

RH

main68141-24020iGZ10,MZ1#198401-198512

RH,W/DOOR MIRROR

main68151-24010iGZ10,MZ1#198102-198512

LH

main68151-24020iGZ10,MZ1#198401-198512

LH,W/DOOR MIRROR

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-24010iGZ10,MZ1#198102-198512

RH

main68170-24020iGZ10,MZ1#198401-198512

RH,W/DOOR MIRROR

main68220-24010iGZ10,MZ1#198102-198512

LH

main68220-24020iGZ10,MZ1#198401-198512

LH,W/DOOR MIRROR

68194SEAL, FRONT DOOR BELT, RH

main68192-24010iGZ10,MZ1#198102-198512

FR

main68192-24020iGZ10,MZ1#198401-198512

FR,W/DOOR MIRROR

main68194-24010iGZ10,MZ1#198102-198512

RR

68195SEAL, FRONT DOOR BELT, LH

main68193-24010iGZ10,MZ1#198102-198512

FR

main68193-24020iGZ10,MZ1#198401-198512

FR,W/DOOR MIRROR

main68195-24010iGZ10,MZ1#198102-198512

RR

68401GUIDE SUB-ASSY, FRONT DOOR WINDOW, RH

main67401-24010iGZ10,MZ1#198102-198512

68402GUIDE SUB-ASSY, FRONT DOOR WINDOW, LH

main67402-24010iGZ10,MZ1#198102-198512

68403GUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR RH

main67403-24010iGZ10,MZ1#198102-198512

68404GUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR LH

main67404-24010iGZ10,MZ1#198102-198512

68610CHECK ASSY, FRONT DOOR

main68610-24010iGZ10,MZ1#198102-198512

68610APIN(FOR FRONT DOOR CHECK)

main68617-30010iGZ10,MZ1#198102-198507

sub68617-90K00

main68617-90K00iGZ10,MZ1#198507-198512

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010

9015940111

main90159-40111

9016840025

main90168-40025

9017906070

main90179-06070

9017908123

main90179-08123

9018304057

main90183-04057

9095001038

main90950-01038

9165540620

main91655-40620

41 parts on this diagram · 1 diagram in section
