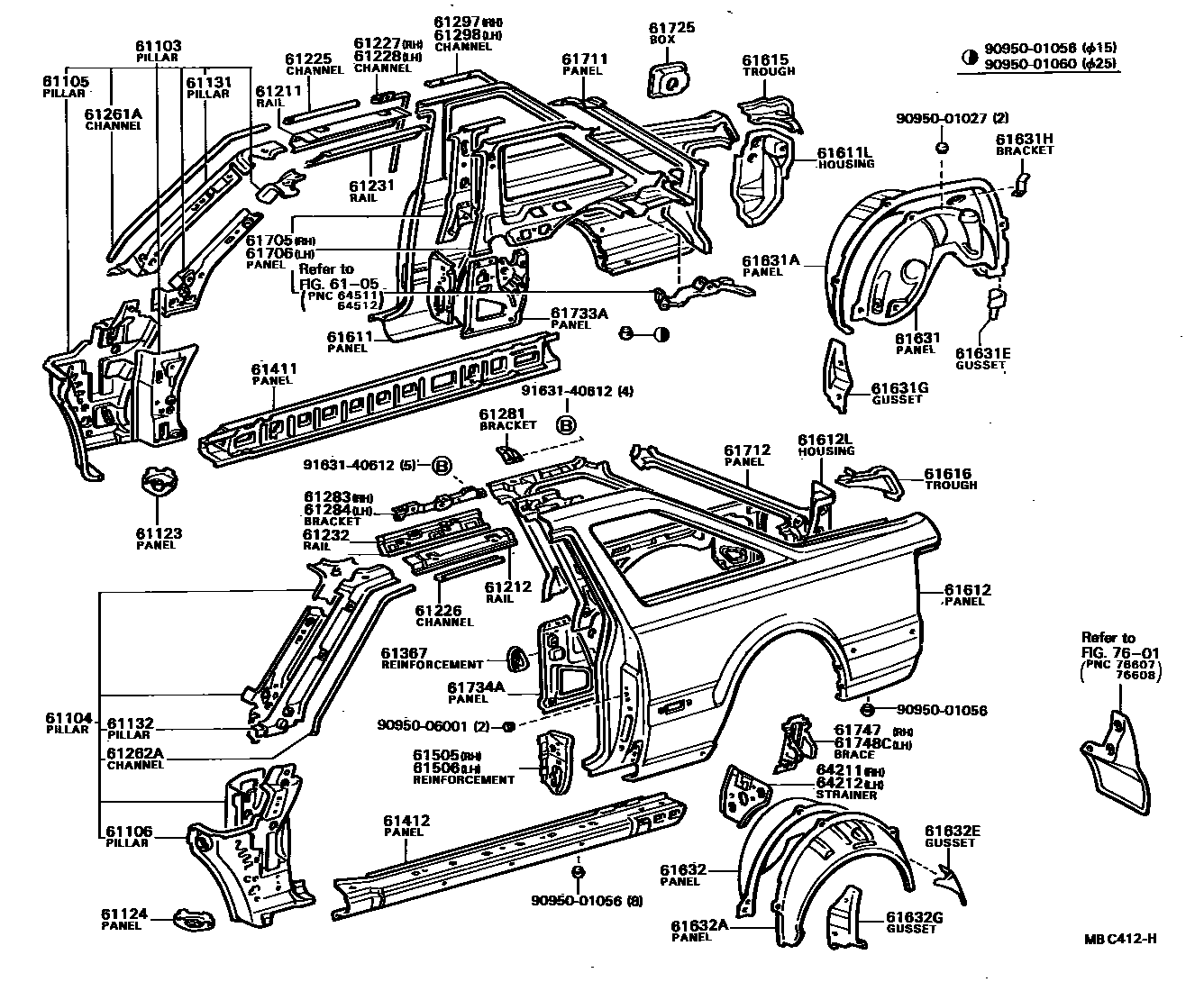

SIDE MEMBER
6105
61103PILLAR SUB-ASSY, FRONT BODY, RH
61104PILLAR SUB-ASSY, FRONT BODY, LH
61105PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, RH
61106PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, LH
61123PANEL, COWL SIDE LOWER, RH
61124PANEL, COWL SIDE LOWER, LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61225CHANNEL, ROOF DRIP, CENTER RH
61226CHANNEL, ROOF DRIP, CENTER LH
61227CHANNEL, ROOF DRIP SIDE, REAR RH
61228CHANNEL, ROOF DRIP SIDE, REAR LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61261ACHANNEL, ROOF DRIP SIDE, FRONT RH
61262ACHANNEL, ROOF DRIP SIDE, FRONT LH
61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1
W/SUN ROOF
61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH
W/SUN ROOF
61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH
W/SUN ROOF
61297CHANNEL, ROOF DRIP SIDE, REAR NO.2, RH
61298CHANNEL, ROOF DRIP SIDE, REAR NO.2, LH
61367REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61505REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, RH
61506REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, LH
61611LHOUSING, QUARTER PANEL END, RH
61612PANEL, QUARTER, LH
61612LHOUSING,QUARTER PANEL END, LH
61615TROUGH, LUGGAGE COMPARTMENT OPENING, RH
61616TROUGH, LUGGAGE COMPARTMENT OPENING, LH
61631PANEL, QUARTER WHEEL HOUSE, RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61631EGUSSET, QUARTER WHEEL HOUSE, REAR RH
61631GGUSSET, QUARTER WHEEL HOUSE, FRONT RH
61631HBRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.2
RH
61632PANEL, QUARTER WHEEL HOUSE, LH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61632EGUSSET, QUARTER WHEEL HOUSE, REAR LH
61632GGUSSET, QUARTER WHEEL HOUSE, FRONT LH
61705PANEL SUB-ASSY, ROOF SIDE, INNER RH
61706PANEL SUB-ASSY, ROOF SIDE, INNER LH
61711PANEL, ROOF SIDE, OUTER RH
61712PANEL, ROOF SIDE, OUTER LH
61725BOX, FUEL INLET
61733APANEL, ROOF SIDE, INNER FRONT RH
61734APANEL, ROOF SIDE, INNER FRONT LH
61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH
64211STRAINER, PACKAGE TRAY TO FLOOR, RH
64212STRAINER, PACKAGE TRAY TO FLOOR, LH
7601
9095001027
main90950-01027
9095001056
main90950-01056
9095001060
main90950-01060
9095006001
main90950-06001
9163140612
main91631-40612
61 parts on this diagram · 1 diagram in section
