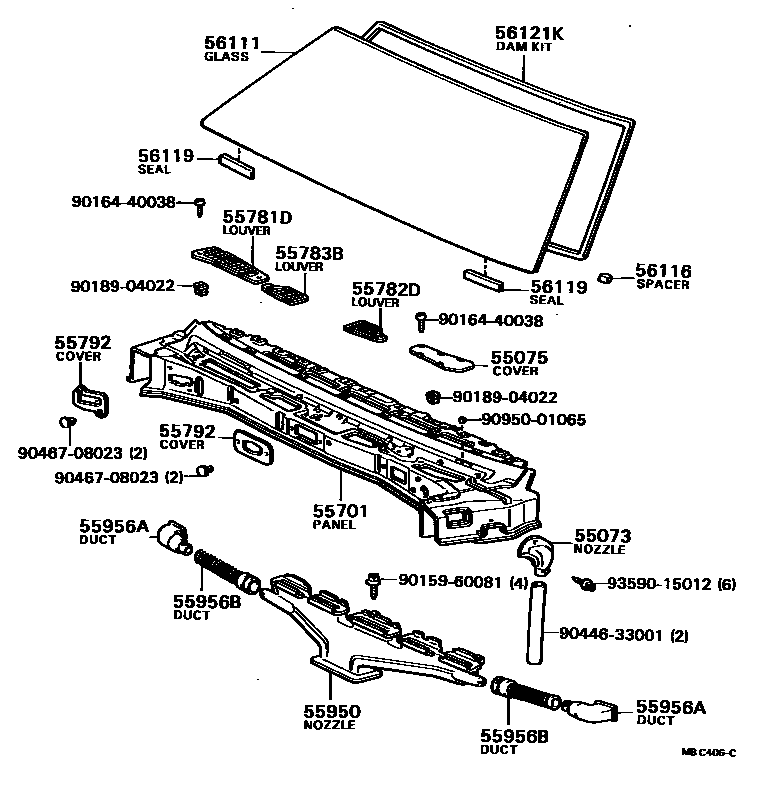

COWL PANEL & WINDSHIELD GLASS

55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT

main55073-24010iGZ10,MZ1#198102-198512

55075COVER SUB-ASSY, HEATER AIR DUCT HOLE

main55792-24010iGZ10,MZ1#198102-198205

55701PANEL SUB-ASSY, COWL

main55700-24010iGZ10¥49,300198102-198302

sub55700-24011

main55700-24011iGZ10..V2,VR,VX198302-198512

main55700-24020iMZ1#¥49,300198102-198302

sub55700-24021¥49,200

main55700-24021iGZ10,MZ1#..GT,GTL,TBO¥49,200198302-198512

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-24010iGZ10,MZ1#198102-198512

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-24020iGZ10,MZ1#¥1,340198102-198512

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55781-24020iGZ10,MZ1#¥500198102-198512

55792COVER, WIPER MOTOR SERVICE HOLE

main55793-24010iGZ10,MZ1#¥750198102-198512

CTR

main55793-24030iGZ10,MZ1#198102-198512

RH

55950NOZZLE ASSY, DEFROSTER

main55950-24010iGZ10,MZ1#198102-198512

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-24010iGZ10,MZ1#198102-198512

55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-24010iGZ10,MZ1#198102-198512

56111GLASS, WINDSHIELD

main56111-24010iMZ10¥127,000198102-198302

*TL,T=4.7

sub56111-24011¥127,000

main56111-24011iGZ10,MZ10..GT,TBO,VX¥127,000198302-198512

*TL,T=4.7

main56111-24020iGZ10,MZ10..TBO,V1,V2,VR¥62,800198102-198302

*TZT,T=5.0

sub56111-24021¥62,800

main56111-24021iGZ10..V2,VR¥62,800198302-198512

*TZT,T=5.0

sub56111-24011¥127,000

main56111-24030iGZ10,MZ11..GT,VR,VX¥173,000198102-198203

BRONZE,*LAM,T=5.7

sub56111-24041¥133,000

main56111-24040iMZ11¥133,000198203-198302

BRONZE,*LAM,T=4.7

sub56111-24041¥133,000

main56111-24041iMZ11,12¥133,000198302-198512

BRONZE,*LAM,T=4.7

56116SPACER, WINDSHIELD GLASS

main56116-24010iGZ10,MZ1#¥230198102-198512

56119SEAL, WINDSHIELD GLASS

main56119-24010iGZ10,MZ1#¥1,030198102-198512

56121KDAM KIT, WINDSHIELD GLASS

main04562-30030iGZ10,MZ1#¥2,680198102-198308

sub04562-30040¥2,390

main04562-30040iGZ10,MZ1#¥2,390198308-198512

9015960081

main90159-60081¥70

9016440038

main90164-40038¥130

9018904022

main90189-04022¥70

9044633001

main90446-33001

9046708023

main90467-08023¥130

9095001065

main90950-01065¥280

9359015012

main93590-15012¥60

21 parts on this diagram · 1 diagram in section
