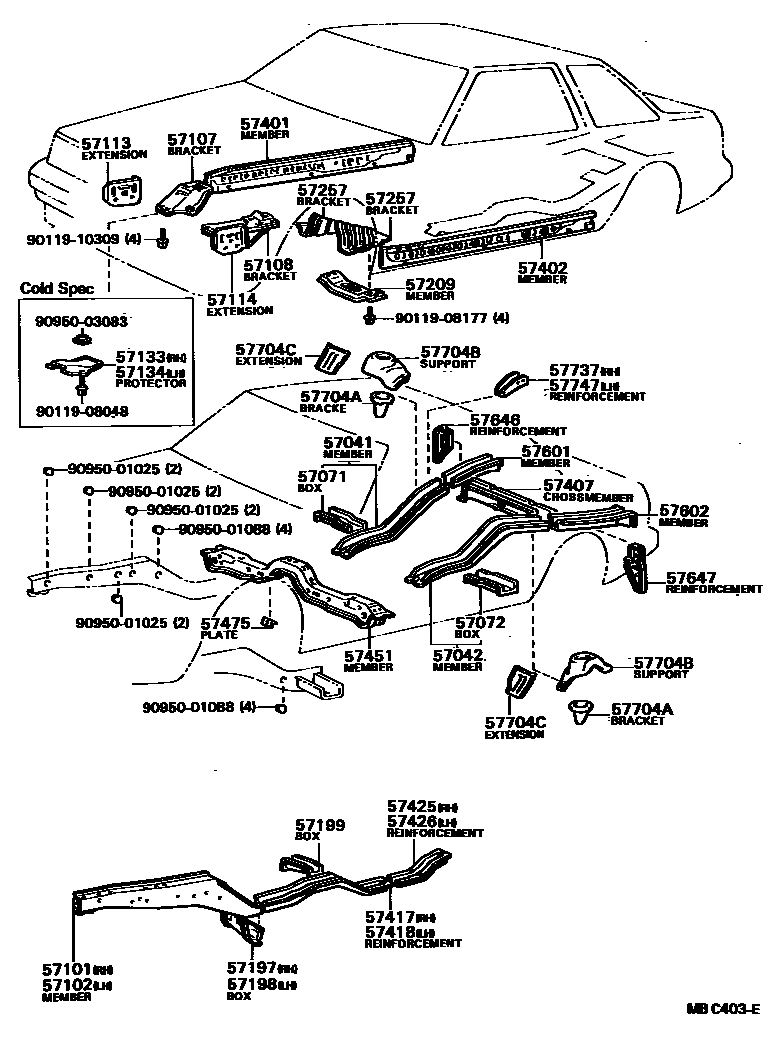

FLOOR SIDE MEMBER
57041MEMBER SUB-ASSY, CENTER FLOOR SIDE, RH
57042MEMBER SUB-ASSY, CENTER FLOOR SIDE, LH
57071BOX SUB-ASSY, TORQUE, REAR RH
57072BOX SUB-ASSY, TORQUE, REAR LH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57107BRACKET SUB-ASSY, STRUT BAR, RH
57108BRACKET SUB-ASSY, STRUT BAR, LH
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57133PROTECTOR, STRUT BAR BRACKET, RH
COLD SPEC
57134PROTECTOR, STRUT BAR BRACKET, LH
COLD SPEC
57197BOX, TORQUE, FRONT RH
57198BOX, TORQUE, FRONT LH
57199BOX, TORQUE, FRONT, NO.2
57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT
57257BRACKET, ENGINE REAR SUPPORT MEMBER
RH
LH
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57425REINFORCEMENT, FRONT FLOOR, NO.2 RH
57426REINFORCEMENT, FRONT FLOOR, NO.2 LH
57451MEMBER, FRONT FLOOR CROSS
57475PLATE, FRONT FLOOR CROSSMEMBER
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57646REINFORCEMENT, REAR SIDE MEMBER TO BODY, RH
57647REINFORCEMENT, REAR SIDE MEMBER TO BODY, LH
57704ABRACKET, REAR AXLE BUMPER
RH
LH
57704BSUPPORT, REAR SUSPENSION SPRING
RH
LH
57704CEXTENSION, CENTER FLOOR TO PACKAGE TRAY
RH
LH
57737REINFORCEMENT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, RH
57747REINFORCEMENT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, LH
9011908048
main90119-08048
9011908177
main90119-08177
9011910309
main90119-10309
9095001025
main90950-01025
9095001088
main90950-01088
9095003083
main90950-03083
41 parts on this diagram · 1 diagram in section
