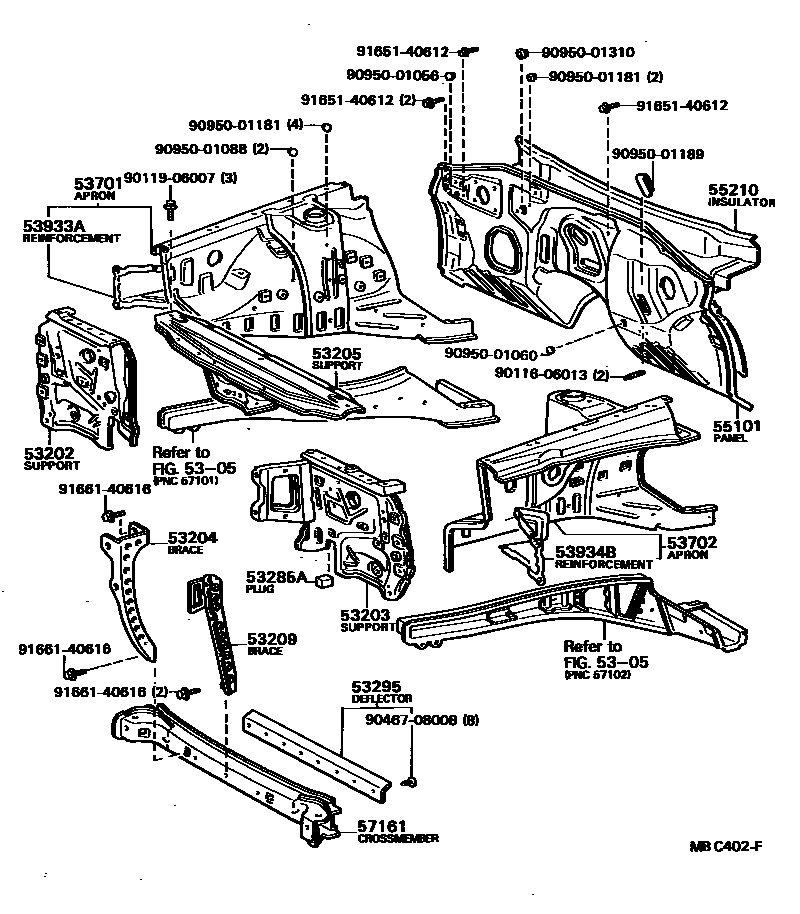

FRONT FENDER APRON & DASH PANEL

5305

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-24010iGZ10,MZ1#198102-198512

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-24900iGZ10,MZ1#198102-198512

sub53203-24901

sub88714-24090

sub88716-24042

53204BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER

main53217-24010iGZ10,MZ1#198102-198512

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-24010iGZ10,MZ11198102-198302

main53205-24020iMZ10198107-198302

53209BRACE SUB-ASSY, HOOD LOCK

main53208-24010iGZ10,MZ1#198102-198302

main53208-24011iGZ10,MZ1#198302-198512

53285APLUG, FRONT BUMPER ARM HOLE

main53285-24010×2iMZ11198102-198302

31X31X50

main53285-24020×2iGZ10,MZ1#..GT,GTL,TBO198302-198512

34X40X50

53295DEFLECTOR, RADIATOR LOWER AIR

main53295-14030iGZ10,MZ1#198102-198512

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-24010iGZ10,MZ1#198102-198512

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-24010iGZ10198104-198302

main53702-24020iGZ10,MZ11198102-198104

COLD SPEC

53933AREINFORCEMENT, FRONT END PANEL, RH

main53933-24010iGZ10,MZ1#198311-198512

53934BREINFORCEMENT, FRONT END PANEL, LH

main53934-24010iGZ10,MZ1#198311-198512

55101PANEL SUB-ASSY, DASH

main55101-24020iGZ10,MZ1#198102-198303

main55101-24021iGZ10,MZ1#198303-198512

55210INSULATOR ASSY, DASH PANEL

main55210-24010iGZ10,MZ11..5F198102-198203

main55210-24020iGZ10,MZ1#..4FC198102-198203

57161CROSSMEMBER, FRONT

main57104-24010iGZ10,MZ1#198102-198512

9011606013

main90116-06013

9011906007

main90119-06007

9046708008

main90467-08008

9095001056

main90950-01056

9095001060

main90950-01060

9095001088

main90950-01088

9095001181

main90950-01181

9095001189

main90950-01189

9095001310

main90950-01310

9165140612

main91651-40612

9166140616

main91661-40616

26 parts on this diagram · 1 diagram in section
