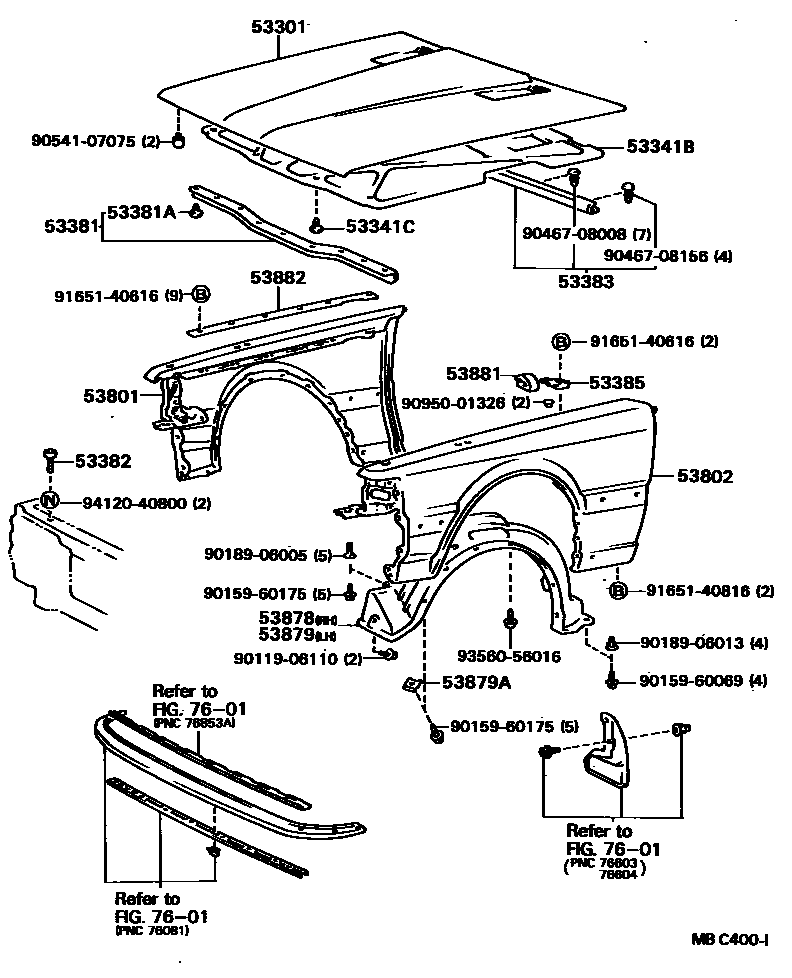

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-24010iGZ10,MZ1#198102-198512

53341BINSULATOR, HOOD

main53341-24010iGZ10,MZ11198102-198302

sub53341-24021

main53341-24020iMZ10198107-198302

sub53341-24021

main53341-24021iMZ10198302-198512

main53341-24030iGZ10,MZ11,12198302-198512

53341CCLIP(FOR HOOD INSULATOR)

main90467-09008iGZ10,MZ11,12198102-198512

PLASTIC

main90467-13009iMZ10198107-198512

STEEL

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-24010iGZ10,MZ1#198102-198512

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iGZ10,MZ1#198102-198512

53382BUMPER, HOOD, FRONT

main53382-20011iGZ10,MZ1#198102-198512

sub53382-90A00

53383SEAL, HOOD TO COWL TOP

main53383-24010iGZ10,MZ1#198102-198512

53385RETAINER, HOOD, BUMPER

main53385-14010iGZ10,MZ1#198102-198512

LH

main53386-14010iGZ10,MZ1#198102-198512

RH

53801FENDER SUB-ASSY, FRONT RH

main53801-24010iGZ10,MZ1#198102-198302

main53801-24011iGZ10,MZ1#198302-198512

main53801-24030iGZ10,MZ1#198401-198512

W/DOOR MIRROR

53802FENDER SUB-ASSY, FRONT LH

main53802-24010iGZ10,MZ1#198102-198302

main53802-24011iGZ10,MZ1#198302-198512

main53802-24030iGZ10,MZ1#198401-198512

W/DOOR MIRROR

53878LINER, FRONT FENDER, RH

main53875-24010iGZ10,MZ1#198102-198512

53879LINER, FRONT FENDER, LH

main53876-24010iGZ10,MZ1#198102-198512

53879ARETAINER, FRONT FENDER LINER

main53879-22010iGZ10,MZ1#198102-198512

53881BUMPER, FENDER TO HOOD

main53384-14030iGZ10,MZ1#198102-198512

53882PACKING, FRONT FENDER MAIN

main53882-24010iGZ10,MZ1#198102-198512

7601

9011906110

main90119-06110

9015960069

main90159-60069

9015960175

main90159-60175

9018906005

main90189-06005

9018906013

main90189-06013

9046708008

main90467-08008

9046708156

main90467-08156

9054107075

main90541-07075

9095001326

main90950-01326

9165140616

main91651-40616

9165140816

main91651-40816

9356056016

main93560-56016

9412040800

main94120-40800

29 parts on this diagram · 1 diagram in section
