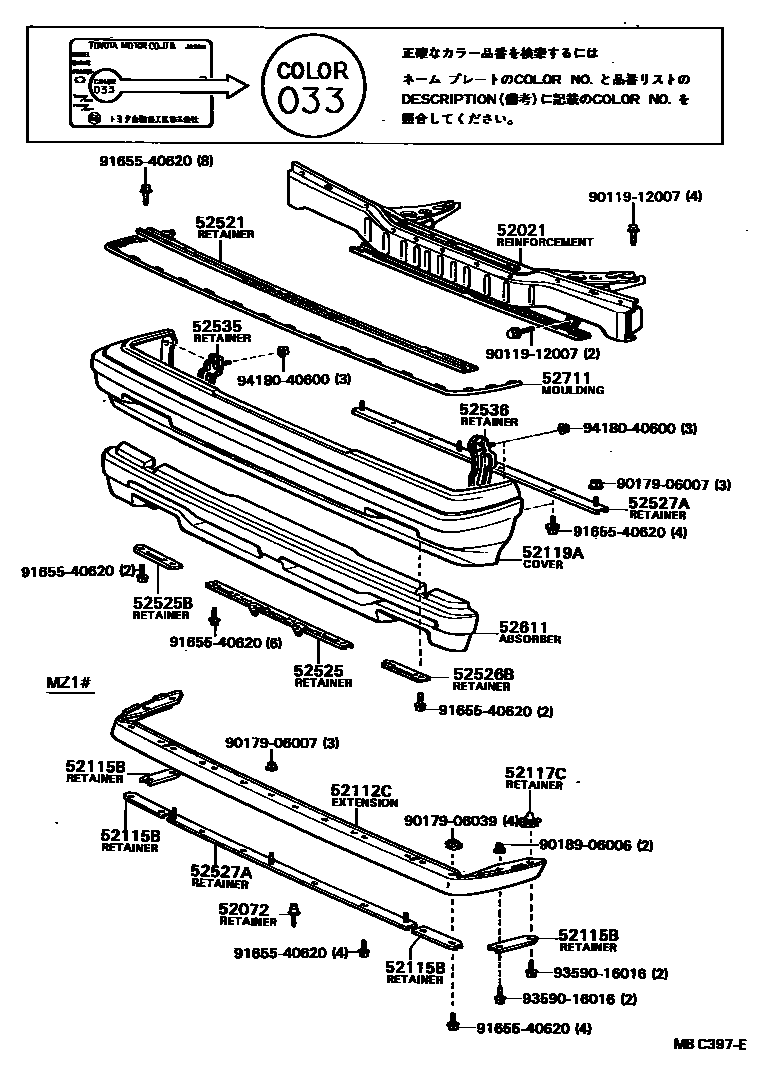

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-24010iGZ10,MZ1#198102-198302

main52021-24011iGZ10,MZ1#198302-198512

STEEL

main52021-24020iGZ10..4FC..GT198302-198512

ALUMINUM

52072RETAINER SUB-ASSY, FRONT BUMPER, LOWER

main52072-24010iMZ1#198102-198302

main52072-24011iGZ10,MZ1#198302-198512

52112CEXTENSION, FRONT BUMPER

main52112-24010-02iMZ11198102-198107

RED-M,RED/MAROON,3A3

sub52112-24901

main52112-24010-03iMZ1#198102-198302

SILVER-M,GRAY,139 ,2E6

sub52112-24901

main52112-24010-04iMZ1#198102-198203

BLUE-M,BLUE,889

sub52112-24901

main52112-24010-05iMZ1#198102-198203

LIGHT BEIGE,BEIGE,4A8

sub52112-24901

main52112-24010-06iMZ1#198102-198302

CINNAMON BROWN-M,BROWN,2B2

sub52112-24901

main52112-24010-07iMZ1#198203-198302

LIGHT GREEN-M,GREEN,6E9

sub52112-24901

main52112-24010-08iMZ1#198102-198203

WHITE,IVORY,033

sub52112-24901

main52112-24010-12iMZ1#198102-198302

DARK PLAM-M,RED/MAROON,3A4 ,2E5

sub52112-24901

main52112-24010-14iMZ1#198203-198302

BLUE-M,BLUE,896

sub52112-24901

main52112-24010-18iMZ1#198102-198302

SUPER WHITE,IVORY,035

sub52112-24901

main52112-24010-22iMZ1#198107-198302

RED,RED/MAROON,391

sub52112-24901

52115BRETAINER, FRONT BUMPER EXTENSION, NO.1

main52115-24010iMZ1#198102-198512

52117CRETAINER, FRONT BUMPER EXTENSION, NO.2

main52117-24010iMZ1#198102-198302

52119ACOVER, FRONT BUMPER

main52119-24010-02iGZ10,MZ11..GT,V2,VR,VX198102-198107

W/*HC,RED-M,RED/MAROON,3A3

sub52119-24011

main52119-24010-03iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198108

W/*HC,SILVER-M,GRAY,139

sub52119-24011

main52119-24010-04iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198108

W/*HC,BLUE-M,BLUE,889

sub52119-24011

main52119-24010-05iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198108

W/*HC,LIGHT BEIGE,BEIGE,4A8

sub52119-24011

main52119-24010-06iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198108

W/*HC,CINNAMON BROWN-M,BROWN,2B2

sub52119-24011

main52119-24010-08iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198108

W/*HC,WHITE,IVORY,033

sub52119-24011

main52119-24010-12iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198108

W/*HC,DARK PLAM-M,RED/MAROON,3A4 ,2E5

sub52119-24011

main52119-24010-18iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198108

W/*HC,SUPER WHITE & BLUE,IVORY,035

sub52119-24011

main52119-24010-22iGZ10,MZ1#..GT,TBO,V2,VR,VX198107-198108

W/*HC,RED,RED/MAROON,391

sub52119-24011

main52119-24010-28iMZ11198107-198108

W/*HC,SUPER WHITE,D-BROWN,IVORY,035

sub52119-24011

main52119-24011-03iGZ10,MZ1#..GT,TBO,V2,VR,VX198108-198203

W/*HC,SILVER-M,GRAY,139

sub52119-24900

main52119-24011-04iGZ10,MZ1#..GT,TBO,V2,VR,VX198108-198203

W/*HC,BLUE-M,BLUE,889

sub52119-24900

main52119-24011-05iGZ10,MZ1#..GT,TBO,V2,VR,VX198108-198203

W/*HC,LIGHT BEIGE,BEIGE,4A8

sub52119-24900

main52119-24011-06iMZ11198108-198302

W/*HC,CINNAMON BROWN-M,BROWN,2B2

sub52119-24900

main52119-24011-07iMZ11198203-198302

W/*HC,LIGHT GREEN-M,GREEN,6E9

sub52119-24900

main52119-24011-08iGZ10,MZ1#..GT,TBO,V2,VR,VX198108-198203

W/*HC,WHITE,IVORY,033

sub52119-24900

main52119-24011-12iGZ10,MZ1#..GT,TBO,V2,VR,VX198108-198302

W/*HC,DARK PLAM-M,RED/MAROON,3A4 ,2E5

sub52119-24900

main52119-24011-13iMZ11198203-198302

W/*HC,SILVER-M,GRAY,2E6

sub52119-24900

main52119-24011-14iMZ11198203-198302

W/*HC,BLUE-M,BLUE,896

sub52119-24900

main52119-24011-18iMZ11198108-198302

W/*HC,SUPER WHITE & BLUE,IVORY,035

sub52119-24900

main52119-24011-22iMZ11198108-198302

W/*HC,RED,RED/MAROON,391

sub52119-24900

main52119-24011-28iMZ11198108-198302

W/*HC,SUPER WHITE,D-BROWN,IVORY,035

sub52119-24900

main52119-24012-02iMZ11198302-198408

W/*HC,SUPER RED,RED/MAROON,3D1

main52119-24012-03iMZ11198302-198512

W/*HC,SUPER SILVER-M,GRAY,150

main52119-24012-05iMZ11198302-198501

W/*HC,BEIGE,BEIGE,2M6

main52119-24012-06iMZ12198302-198512

W/*HC,BROWN-M,BROWN,2M5

main52119-24012-08iMZ11198302-198501

W/*HC,SUPER WHITE & BROWN,IVORY,035

main52119-24012-12iMZ11,12198408-198512

W/*HC,SUPER RED 2,RED/BLACK,3E5

main52119-24012-15iMZ12198501-198512

W/*HC,BEIGE & WHITE,BEIGE/WHITE,2U9

main52119-24012-18iMZ12198501-198512

W/*HC,SUPER WHITE2 &BROWN,WHITE/BROWN,040

main52119-24020-02iGZ10,MZ11198102-198107

RED-M,RED/MAROON,3A3

sub52119-24021

main52119-24020-03iGZ10,MZ1#198102-198108

SILVER-M,GRAY,139

sub52119-24021

main52119-24020-04iGZ10,MZ1#198102-198108

BLUE-M,BLUE,889

sub52119-24021

main52119-24020-05iGZ10,MZ1#198102-198108

LIGHT BEIGE,BEIGE,4A8

sub52119-24021

main52119-24020-06iGZ10,MZ1#198102-198108

CINNAMON BROWN-M,BROWN,2B2

sub52119-24021

main52119-24020-08iGZ10,MZ1#198102-198108

WHITE,IVORY,033

sub52119-24021

main52119-24020-12iGZ10,MZ1#198102-198108

DARK PLAM-M,RED/MAROON,3A4 ,2E5

sub52119-24021

main52119-24020-18iGZ10,MZ1#198102-198108

SUPER WHITE & BLUE,IVORY,035

sub52119-24021

main52119-24020-22iGZ10,MZ1#198107-198108

RED,RED/MAROON,391

sub52119-24021

main52119-24020-28iMZ11198107-198108

SUPER WHITE & D-BROWN,IVORY,035

sub52119-24021

main52119-24021-03iGZ10,MZ1#198108-198203

SILVER-M,GRAY,139

sub52119-24901

main52119-24021-04iGZ10,MZ1#198108-198203

BLUE-M,BLUE,889

sub52119-24901

main52119-24021-05iGZ10,MZ1#198108-198203

LIGHT BEIGE,BEIGE,4A8

sub52119-24901

main52119-24021-06iGZ10,MZ1#198108-198302

CINNAMON BROWN-M,BROWN,2B2

sub52119-24901

main52119-24021-07iGZ10,MZ1#198203-198302

LIGHT GREEN-M,GREEN,6E9

sub52119-24901

main52119-24021-08iGZ10,MZ1#198108-198203

WHITE,IVORY,033

sub52119-24901

main52119-24021-12iGZ10,MZ1#198108-198302

DARK PLAM-M,RED/MAROON,3A4 ,2E5

sub52119-24901

main52119-24021-13iMZ11198203-198302

SILVER-M,GRAY,2E6

sub52119-24901

main52119-24021-14iGZ10,MZ1#198203-198302

BLUE-M,BLUE,896

sub52119-24901

main52119-24021-18iGZ10,MZ1#198108-198302

SUPER WHITE & BLUE,IVORY,035

sub52119-24901

main52119-24021-22iGZ10,MZ1#198108-198302

RED,RED/MAROON,391

sub52119-24901

main52119-24021-28iMZ11198108-198302

SUPER WHITE & D-BROWN,IVORY,035

sub52119-24901

main52119-24022-02iGZ10,MZ1#198302-198408

SUPER RED,RED/MAROON,3D1

main52119-24022-03iGZ10,MZ1#198302-198512

SUPER SILVER-M,GRAY,150

main52119-24022-05iGZ10,MZ1#198302-198501

BEIGE,BEIGE,2M6

main52119-24022-06iGZ10,MZ1#198302-198512

BROWN-M,BROWN,2M5

main52119-24022-08iGZ10,MZ1#198302-198501

SUPER WHITE & BROWN,IVORY,035

main52119-24022-12iGZ10,MZ1#198408-198512

SUPER RED 2,RED/BLACK,3E5

main52119-24022-13iGZ10,MZ1#198302-198512

GRAY-M,GRAY,2M7

main52119-24022-18iGZ10,MZ1#198302-198501

SUPER WHITE & BLUE,IVORY,035

main52119-24022-28iGZ10,MZ1#198501-198512

SUPER WHITE 2 & BROWN,WHITE/BROWN,040

main52119-24022-38iGZ10,MZ1#198501-198512

SUPER WHITE 2 & BLUE,WHITE/BLUE,040

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-24010iGZ10,MZ1#198102-198302

52525RETAINER, FRONT BUMPER, LOWER CENTER

main52071-24010iGZ10,MZ1#198302-198512

main52525-24010iGZ10,MZ1#198102-198302

52525BRETAINER, FRONT BUMPER, LOWER SIDE RH

main52526-14010iGZ10,MZ1#198102-198302

52526BRETAINER, FRONT BUMPER, LOWER SIDE LH

main52526-14010iGZ10,MZ1#198102-198302

52527ARETAINER, FRONT BUMPER, LOWER CENTER NO.2

main52527-24010iGZ10,MZ1#198102-198302

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-24010iGZ10,MZ1#198102-198302

main52535-24011iGZ10,MZ1#198302-198512

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-24010iGZ10,MZ1#198102-198302

main52536-24011iGZ10,MZ1#198302-198512

52611ABSORBER, FRONT BUMPER ENERGY

main52611-24010iGZ10,MZ1#198102-198108

sub52611-24011

main52611-24011iGZ10,MZ1#198108-198302

main52611-24012iGZ10,MZ1#198302-198512

52711MOULDING, FRONT BUMPER

main52711-24010-01iGZ10,MZ1#198102-198302

BLACK,BLACK

sub52711-24010

main52711-24010-04iGZ10,MZ1#198102-198302

BLUE,BLUE

sub52711-24010

main52711-24010-06iGZ10,MZ1#198102-198302

DARK BROWN,BROWN

sub52711-24010

main52711-24010-16iMZ11198203-198302

LIMITED,BROWN,BROWN

sub52711-24010

main52711-24011iGZ10,MZ1#198302-198512

9011912007

main90119-12007

9017906007

main90179-06007

9017906039

main90179-06039

9018906006

main90189-06006

9165540620

main91655-40620

9359016016

main93590-16016

9418040600

main94180-40600

22 parts on this diagram · 2 diagrams in section
