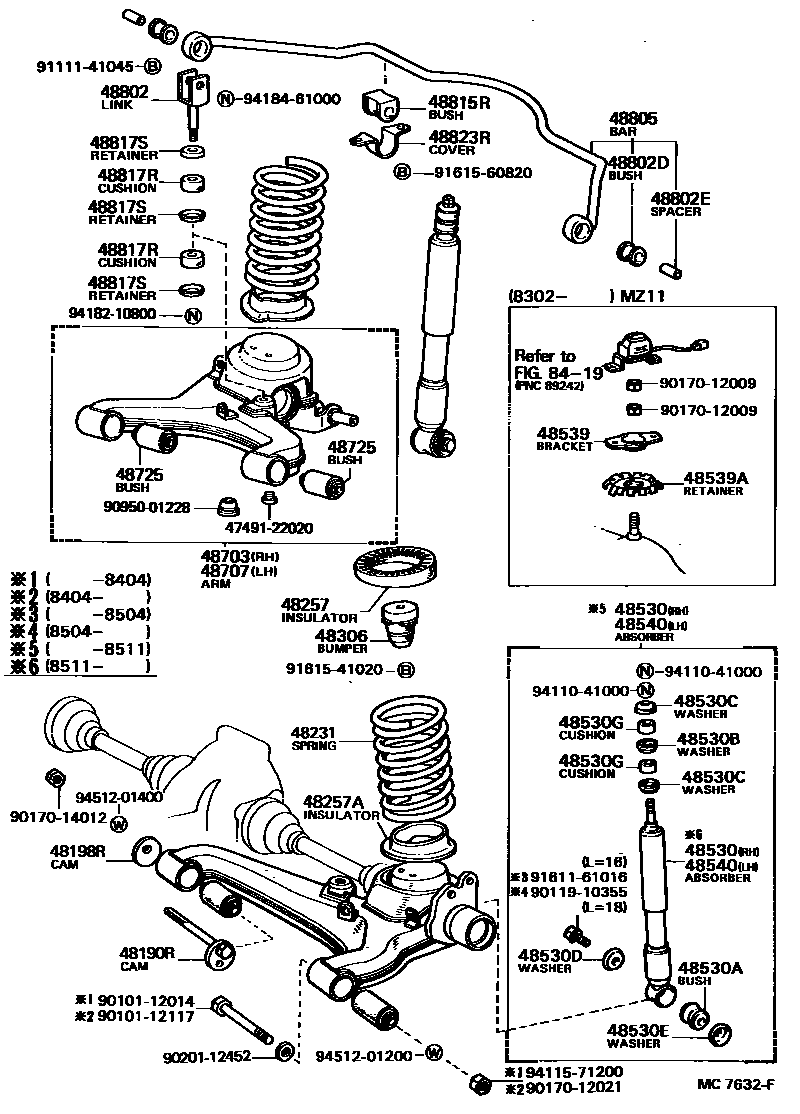

REAR SPRING & SHOCK ABSORBER

48190RCAM ASSY, CAMBER ADJUST

main48190-22010iGZ10,MZ1#198102-198512

48198RCAM, REAR SUSPENSION CAMBER ADJUST, NO.2

main48198-22010iGZ10,MZ1#198102-198512

48231SPRING, COIL, REAR

main48231-14641iGZ10,MZ10..GT,TBO,VR198302-198512

main48231-24010iGZ10..V1,V2,VX198102-198512

main48231-24020iMZ1#198102-198302

main48231-24030iGZ10..VR198102-198302

main48231-24040iMZ11198302-198312

main48231-24050iMZ11,12198312-198512

48257INSULATOR, REAR COIL SPRING

main48257-22030iGZ10,MZ1#198102-198512

48257AINSULATOR, REAR COIL SPRING, LOWER

main48258-22040iGZ10,MZ1#198102-198305

RH

sub48258-22041

main48258-22041iGZ10,MZ1#198305-198512

RH

main48258-22050iGZ10,MZ1#198102-198512

LH

48306BUMPER SUB-ASSY, REAR SPRING

main48341-24010iGZ10,MZ1#198102-198512

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-24010iGZ10..V2,VX198511-198512

sub48531-29855

main48531-24040iGZ10,MZ10..GT,TBO,VR198511-198512

sub48531-19845

sub48531-29866

main48531-24052iMZ12198511-198512

sub48531-80045

main48531-29855iGZ10..V1,V2,VX198102-198511

main48531-29865iGZ10,MZ11..GT,VR198102-198103

sub48531-29866

main48531-29866iMZ10;GZ10,MZ11..GT,VR198103-198511

sub48531-19846

main48531-80026iMZ11198302-198312

main48531-80045iMZ11,12198312-198511

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16001iGZ10,MZ1#198110-198506

main90385-16004iGZ10,MZ1#198506-198512

main90385-16060iGZ10,MZ1#198102-198110

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02007iGZ10,MZ11198102-198105

main90948-02050iGZ10,MZ1#198105-198302

main90948-02075iGZ10,MZ10198302-198512

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-02002iGZ10,MZ1#198102-198512

main90948-02070iMZ11,12198302-198512

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03007iGZ10,MZ1#198102-198112

main90948-03012iGZ10,MZ1#198112-198504

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iGZ10,MZ1#198102-198512

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90948-01003iGZ10,MZ1#198105-198512

UPR

main90948-01018iGZ10,MZ11198102-198105

main90948-01018iGZ10,MZ11198105-198107

LWR

main90948-01019iGZ10,MZ1#198107-198512

LWR

main90948-01025iMZ11,12198302-198512

LWR

main90948-01026iMZ11,12198302-198512

UPR

48539BRACKET, ACTUATOR SUPPORT, RR

main48539-24010iMZ11,12198302-198512

48539ARETAINER, CUSHION(FOR RR ACTUATOR SUPPORT BRACKET)

main90948-02068iMZ11,12198302-198512

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-24010iGZ10..V2,VX198511-198512

sub48531-29855

main48531-24040iGZ10,MZ10..GT,TBO,VR198511-198512

sub48531-19845

sub48531-29866

main48531-24052iMZ12198511-198512

sub48531-80045

main48531-29855iGZ10..V1,V2,VX198102-198511

main48531-29865iGZ10,MZ11..GT,VR198102-198103

sub48531-29866

main48531-29866iGZ10,MZ10..GT,TBO,VR198103-198511

sub48531-19846

main48531-80026iMZ11198302-198312

main48531-80045iMZ11,12198312-198511

48703ARM SUB-ASSY, REAR SUSPENSION, RH

main48703-22900iGZ10,MZ1#198102-198408

sub48703-22915

main48703-22906iGZ10,MZ10,11198408-198512

sub48703-22911

main48703-22907iMZ12198501-198512

sub48703-22912

48707ARM SUB-ASSY, REAR SUSPENSION, LH

main48707-22900iGZ10,MZ1#198102-198408

sub48707-22915

main48707-22906iGZ10,MZ10,11198408-198512

sub48707-22911

main48707-22907iMZ12198501-198512

sub48707-22912

48725BUSH, LOWER CONTROL ARM

main48725-22010iMZ11,12198312-198512

OUTSIDE

main48725-22020iMZ11,12198312-198512

INSIDE

main48725-22030iGZ10,MZ1#198102-198512

OUTSIDE

main48725-22040iGZ10,MZ1#198102-198512

INSIDE

48802LINK SUB-ASSY, STABILIZER

main48802-14030iGZ10,MZ1#198102-198512

48802DBUSH, STABILIZER LINK

main90385-11021iGZ10,MZ1#198102-198512

48802ESPACER(FOR REAR STABILIZER BAR)

main90560-10275iGZ10,MZ1#198102-198512

48805BAR SUB-ASSY, REAR STABILIZER

main48805-24010iGZ10..V1,V2,VX198102-198312

main48805-24020iMZ11198102-198501

main48805-24021iGZ10,MZ1#198501-198512

48815RBUSH, STABILIZER(FOR REAR)

main48815-14050iMZ11198102-198312

main48815-14060iMZ11,12198102-198512

48817RCUSHION, STABILIZER(FOR REAR)

main48817-12010iGZ10,MZ1#198102-198512

48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)

main90948-02024iGZ10,MZ1#198102-198512

T=1.6

main90948-02025iGZ10,MZ1#198102-198512

T=1.0

48823RCOVER, STABILIZER LINK(FOR REAR)

main48832-14020iGZ10,MZ1#198102-198512

8419

4749122020PLUG, HOLE(FOR FRONT BRAKE)

main47491-22020

9010112014

main90101-12014

9010112117

main90101-12117

9011910355

main90119-10355

9017012009

main90170-12009

9017012021

main90170-12021

9017014012

main90170-14012

9020112452

main90201-12452

9095001228

main90950-01228

9111141045

main91111-41045

9161161016

main91611-61016

9161541020

main91615-41020

9161560820

main91615-60820

9411041000

main94110-41000

9411571200

main94115-71200

9418210800

main94182-10800

9418461000

main94184-61000

9451201200

main94512-01200

9451201400

main94512-01400

47 parts on this diagram · 1 diagram in section
