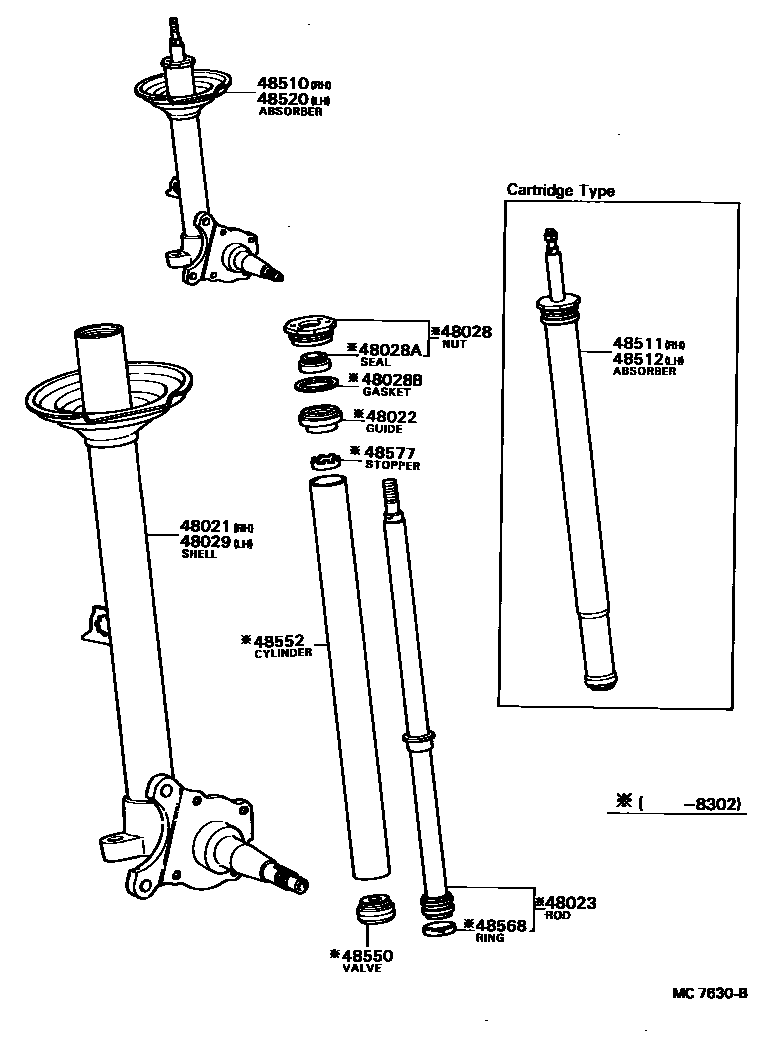

FRONT SPRING & SHOCK ABSORBER

0001 1 0003 1 0005 1

48021SHELL SUB-ASSY, W/STEERING KNUCKLE, RH

main48021-14090iGZ10,MZ10198408-198512

main48021-24010iGZ10,MZ10198102-198408

sub48021-24011

main48021-24021iMZ11198302-198408

sub48021-24022

main48021-24022iMZ11,12198408-198512

48022GUIDE SUB-ASSY, SHOCK ABSORBER ROD

main48022-14010iGZ10,MZ1#198102-198302

sub48022-22040

sub90430-42001

48023ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT)

main48023-24010iGZ10..V1,V2,VX198102-198106

sub48023-24011

main48023-24020iGZ10,MZ11..GT,VR198102-198106

sub48023-24021

main48023-24021iMZ10;GZ10,MZ11..GT,VR198106-198302

main48023-24030iGZ10..V1,V2,VX198106-198302

48028NUT SUB-ASSY, SHOCK ABSORBER RING

main48028-14011iGZ10,MZ1#198102-198302

sub48028-14012

main48028-24030iMZ11,12198304-198512

sub48028-24031

main48555-24011iMZ11198302-198304

sub48028-24030

48028ASEAL, OIL(FOR SHOCK ABSORBER RING NUT)

main90316-22001iGZ10,MZ1#198102-198302

48028BGASKET(FOR SHOCK ABSORBER RING NUT)

main90430-43206iGZ10,MZ1#198102-198302

48029SHELL SUB-ASSY, W/STEERING KNUCKLE, LH

main48029-14040iGZ10,MZ10198408-198512

main48029-24010iGZ10,MZ1#198102-198408

sub48029-24011

main48029-24021iMZ11198302-198408

sub48029-24022

main48029-24022iMZ11,12198408-198512

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-24010iGZ10..V1,V2,VX198102-198302

sub48510-24011

main48510-24020iMZ10;GZ10,MZ11..GT,VR198102-198302

sub48510-24010

main48510-24040iGZ10..V2,VX198302-198408

sub48510-24041

main48510-24050iGZ10,MZ10..GT,TBO,VR198302-198408

sub48510-24040

main48510-24060iGZ10..V2,VX198408-198512

sub48510-24061

main48510-24070iGZ10,MZ10..GT,TBO,VR198408-198512

sub48510-24060

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48500-29305iMZ11198304-198312

main48500-29306iMZ11,12198312-198512

sub48500-24011

main48511-24010iGZ10..V1,V2,VX198102-198302

sub48511-24040

main48511-24020iMZ10;GZ10,MZ11..GT,VR198102-198302

sub48511-24050

main48511-29195iMZ11198302-198304

sub48500-29305

main48511-29295iGZ10..V2,VX198302-198501

main48511-29305iGZ10,MZ10..GT,TBO,VR198302-198501

main48511-29315iGZ10..V2,VX198501-198512

main48511-29325iGZ10,MZ10..GT,TBO,VR198501-198512

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48500-29305iMZ11198304-198312

main48500-29306iMZ11,12198312-198512

sub48500-24011

main48511-24010iGZ10..V1,V2,VX198102-198302

sub48511-24040

main48511-24020iMZ10;GZ10,MZ11..GT,VR198102-198302

sub48511-24050

main48511-24040iGZ10..V2,VX198302-198501

main48511-24041iGZ10..V2,VX198501-198512

sub48511-29315

main48511-24050iGZ10,MZ10..GT,TBO,VR198302-198501

sub48511-29305

main48511-29195iMZ11198302-198304

sub48500-29305

main48511-29325iGZ10,MZ10..GT,TBO,VR198501-198512

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-24010iGZ10..V1,V2,VX198102-198302

sub48520-24011

main48520-24020iMZ10;GZ10,MZ11..GT,VR198102-198302

sub48520-24010

main48520-24040iGZ10..V2,VX198302-198408

sub48520-24041

main48520-24050iGZ10,MZ10..GT,TBO,VR198302-198408

sub48520-24040

main48520-24060iGZ10..V2,VX198408-198512

main48520-24070iGZ10,MZ10..GT,TBO,VR198408-198512

sub48520-24060

48550VALVE ASSY, SHOCK ABSORBER BASE

main48550-24010iGZ10,MZ1#198102-198302

48552CYLINDER, SHOCK ABSORBER(FOR FRONT)

main48552-22030iGZ10,MZ1#198102-198302

48568RING, SHOCK ABSORBER PISTON

main48568-22020iGZ10,MZ1#198102-198302

48577STOPPER, SHOCK ABSORBER REBOUND

main48579-14011iGZ10,MZ1#198102-198302

15 parts on this diagram · 3 diagrams in section
