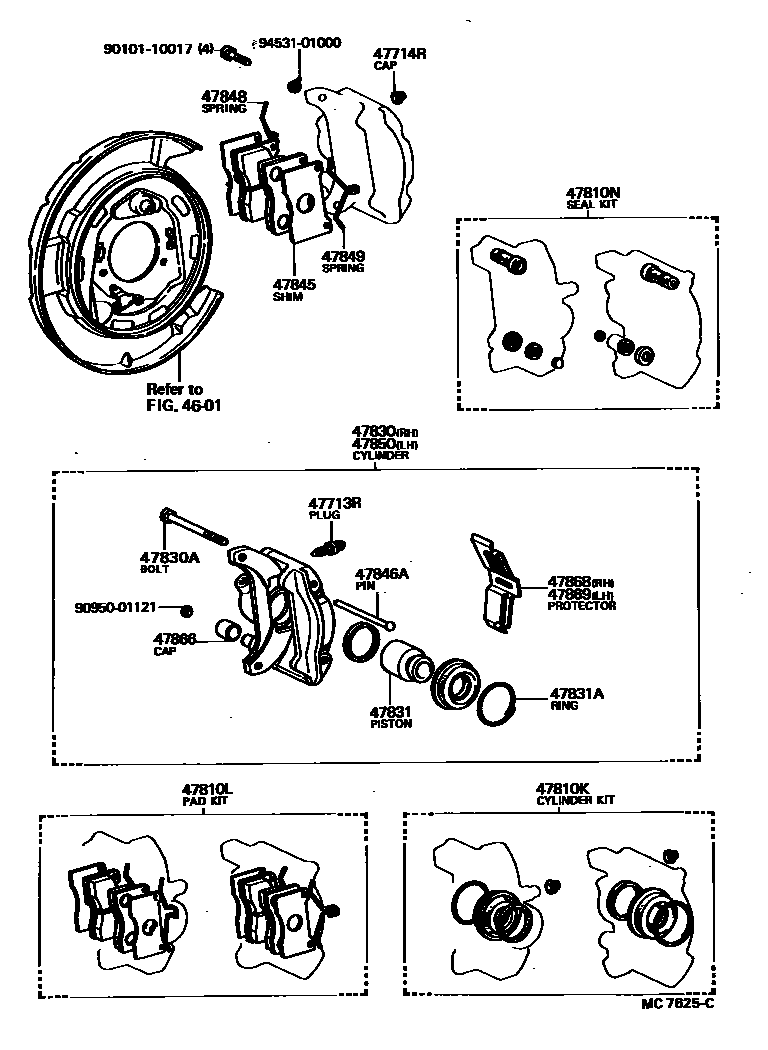

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

4601

47713RPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-12040iGZ10,MZ1#198102-198512

47714RCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iGZ10,MZ1#198102-198512

47810KCYLINDER KIT, DISC BRAKE, REAR

main04479-30040iGZ10,MZ1#198102-198512

sub04479-30041

47810LPAD KIT, DISC BRAKE, REAR

main04492-22020iGZ10,MZ1#198209-198512

sub04466-22100

main04492-24020iGZ10,MZ1#198205-198209

sub04492-22020

main04492-30050iGZ10,MZ1#198102-198205

sub04466-30070

47810NSEAL KIT, DISC BRAKE, REAR

main04498-30010iGZ10,MZ1#198102-198512

sub04498-30011

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47730-22090iGZ10..V1,V2,VX198102-198512

main47730-24030iMZ10;GZ10,MZ11,12..GT,GTL,VR198102-198512

47830ABOLT(FOR REAR DISC BRAKE)

main90101-10082iMZ10;GZ10,MZ11,12..GT,GTL,VR198102-198512

main90101-10481iGZ10..V1,V2,VX198102-198512

47831PISTON, REAR DISC BRAKE

main47731-30030iGZ10,MZ1#198102-198512

47831ARING, SET(FOR REAR DISC BRAKE PISTON)

main90522-48044iGZ10,MZ1#198102-198512

47845SHIM, ANTISQUEAL, NO.2(FOR REAR DISC BRAKE)

main47744-30070iGZ10,MZ1#198102-198512

47846APIN, W/HOLE(FOR REAR DISC BRAKE PAD)

main90240-06007iMZ10;GZ10,MZ11,12..GT,GTL,VR198102-198512

main90240-06133iGZ10..V1,V2,VX198102-198512

47848SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47748-30030iGZ10,MZ1#198102-198512

47849SPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)

main47743-30010iGZ10,MZ1#198102-198512

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47750-22090iGZ10..V1,V2,VX198102-198512

main47750-24030iMZ10;GZ10,MZ11,12..GT,GTL,VR198102-198512

47866CAP, TORQUE PLATE PIN, REAR

main47766-12010iGZ10,MZ1#198102-198512

47868PROTECTOR, DISC BRAKE PAD, REAR RH

main47767-24010iMZ10;GZ10,MZ11,12..GT,GTL,VR198102-198512

main47767-30020iGZ10..V1,V2,VX198102-198512

47869PROTECTOR, DISC BRAKE PAD, REAR LH

main47767-24010iMZ10;GZ10,MZ11,12..GT,GTL,VR198102-198512

main47767-30020iGZ10..V1,V2,VX198102-198512

9010110017

main90101-10017

9095001121

main90950-01121

9453101000

main94531-01000

21 parts on this diagram · 2 diagrams in section
