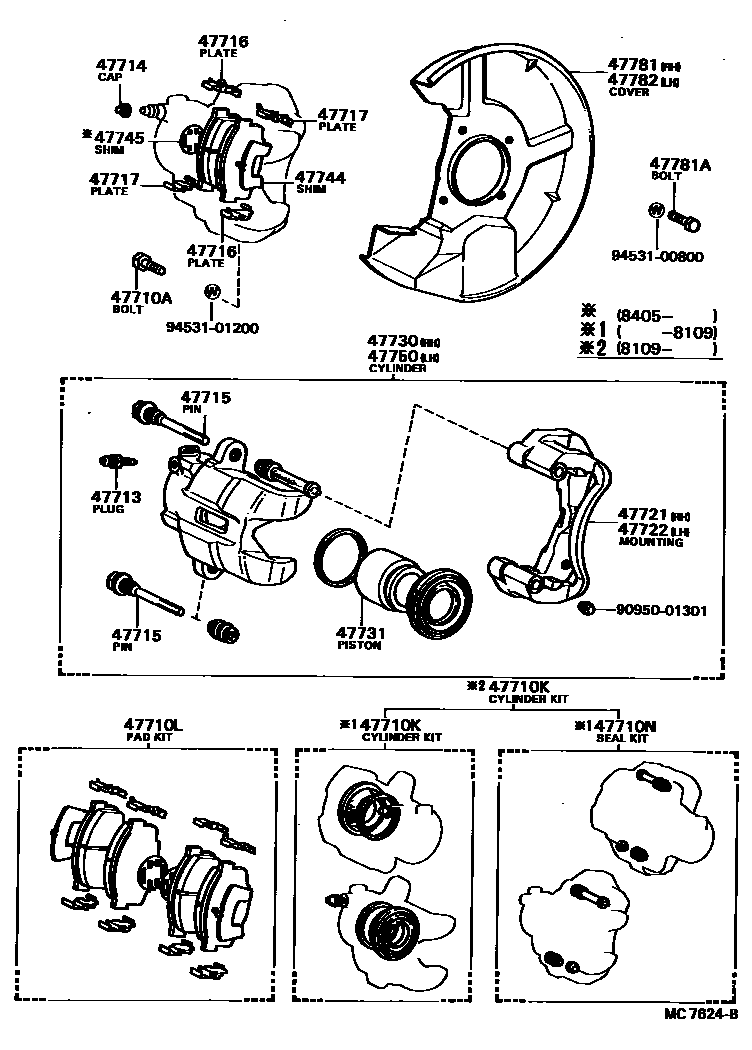

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12067×4iGZ10,MZ1#198102-198512

47710KCYLINDER KIT, DISC BRAKE, FRONT

main04479-22010iGZ10,MZ1#198109-198512

main04479-30050iGZ10,MZ1#198102-198109

sub04479-30060

sub04479-30070

47710LPAD KIT, DISC BRAKE, FRONT

main04491-22130iMZ10;GZ10,MZ11..GT,VR198102-198205

main04491-22160iGZ10,MZ1#198205-198405

main04491-22161iGZ10,MZ1#198405-198512

sub04491-22162

main04491-24010iGZ10..V1,V2,VX198102-198205

47710NSEAL KIT, DISC BRAKE, FRONT

main04498-22010iGZ10,MZ1#198102-198109

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12040×2iGZ10,MZ1#198102-198512

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iGZ10,MZ1#198102-198512

47715PIN, MAIN(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main47715-22010×4iGZ10,MZ1#198102-198512

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-22010×4iGZ10,MZ1#198102-198512

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-22010×4iGZ10,MZ1#198102-198512

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-22070iMZ12198501-198512

main47721-24010iGZ10..V1,V2,VX198102-198512

main47721-24020iMZ10;GZ10,MZ11..GT,VR198102-198512

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-22050iMZ12198501-198512

main47722-24010iGZ10..V1,V2,VX198102-198512

main47722-24020iMZ10;GZ10,MZ11..GT,VR198102-198512

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-22170iMZ12198501-198512

main47730-24010iGZ10..V1,V2,VX198102-198512

main47730-24020iMZ10;GZ10,MZ11..GT,VR198102-198512

47731PISTON, FRONT DISC BRAKE

main47731-22010×2iMZ12198501-198512

main47731-30050×2iGZ10,MZ10,11198102-198512

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-22040×2iGZ10,MZ1#198102-198512

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47744-22050iGZ10,MZ1#198405-198512

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-22170iMZ12198501-198512

main47750-24010iGZ10..V1,V2,VX198102-198512

main47750-24020iMZ10;GZ10,MZ11..GT,VR198102-198512

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-22100iMZ12198501-198512

main47781-24010iGZ10,MZ10,11198102-198512

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-08341×8iGZ10,MZ1#198102-198512

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-22100iMZ12198501-198512

main47782-24010iGZ10,MZ10,11198102-198512

9095001301

main90950-01301

9453100800

main94531-00800

9453101200

main94531-01200

22 parts on this diagram · 2 diagrams in section
