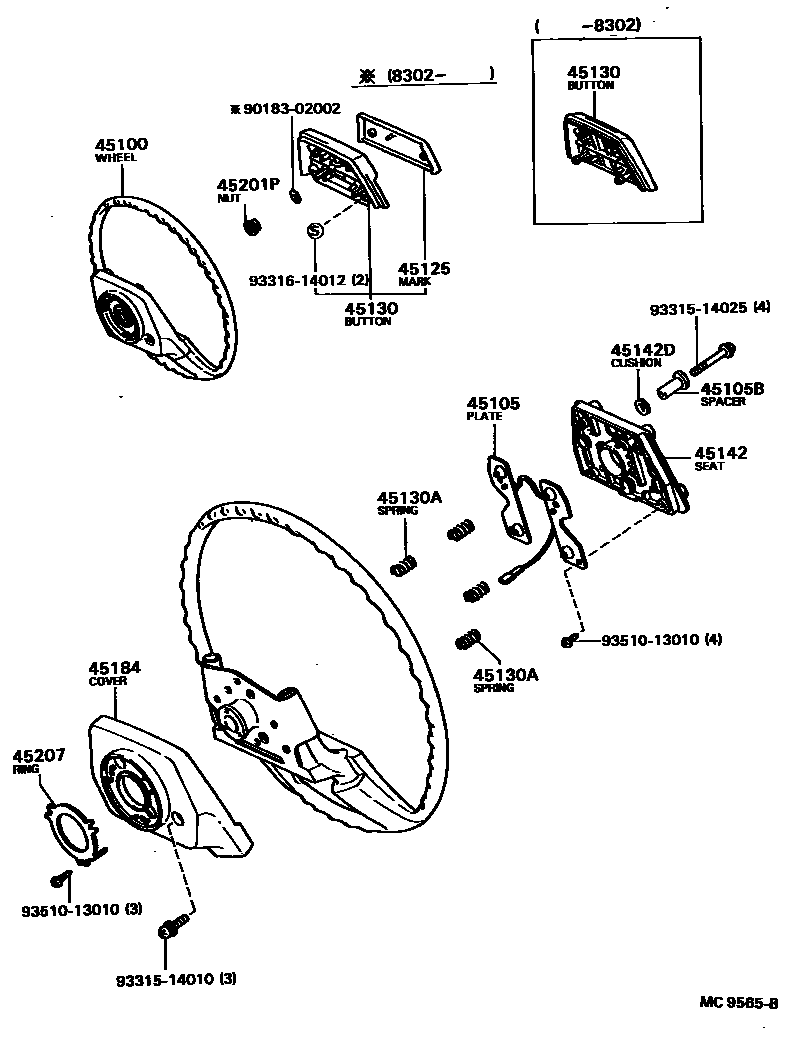

STEERING WHEEL

0001 1 0003 1

45100WHEEL ASSY, STEERING

main45100-24010-01iGZ10,MZ10..V1,V2,VX198102-198203

URETHANE,BLACK,BLACK,TRIM2#

main45100-24010-02iGZ10,MZ10..V1,V2,VX198102-198302

URETHANE,TERRACOTTA,RED/MAROON,TRIM3#

main45100-24010-03iGZ10,MZ10..V2,VX198203-198302

URETHANE,GRAY,GRAY,TRIM1#

main45100-24010-04iGZ10..V2198302-198512

URETHANE,BLUE,BLUE,TRIM8#

main45100-24010-12iGZ10..V2198302-198512

URETHANE,DEEP MAROON,RED/MAROON,TRIM3#

main45100-24020-01iGZ10,MZ1#..GT,TBO,VR198102-198203

LEATHER,BLACK,BLACK,TRIM2#

main45100-24020-02iGZ10,MZ1#..GT,TBO,VR198102-198203

LEATHER,TERRACOTTA,RED/MAROON,TRIM3#

main45100-24020-04iGZ10,MZ1#..GT,TBO,VR198102-198203

LEATHER,BLUE,BLUE,TRIM8#

main45100-24030-02iGZ10,MZ1#..GT,TBO,VR198203-198302

LEATHER,TERRACOTTA,RED/MAROON,TRIM3#

main45100-24030-03iGZ10,MZ1#..GT,TBO,VR198203-198302

LEATHER,GRAY,GRAY,TRIM1#

main45100-24030-04iGZ10,MZ1#..GT,TBO,VR198203-198302

LEATHER,BLUE,BLUE,TRIM8#

main45100-24030-05iGZ10,MZ10..TBO,VR198302-198512

LEATHER,BEIGE,BEIGE,TRIM4#

main45100-24030-12iGZ10,MZ10..TBO,VR198302-198512

LEATHER,DEEP MAROON,RED/MAROON,TRIM3#

main45100-24050-04iGZ10,MZ11,12..GT,GTL,VX198302-198512

BLUE,BLUE,TRIM8#

main45100-24050-05iGZ10,MZ11,12..GT,GTL,VX198302-198512

BEIGE,BEIGE,TRIM4#

main45100-24050-12iGZ10,MZ11,12..GT,GTL,VX198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-24010iGZ10,MZ1#198102-198302

main45105-24020iGZ10,MZ11,12..GT,GTL,VX198302-198512

45105BSPACER(FOR HORN BUTTON CONTACT PLATE)

main90561-04006×4iGZ10,MZ1#198102-198512

45125MARK, STEERING WHEEL PAD

main45125-24010-02iGZ10..V2,VR198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

main45125-24010-04iGZ10,MZ10..TBO,V2,VR198302-198512

BLUE,BLUE,TRIM8#

main45125-24010-05iGZ10,MZ10..TBO,V2,VR198302-198512

BEIGE,BEIGE,TRIM4#

45130BUTTON ASSY, HORN

main45130-24010-01iGZ10,MZ1#198102-198203

BLACK,BLACK,TRIM2#

main45130-24010-02iGZ10,MZ1#198102-198302

TERRACOTTA,RED/MAROON,TRIM3#

main45130-24010-03iGZ10,MZ1#198203-198302

GRAY,GRAY,TRIM1#

main45130-24010-04iGZ10,MZ1#198102-198302

BLUE,BLUE,TRIM8#

main45130-24030-02iGZ10,MZ10..TBO,V2,VR198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

main45130-24030-04iGZ10,MZ10..TBO,V2,VR198302-198512

BLUE,BLUE,TRIM8#

main45130-24030-05iGZ10,MZ10..TBO,VR198302-198512

BEIGE,BEIGE,TRIM4#

main45130-24040-02iGZ10,MZ11,12..GT,GTL,VX198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

main45130-24040-04iGZ10,MZ11,12..GT,GTL,VX198302-198512

BLUE,BLUE,TRIM8#

main45130-24040-05iGZ10,MZ11,12..GT,GTL,VX198302-198512

BEIGE,BEIGE,TRIM4#

45130ASPRING, COMPRESSION(FOR HORN BUTTON)

main90501-10040×4iGZ10,MZ1#198102-198512

sub90501-10104

45142SEAT, HORN BUTTON CONTACT, NO.1

main45142-24010iGZ10,MZ1#198102-198302

main45142-24020iGZ10,MZ11,12..GT,GTL,VX198302-198512

45142DCUSHION(FOR HORN BUTTON CONTACT SEAT)

main90540-08007×4iGZ10,MZ1#198208-198302

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-24010-01iGZ10,MZ1#198102-198203

BLACK,BLACK,TRIM2#

main45184-24010-02iGZ10,MZ1#198102-198302

TERRACOTTA,RED/MAROON,TRIM3#

main45184-24010-03iGZ10,MZ1#198203-198302

GRAY,GRAY,TRIM1#

main45184-24010-04iGZ10,MZ1#198102-198512

BLUE,BLUE,TRIM8#

main45184-24010-05iMZ11,12;GZ10,MZ10..TBO,VR,VX198302-198512

BEIGE,BEIGE,TRIM4#

main45184-24010-12iGZ10,MZ1#198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

45201PNUT, STEERING WHEEL SET

main90179-12086iGZ10,MZ1#198102-198512

45207RING, HORN CONTACT

main45176-20030iGZ10,MZ1#198102-198512

9018302002

main90183-02002

9331514010

main93315-14010

9331514025

main93315-14025

9331614012

main93316-14012

9351013010

main93510-13010

16 parts on this diagram · 2 diagrams in section
