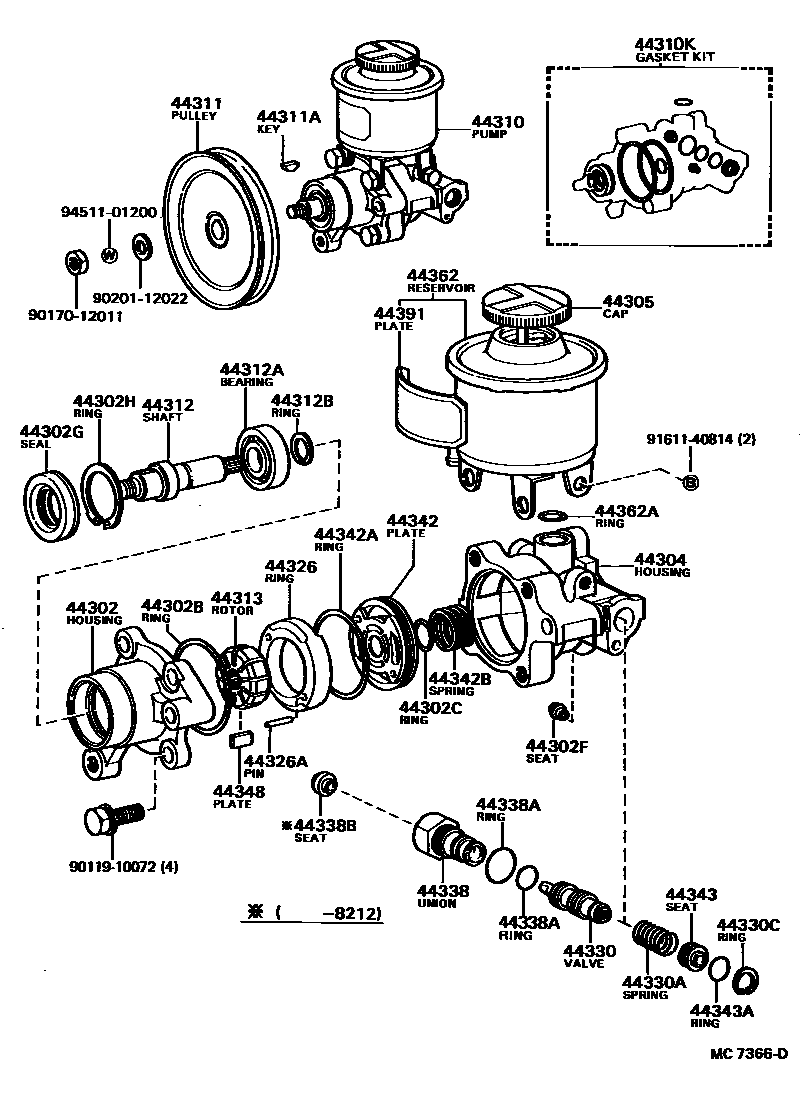

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-22020iMZ11,12;GZ10,MZ10..TBO,V2,VR,VX198102-198512

main44302-22030iGZ10..GT198302-198507

sub44302-22031

main44302-22031iGZ10..GT198507-198512

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90301-60001iMZ11,12;GZ10,MZ10..TBO,V2,VR,VX198102-198512

main90301-63002iGZ10..GT198302-198512

44302CRING, O, NO.2(FOR VANE PUMP HOUSING)

main96710-01016iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198111

sub96711-19016

main96711-19016iMZ11,12;GZ10,MZ10..TBO,V2,VR,VX198111-198512

44302FSEAT, UNION(FOR VANE PUMP HOUSING)

main90410-05035iGZ10,MZ11,12..GT,GTL,V2,VR,VX198102-198512

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-18003iGZ10..GT198302-198305

sub90311-18008

main90311-18008iGZ10..GT198305-198512

main90311-24001iMZ11,12;GZ10,MZ10..TBO,V2,VR,VX198102-198512

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main90521-32001iGZ10..GT198302-198512

main90521-44002iMZ11,12;GZ10,MZ10..TBO,V2,VR,VX198102-198512

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-22010iMZ11;GZ10..V2,VR,VX198102-198311

sub44304-22011

sub90105-10092

main44304-22011iMZ11,12;GZ10..V2,VR,VX198311-198512

sub44304-22012

sub44343-12040

sub90501-12103

main44304-30060iMZ10198107-198311

sub44304-30061

sub90105-10092

main44304-30061iMZ10198311-198512

sub44304-30062

sub44343-12040

sub90501-12103

main44324-22030iGZ10..GT198312-198512

sub44324-22031

main44324-32010iGZ10..GT198302-198312

sub44324-22030

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-24010iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198302

sub44305-22040

main44305-30020iGZ10,MZ1#198302-198512

sub44305-22040

44310PUMP ASSY, VANE

main44320-14120iMZ11;GZ10..V2,VR,VX198302-198311

sub44320-14121

sub90105-10092

main44320-14121iMZ11;GZ10..V2,VR,VX198311-198409

sub44320-22270

main44320-14130iMZ10198302-198311

sub44320-14131

sub90105-10092

main44320-14131iMZ10198311-198409

sub44320-22300

main44320-14140iGZ10..GT198302-198305

sub44320-14141

main44320-14141iGZ10..GT198305-198512

main44320-22270iMZ11,12;GZ10..V2,VR,VX198409-198512

main44320-22300iMZ10198409-198512

sub44320-22431

main44320-24010iGZ10,MZ11..GT,V2,VR,VX198102-198302

sub44320-24011

sub90105-10092

main44320-24020iMZ10198107-198302

sub44320-24021

sub90105-10092

44310KGASKET KIT, POWER STEERING PUMP

main04446-14010iMZ11;GZ10,MZ10..TBO,V2,VR,VX198102-198512

sub04446-14040

main04446-16010iGZ10..GT198302-198312

sub04446-16011

main04446-16011iGZ10..GT198312-198512

main04446-35010iMZ10198409-198512

sub04446-30030

main04446-35020iGZ10..V2,VR,VX198409-198512

44311PULLEY, VANE PUMP

main44311-22030iMZ11;GZ10,MZ10..TBO,V2,VR,VX198102-198512

main44311-22041iGZ10..GT198302-198512

main44311-30030iGZ10..V2,VR,VX198308-198512

sub44311-30070

44311AKEY, VANE PUMP PULLEY

main90280-05008iGZ10,MZ1#..GT,GTL,TBO,V2,VR,VX198102-198512

44312SHAFT, VANE PUMP

main44312-12010iMZ11,12;GZ10,MZ10..TBO,V2,VR,VX198102-198512

main44312-12020iGZ10..GT198302-198512

44312ABEARING(FOR VANE PUMP SHAFT)

main90363-17004iMZ11,12;GZ10,MZ10..TBO,V2,VR,VX198102-198512

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iGZ10..GT198302-198512

main90520-15001iMZ11,12;GZ10,MZ10..TBO,V2,VR,VX198102-198512

44313ROTOR, VANE PUMP

main44313-12010iGZ10,MZ1#..GT,GTL,TBO,V2,VR,VX198102-198512

sub44313-22040

main44313-12020iGZ10,MZ1#..GT,GTL,TBO,V2,VR,VX198102-198512

sub44313-22050

main44313-12030iGZ10,MZ1#..GT,GTL,TBO,V2,VR,VX198102-198512

sub44313-22060

main44313-12040iGZ10,MZ1#..GT,GTL,TBO,V2,VR,VX198102-198512

sub44313-22070

main44313-12050iGZ10,MZ1#..GT,GTL,TBO,V2,VR,VX198102-198512

sub44313-22080

44326RING, CAM(FOR VANE PUMP)

main44325-12010iGZ10,MZ1#198102-198512

main44325-12020iGZ10,MZ1#198102-198512

main44325-12030iGZ10,MZ1#198102-198512

main44325-12040iGZ10,MZ1#198102-198512

main44325-12050iGZ10,MZ1#198102-198512

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-05008iGZ10..GT198102-198512

main90250-05017iGZ10..GT198302-198512

44330VALVE ASSY, FLOW CONTROL

main44330-12130iGZ10,MZ1#198207-198512

sub44330-12131

main44330-12140iGZ10..GT198207-198512

sub44330-12141

main44330-12150iGZ10,MZ1#198207-198512

sub44330-12151

main44330-12160iGZ10,MZ1#198207-198512

sub44330-12161

main44330-12170iGZ10..GT198207-198512

sub44330-12171

main44330-12180iGZ10,MZ1#198207-198512

sub44330-12181

main44330-14010iMZ11,12;GZ10,MZ10..TBO,V2,VR,VX198409-198512

sub44330-20010

main44330-14020iMZ11,12;GZ10,MZ10..TBO,V2,VR,VX198409-198512

sub44330-20020

main44330-14030iMZ11,12;GZ10,MZ10..TBO,V2,VR,VX198409-198512

sub44330-20030

main44330-14040iMZ11,12;GZ10,MZ10..TBO,V2,VR,VX198409-198512

sub44330-20040

main44330-14050iMZ11,12;GZ10,MZ10..TBO,V2,VR,VX198409-198512

sub44330-20050

main44330-14060iMZ11,12;GZ10,MZ10..TBO,V2,VR,VX198409-198512

sub44330-20060

main44330-24010iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198207

sub44330-12130

main44330-24020iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198207

sub44330-12140

main44330-24030iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198207

sub44330-12150

main44330-24040iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198207

sub44330-12160

main44330-24050iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198207

sub44330-12170

main44330-24060iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198207

sub44330-12180

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iGZ10..GT198507-198512

main90501-12447iGZ10,MZ1#..GT,GTL,TBO,V2,VR,VX198102-198512

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700iMZ11,12;GZ10,MZ10..TBO,V2,VR,VX198102-198512

main96151-02200iGZ10..GT198302-198512

44338UNION, PRESSURE PORT

main44308-14040iGZ10,MZ1#198302-198408

sub44308-14041

main44308-14041iGZ10,MZ1#198408-198507

main44308-14060iGZ10,MZ1#198507-198512

main44308-22020iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198302

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-22001iGZ10,MZ1#..GT,GTL,TBO,V2,VR,VX198102-198512

main96710-01014iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198111

sub96711-19014

main96711-19014iGZ10,MZ1#..GT,GTL,TBO,V2,VR,VX198111-198512

44338BSEAT, UNION(FOR PRESSURE PORT UNION)

main90410-06004iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198212

44342PLATE, VANE PUMP SIDE, REAR

main44341-12010iMZ11,12;GZ10,MZ10..TBO,V2,VR,VX198102-198512

main44342-12010iGZ10..GT198302-198312

main44342-22010iGZ10..GT198312-198512

sub44342-30020

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-13004iGZ10..GT198312-198512

ID=13.4

main90301-30004iGZ10..GT198312-198512

ID=30

main90301-37002iGZ10..GT198302-198312

ID=37.5

main90301-53002iMZ11,12;GZ10,MZ10..TBO,V2,VR,VX198102-198512

44342BSPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)

main90501-23014iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198512

44343SEAT, FLOW CONTROL SPRING

main44343-12010iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198512

main44343-12030iGZ10..GT198302-198512

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96710-01014iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198111

sub96711-19014

main96711-19014iMZ11,12;GZ10,MZ10..TBO,V2,VR,VX198111-198512

main96711-19019iGZ10..GT198302-198512

44348PLATE, VANE PUMP

main44345-12010iGZ10,MZ1#..GT,GTL,TBO,V2,VR,VX198102-198512

main44345-12020iGZ10,MZ1#..GT,GTL,TBO,V2,VR,VX198102-198512

main44345-12030iGZ10,MZ1#..GT,GTL,TBO,V2,VR,VX198102-198512

main44345-12040iGZ10,MZ1#..GT,GTL,TBO,V2,VR,VX198102-198512

main44345-12050iGZ10,MZ1#..GT,GTL,TBO,V2,VR,VX198102-198512

44362RESERVOIR, OIL(FOR VANE PUMP)

main44306-22100iMZ11,12;GZ10,MZ10..TBO,V2,VR,VX198302-198512

sub44306-22200

main44306-24010iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198302

sub44306-22200

sub44305-22040

main44360-14040iGZ10..GT198302-198401

main44360-14041iGZ10..GT198401-198512

44362ARING, O(FOR VANE PUMP OIL RESERVOIR)

main96710-01013iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198111

sub96711-19013

main96711-19013iMZ11,12;GZ10,MZ10..TBO,V2,VR,VX198111-198512

44391PLATE, POWER STEERING OIL RESERVOIR CAUTION

main44391-30020iGZ10,MZ1#..GT,GTL,TBO,V2,VR,VX198102-198512

9011910072

main90119-10072

9017012011

main90170-12011

9020112022

main90201-12022

9161140814

main91611-40814

9451101200

main94511-01200

38 parts on this diagram · 2 diagrams in section
