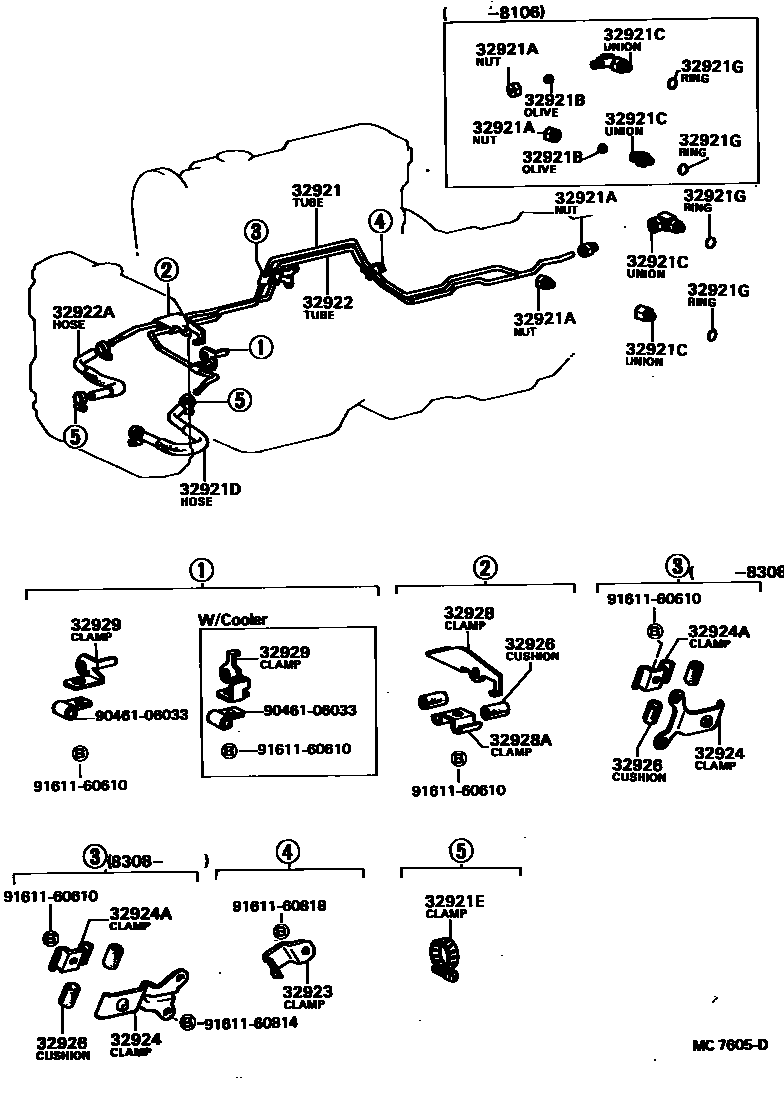

OIL COOLER & TUBE (ATM)

0001 1 0002 1 0003 1 0004 1 0005 1

32921TUBE, OIL COOLER INLET, NO.1

main32921-14160iGZ10..4FC198106-198201

main32921-14161iGZ10..4FC198201-198512

sub32921-14162

main32921-14180iMZ10,11..4FC198106-198512

main32921-24020iGZ10..4FC198102-198106

main32921-24030iMZ11..4FC198102-198106

main32921-24060iMZ12..4FC198501-198512

32921ANUT, UNION(FOR OIL COOLER TUBE)

main90402-13041×2iGZ10,MZ11..4FC198102-198106

main90402-14004×2iGZ10,MZ10,11..4FC198106-198512

32921BOLIVE(FOR OIL COOLER TUBE)

main96395-71400×2iGZ10,MZ11..4FC198102-198106

32921CUNION(FOR OIL COOLER TUBE)

main90404-13265iGZ10,MZ11..4FC198102-198106

FR

main90404-14007iGZ10,MZ10,11..4FC198106-198512

FR

main90404-16020iMZ12..4FC198501-198512

FR

sub90404-16029

main90407-13002iGZ10,MZ11..4FC198102-198106

RR

main90407-14003iGZ10,MZ10,11..4FC198106-198512

RR

main90407-16009iMZ12..4FC198501-198512

RR

32921DHOSE(FOR OIL COOLER INLET)

main32941-22020iGZ10,MZ11..4FC198102-198106

main90445-14080iGZ10,MZ11..4FC198106-198302

main90445-14083iMZ10198107-198302

sub90445-14092

main90445-16019iGZ10,MZ1#..4FC198409-198512

sub90445-16022

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-14085×4iGZ10,MZ1#..4FC198102-198409

sub90460-20004

main90460-18002×4iGZ10,MZ1#..4FC198409-198512

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iGZ10,MZ10,11..4FC198102-198512

main90301-11006×2iMZ12..4FC198501-198512

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-14160iGZ10..4FC198106-198211

main32922-14180iMZ1#..4FC198302-198409

main32922-24020iGZ10..4FC198102-198106

main32922-24030iMZ11..4FC198102-198106

main32922-24040iMZ10198107-198302

main32922-24050iGZ10..4FC198211-198512

main32922-24060iMZ10,11..4FC198409-198512

main32922-24080iMZ12..4FC198501-198512

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-22030iGZ10..4FC198102-198106

main32942-24020iMZ1#..4FC198409-198512

main90445-14058iGZ10..4FC198302-198409

main90445-14078iGZ10,MZ11..4FC198106-198302

main90445-14080iMZ10198107-198302

main90445-14407iMZ11..4FC198102-198106

main90445-16024iGZ10..4FC198409-198512

sub90445-15016

sub90467-13039

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-14010iMZ10198107-198512

main32923-30080iGZ10..4FC..(V1,V2,VR,VX)198102-198512

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-22040iMZ10,11..4FC198102-198512

main32924-22060iGZ10..4FC198102-198301

main32924-22061iGZ10..4FC198308-198512

main32924-30120iMZ12..4FC198501-198512

sub32924-30160

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main32929-30060iMZ10,11..4FC198102-198512

main32929-30110iMZ12..4FC198501-198512

main90462-12085iGZ10..4FC198102-198512

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-22010×2iMZ1#..4FC198302-198409

main32926-22020×2iMZ10,11..4FC198409-198512

main32926-30011×4iGZ10,MZ10..4FC198202-198302

main32926-30020×2iMZ12..4FC198501-198512

32928CLAMP, FLEXIBLE HOSE, NO.1

main15781-41010iMZ1#..4FC198102-198512

main32928-24010iGZ10..4FC..(V1,V2,VR,VX)198102-198512

32928ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main90462-10019iMZ1#..4FC198102-198409

main90462-12085iGZ10..4FC198102-198512

main90949-01187iMZ1#..4FC198409-198512

32929CLAMP, FLEXIBLE HOSE, NO.2

main32929-14010iMZ10198107-198512

main32929-24010iGZ10..4FC..(V1,V2,VR)198102-198512

main32929-24020iMZ11,12..4FC198102-198512

main32929-24030iGZ10..4FC198102-198512

W/COOLER

9046106033

main90461-06033

9161160610

main91611-60610

9161160814

main91611-60814

9161160818

main91611-60818

20 parts on this diagram · 5 diagrams in section
