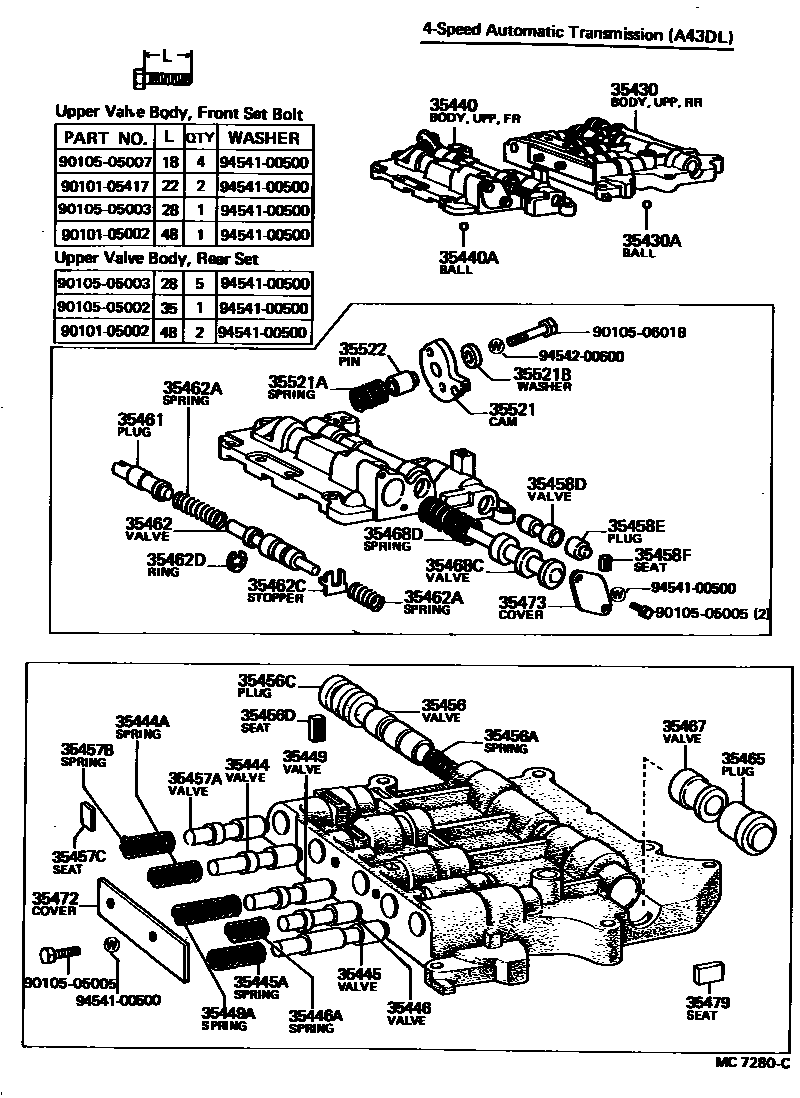

VALVE BODY & OIL STRAINER (ATM)

0001 1 0002 1 0003 1 0004 1 0006 1 0008 1 0010 1 0012 1 0014 1 0016 1 0017 1 0018 1 0019 1

35430BODY ASSY, REAR UPPER VALVE

main35430-14020iMZ10198107-198401

main35430-24010iGZ10..4FC..(V2,VR,VX)198307-198409

main35430-24020iGZ10..4FC..(V2,VR,VX)198409-198512

main35430-30070iMZ11..4FC198102-198203

main35430-30090iGZ10..4FC..(V1,V2,VR,VX)198102-198307

main35430-30120iGZ10,MZ10,11..4FC..(GT,TBO)198401-198512

35430ABALL (FOR REAR UPPER VALVE BODY)

main35495-22010×3iGZ10,MZ1#..4FC198102-198203

sub35495-22020

main90360-06023×6iGZ10,MZ10,11..4FC198102-198512

35440BODY ASSY, FRONT UPPER VALVE

main35440-14010iGZ10..4FC..(V1,V2,VR,VX)198102-198401

main35440-24020iMZ10198307-198401

sub35440-24021

main35440-28030iGZ10..4FC..(V2,VR,VX)198401-198508

main35440-28031iGZ10..4FC..(V2,VR,VX)198508-198512

main35440-30050iMZ1#..4FC198102-198203

sub35440-30051

main35440-30070iGZ10,MZ11..4FC..GT198203-198508

main35440-30071iGZ10..4FC..GT198508-198512

main35440-30110iMZ10198401-198508

main35440-30111iMZ10198508-198512

35440ABALL (FOR FRONT UPPER VALVE BODY)

main35495-22010iMZ1#..4FC198102-198203

sub35495-22020

35444VALVE, INTERMEDIATE MODULATOR

main35444-22010iGZ10,MZ10..4FC..(TBO,V2,VR,VX)198102-198203

35444ASPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE)

main90501-08725iGZ10,MZ11..4FC..GT198203-198401

LOW COAST

main90501-09686iGZ10,MZ10,11..4FC..(GT,TBO)198401-198512

INTERMEDIATE COAST

main90501-11009iGZ10..4FC..(V2,VR,VX)198401-198512

35445VALVE, LOW MODULATOR

main35445-22010iGZ10,MZ1#..4FC198102-198203

35445ASPRING, COMPRESSION (FOR LOW MODULATOR VALVE)

main90501-08725iGZ10,MZ1#..4FC198102-198203

35446VALVE, GOVERNOR MODULATOR

main35446-20010iGZ10..4FC..(V2,VR,VX)198401-198512

main35446-22010iGZ10,MZ1#..4FC198102-198203

35446ASPRING, COMPRESSION (FOR GOVERNOR MODULATOR VALVE)

main90501-07688iGZ10,MZ1#..4FC198102-198203

35449VALVE, SEQUENCE

main35447-22010iGZ10,MZ1#..4FC198102-198203

UPR VALVE

main35449-22010iGZ10..4FC..(V1,V2,VR,VX)198102-198512

LWR VALVE

35449ASPRING, COMPRESSION (FOR SEQUENCE VALVE)

main90501-12055×2iGZ10..4FC..(V2,VR,VX)198307-198512

main90501-12726×2iGZ10,MZ1#..4FC198102-198203

35456VALVE, 2-3 SHIFT

main35456-22010iGZ10,MZ1#..4FC198102-198203

main35456-30050iGZ10,MZ11..4FC..GT198203-198401

main35456-30060iMZ12..4FC198501-198512

35456ASPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

main90501-08724iGZ10,MZ1#..4FC198102-198203

main90501-09053iMZ12..4FC198501-198512

35456CPLUG (FOR 2-3 SHIFT VALVE)

main35452-22010iGZ10,MZ1#..4FC198102-198203

main90339-03004iMZ12..4FC198501-198512

35456DSEAT (FOR 2-3 SHIFT VALVE)

main35493-22020iGZ10,MZ1#..4FC198102-198203

main35493-30030×2iGZ10,MZ11..4FC..GT198203-198401

35457AVALVE, DETENT REGULATOR

main35457-22010iGZ10,MZ1#..4FC198102-198203

35457BSPRING, COMPRESSION (FOR DETENT REGULATOR VALVE)

main90501-09006iGZ10..4FC..(V1,V2,VR,VX)198102-198512

main90501-09007iMZ11..4FC198102-198203

main90501-09739iMZ10198107-198401

35457CSEAT (FOR DETENT REGULATOR VALVE)

main35438-22020iGZ10,MZ10..4FC..(TBO,V2,VR,VX)198203-198401

35458DVALVE, CUT BACK

main35458-22010iGZ10,MZ1#..4FC198102-198203

main35458-30020iGZ10,MZ10,11..4FC..(GT,TBO)198401-198512

main35458-30030iMZ12..4FC198501-198512

35458EPLUG (FOR CUT BACK VALVE)

main35459-22010iGZ10,MZ10,11..4FC198102-198512

main90339-04002iMZ12..4FC198501-198512

35458FSEAT (FOR CUT BACK VALVE)

main35493-22010iGZ10,MZ10,11..4FC198102-198512

35461PLUG, DOWN SHIFT

main35408-30010iGZ10,MZ1#..4FC198102-198203

main35408-30020iGZ10,MZ10,11..4FC..(GT,TBO)198401-198512

main35408-30040iMZ12..4FC198501-198512

35462VALVE, THROTTLE

main35462-22011iGZ10,MZ10,11..4FC198102-198512

main35462-30020iMZ12..4FC198501-198512

35462ASPRING, COMPRESSION (FOR THROTTLE VALVE)

main90501-07051iMZ12..4FC198501-198512

main90501-07680iGZ10,MZ10,11..4FC198102-198512

main90501-11011iGZ10,MZ11..4FC..GT198203-198401

PRIMARY

main90501-12011iGZ10,MZ1#..4FC198102-198203

main90501-12077iGZ10..4FC..(V2,VR,VX)198401-198512

35462CSTOPPER, VALVE VIBRATING

main35422-22010iGZ10,MZ10,11..4FC198102-198512

35462DRING, E (FOR THROTTLE VALVE)

main90523-06023×6iGZ10,MZ1#..4FC198102-198512

35465PLUG, INTERMEDIATE SHIFT VALVE

main35465-22010iGZ10..4FC..(V2,VR,VX)198401-198512

35467VALVE, INTERMEDIATE SHIFT

main35467-22010iGZ10,MZ1#..4FC198102-198203

35468CVALVE, SECONDARY REGULATOR

main35468-12020iMZ12..4FC198501-198512

main35468-14010iGZ10,MZ10,11..4FC198401-198512

main35468-22010iMZ10198203-198401

35468DSPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)

main90501-15007iMZ12..4FC198501-198512

main90501-19001iGZ10,MZ10,11..4FC198102-198512

35472COVER, VALVE BODY, NO.2

main35472-22010iGZ10,MZ10..4FC..(TBO,V2,VR,VX)198203-198401

main35472-30010iGZ10,MZ10,11..4FC..(GT,TBO)198401-198512

35473COVER, TRANSMISSION VALVE BODY

main35473-22010iGZ10,MZ10,11..4FC198102-198512

35479SEAT, INTERMEDIATE SHIFT VALVE

main35479-22010iGZ10,MZ1#..4FC198102-198203

35521CAM, THROTTLE VALVE

main35521-24010iMZ10198307-198401

main35521-30010iGZ10,MZ1#..4FC198102-198203

main35521-30030iGZ10,MZ11,12..4FC..(GT,GTL)198203-198512

main35521-30040iMZ10198401-198512

35521ASPRING (FOR THROTTLE VALVE CAM RETURN)

main90508-11007iMZ12..4FC198501-198512

main90508-12331iGZ10,MZ10,11..4FC198102-198512

35521BWASHER (FOR THROTTLE VALVE CAM SET)

main90201-06472iGZ10,MZ1#..4FC198102-198512

35522PIN, THROTTLE VALVE CAM

main35522-22010iGZ10,MZ1#..4FC198102-198512

9010105002

main90101-05002

9010105417

main90101-05417

9010505002

main90105-05002

9010505003

main90105-05003

9010505005

main90105-05005

9010505007

main90105-05007

9010506018

main90105-06018

9454100500

main94541-00500

9454200600

main94542-00600
