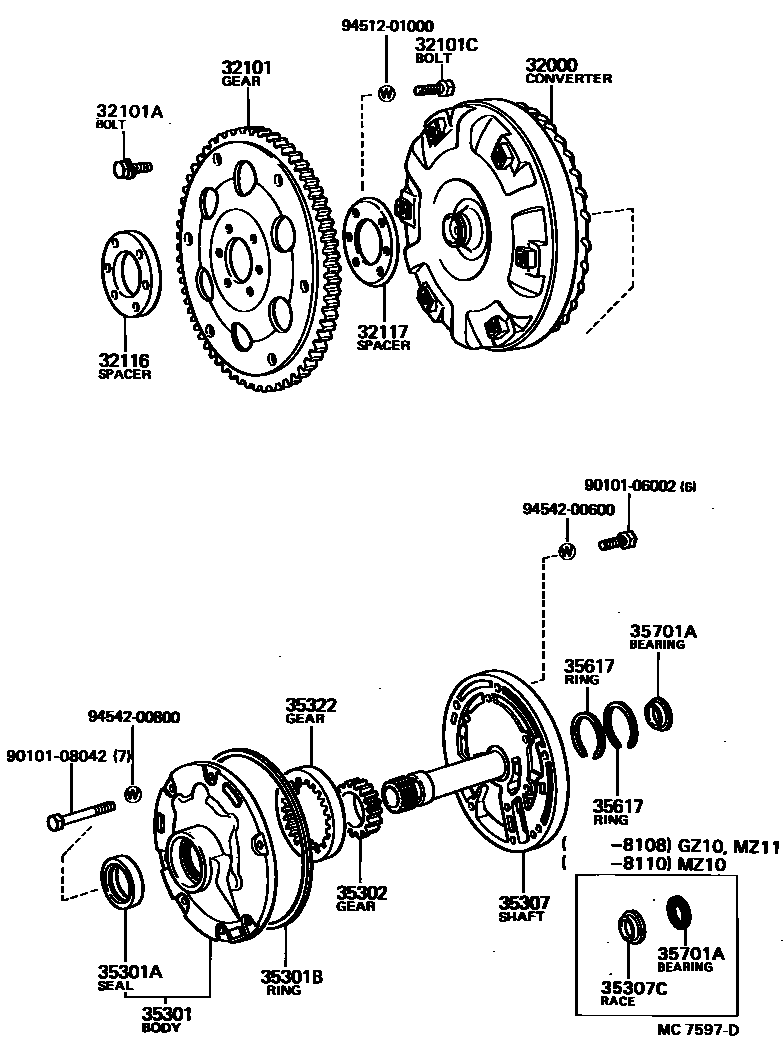

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1 0002 1

32000CONVERTER ASSY, TORQUE

main32000-14070iMZ11..4FC198203-198408

sub32000-14071

main32000-14071iMZ11..4FC198408-198501

main32000-14090iMZ10198107-198401

sub32000-14091

main32000-22040iMZ11..4FC198102-198107

sub32000-30100

main32000-24010iGZ10..4FC198102-198408

sub32000-24011

main32000-24011iGZ10..4FC198408-198512

main32000-30100iMZ11..4FC198107-198203

sub32000-30101

main32000-30110iMZ10198401-198408

sub32000-30111

main32000-30111iMZ10198408-198512

main32000-30120iMZ12..4FC198501-198512

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-14030iGZ10..4FC198102-198311

sub32101-22030

main32101-22030iGZ10..GT198302-198512

sub32101-22031

main32101-30040iMZ1#..4FC198102-198408

main32101-30060iMZ1#..4FC198408-198512

sub32101-30061

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08090iGZ10,MZ1#..4FC198210-198501

WHITE

main90109-08113iGZ10,MZ1#..4FC198501-198512

main90119-08223iGZ10,MZ1#..4FC198102-198501

main90119-08498iGZ10,MZ1#..4FC198501-198512

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10006iGZ10..4FC198102-198108

main90105-10046iGZ10..4FC198108-198512

main90109-10037iMZ1#..4FC198102-198512

32116SPACER, DRIVE PLATE, FRONT

main32116-14011iGZ10..4FC198102-198512

main32116-30011iMZ1#..4FC198102-198512

32117SPACER, DRIVE PLATE, REAR

main32117-14011iGZ10..4FC198102-198512

main32117-30011iMZ1#..4FC198102-198512

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-14010iGZ10,MZ10,11..4FC198102-198512

main35301-30030iMZ10198102-198401

main35301-30040iMZ12..4FC198501-198512

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iGZ10,MZ10,11..4FC198311-198512

main90311-38029iMZ12..4FC198501-198512

sub90311-38020

main90311-38129iGZ10,MZ1#..4FC198102-198311

sub90311-38020

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99010iGZ10,MZ10,11..4FC198102-198512

main90301-99033iMZ12..4FC198501-198512

35302GEAR SUB-ASSY, FRONT OIL PUMP DRIVE

main35321-14010iGZ10,MZ10,11..4FC198102-198512

sub35321-22020

sub35321-22030

sub35321-22040

sub35321-22050

sub35321-22060

main35321-22010iMZ10198102-198401

sub35321-22090

35307SHAFT SUB-ASSY, STATOR

main35370-14010iGZ10..4FC198102-198108

main35370-14011iGZ10,MZ11..4FC198108-198412

sub35370-14012

main35370-14012iGZ10,MZ10,11..4FC198412-198512

main35370-30020iMZ1#..4FC198102-198108

main35370-30021iMZ1#..4FC198108-198110

main35370-30022iMZ1#..4FC198110-198401

sub35370-30023

main35370-30031iMZ12..4FC198501-198512

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-22010iMZ10198102-198110

main35789-30020iMZ12..4FC198501-198512

sub35789-30340

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-14010iGZ10,MZ10,11..4FC198102-198512

sub35322-22020

sub35322-22030

sub35322-22040

sub35322-22050

sub35322-22060

main35322-22010iMZ10198102-198401

sub35322-22090

main35322-32020iMZ12..4FC198501-198512

sub35322-32050

35617RING, CLUTCH DRUM OIL SEAL

main35617-16010iGZ10,MZ10,11..4FC198108-198512

main35617-22020iGZ10,MZ1#..4FC198102-198108

main35617-30020iMZ12..4FC198501-198512

35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)

main90374-24001iGZ10,MZ1#..4FC198102-198110

main90374-25003iGZ10,MZ11..4FC198108-198512

9010106002

main90101-06002

9010108042

main90101-08042

9451201000

main94512-01000

9454200600

main94542-00600

9454200800

main94542-00800

20 parts on this diagram · 2 diagrams in section
