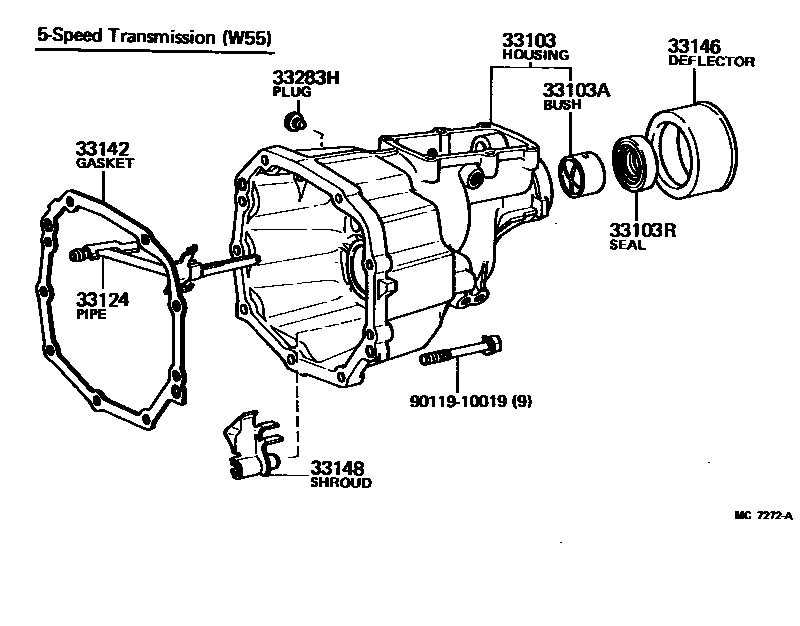

EXTENSION HOUSING (MTM)

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-22090iGZ10,MZ11,12..5F198102-198512

sub33103-22091

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-72023iGZ10,MZ11,12..5F198102-198512

sub90999-73139

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38043iGZ10,MZ11,12..5F198102-198512

sub90311-38040

33124PIPE, OIL RECEIVER(MTM)

main33106-22010iGZ10,MZ11,12..5F198102-198512

sub33106-35030

33142GASKET, EXTENSION HOUSING(MTM)

main33142-22010iGZ10,MZ11,12..5F198102-198512

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iGZ10,MZ11,12..5F198102-198512

sub33146-30020

33148SHROUD, GEAR, NO.1

main33148-22010iGZ10,MZ11,12..5F198102-198512

33283HPLUG, W/HEAD STRAIGHT SCREW

main90341-10065×2iGZ10,MZ11,12..5F198102-198512

9011910019

main90119-10019

9 parts on this diagram · 1 diagram in section
