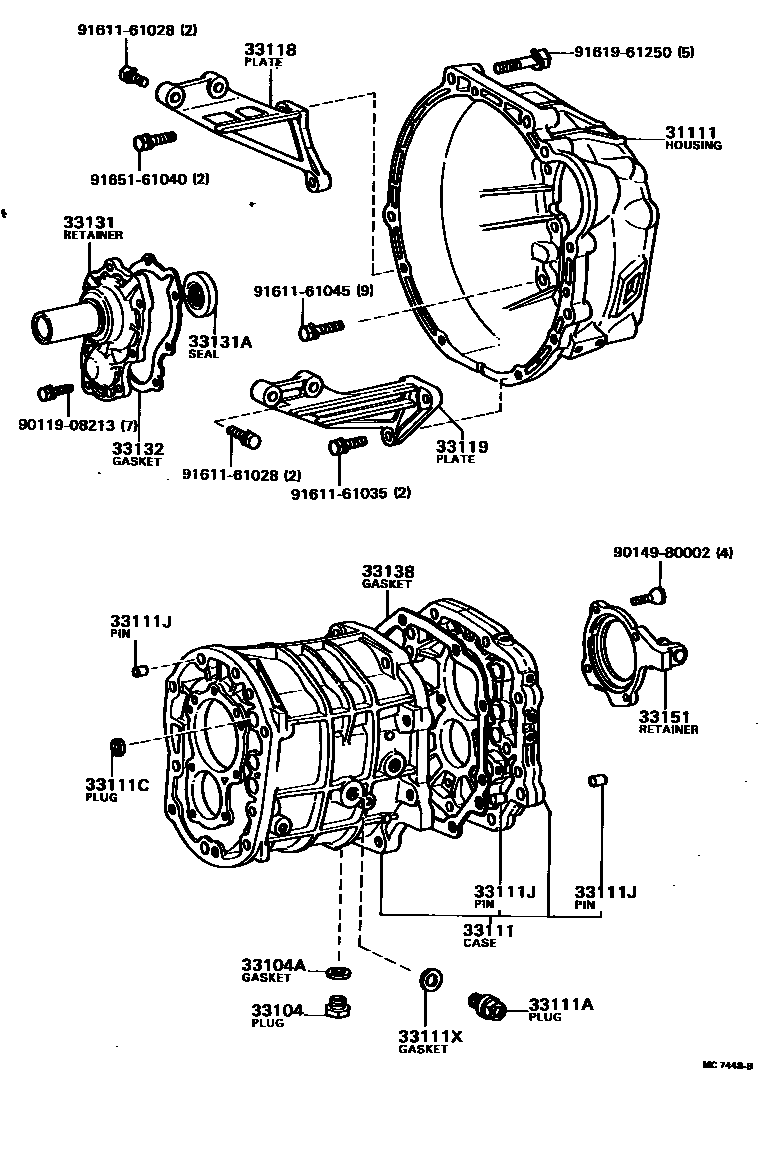

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1

31111HOUSING, CLUTCH

main31111-22090iMZ11..5F198102-198108

sub31111-22091

main31111-22091iMZ11,12..5F198108-198512

main31111-22100iGZ10..5F198102-198207

sub31111-22130

main31111-22130iGZ10..5F198207-198512

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18057iGZ10,MZ11,12..5F198102-198512

33104AGASKET, DRAIN PLUG(MTM)

main90430-18007iGZ10,MZ11..5F198102-198408

sub90430-18008

main90430-18008iGZ10,MZ11,12..5F198408-198512

33111CASE, MANUAL TRANSMISSION

main33101-22010iGZ10,MZ11..5F198102-198108

sub33101-22020

main33101-22021iGZ10,MZ11,12..5F198108-198512

sub33101-22031

main33101-22030iGZ10..5F198508-198512

sub33101-22031

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iGZ10,MZ11,12..5F198102-198512

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iGZ10,MZ11,12..5F198102-198512

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iGZ10,MZ11..5F198102-198512

main90250-12146iGZ10,MZ11..5F198102-198110

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18007iGZ10,MZ11..5F198102-198408

sub90430-18008

main90430-18008iGZ10,MZ11,12..5F198408-198512

33118PLATE, STIFFENER, RH(MTM)

main33118-22040iMZ11,12..5F198102-198512

main33118-22050iGZ10..5F198102-198512

sub33118-22051

33119PLATE, STIFFENER, LH(MTM)

main33119-22030iMZ11,12..5F198102-198512

main33119-22041iGZ10..5F198102-198512

sub33119-22042

33131RETAINER, BEARING, FRONT(MTM)

main33131-22020iGZ10,MZ11,12..5F198102-198512

sub33131-22021

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30115iGZ10,MZ11,12..5F198102-198512

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-22010iGZ10,MZ11,12..5F198102-198512

33138GASKET, INTERMEDIATE PLATE

main33142-22010iGZ10,MZ11,12..5F198102-198512

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-22010iGZ10,MZ11,12..5F198102-198512

9011908213

main90119-08213

9014980002

main90149-80002

9161161028

main91611-61028

9161161035

main91611-61035

9161161045

main91611-61045

9161961250

main91619-61250

9165161040

main91651-61040

22 parts on this diagram · 2 diagrams in section
