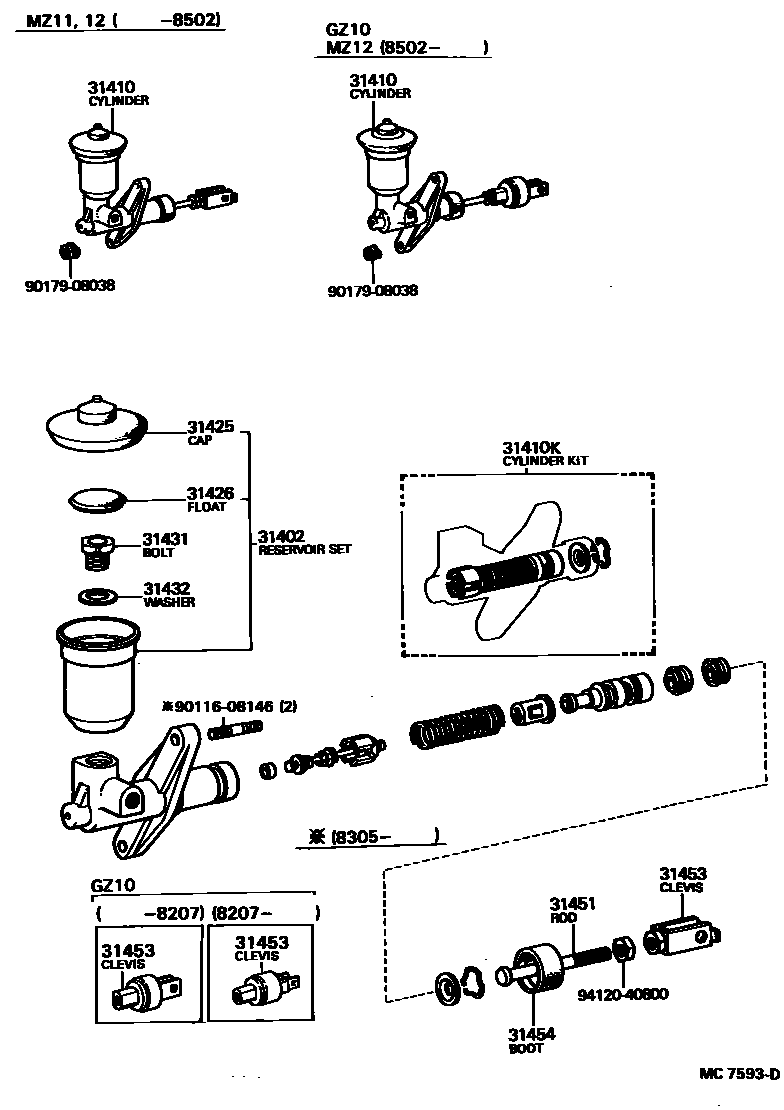

CLUTCH MASTER CYLINDER

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-30030iGZ10..5F198102-198512

main47202-12050iMZ11,12..5F198102-198502

31410CYLINDER ASSY, CLUTCH MASTER

main31410-14140iMZ11,12..5F198305-198502

sub31410-14240

main31410-14180iGZ10..5F198305-198512

sub31410-14181

main31410-22070iMZ11..5F198102-198305

sub31410-22071

main31410-24010iGZ10..5F198102-198106

sub31410-24030

main31410-24011iGZ10..5F198106-198207

sub31410-24H00

main31410-24012iGZ10..5F198207-198305

sub31410-22140

31410KCYLINDER KIT, CLUTCH MASTER

main04311-14011iMZ11,12..5F198302-198502

main04311-20050iGZ10,MZ11..5F198102-198302

sub04311-14011

main04311-30080iGZ10..5F198302-198512

sub04311-14020

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iGZ10,MZ11,12..5F198102-198512

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iGZ10,MZ11,12..5F198102-198512

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iGZ10,MZ11,12..5F198102-198512

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iGZ10,MZ11,12..5F198102-198512

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-20050iMZ11,12..5F198102-198502

main31451-30060iGZ10..5F198102-198512

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-30040iGZ10..5F198102-198207

main31404-30041iGZ10..5F198207-198512

main31453-22010iMZ11,12..5F198102-198502

sub31453-35010

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iMZ11,12..5F198102-198502

main31454-24010iGZ10..5F198102-198512

9011608146

main90116-08146

9017908038

main90179-08038

9412040800

main94120-40800

13 parts on this diagram · 1 diagram in section
