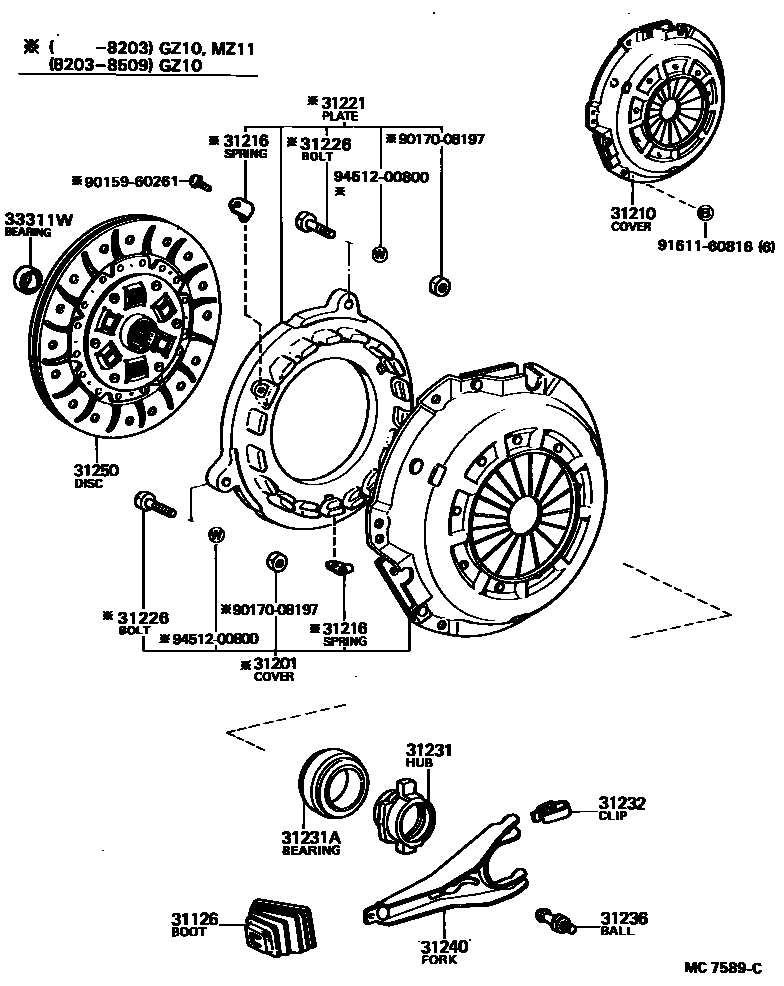

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-20070iGZ10,MZ11,12..5F198102-198512

31201COVER SUB-ASSY, CLUTCH

main31201-19095iGZ10..5F..GT198302-198512

sub31201-14110

main31201-29085iGZ10..5F..(V1,V2,VR,VX)198102-198509

sub31201-26010

main31201-29115iMZ11..5F198102-198107

sub31201-24010

main31201-29125iMZ11..5F198107-198203

31210COVER ASSY, CLUTCH

main31210-14120iMZ11..5F198203-198208

main31210-14121iMZ11..5F198208-198512

main31210-14130iGZ10..5F..GT198302-198509

sub31210-35090

main31210-22070iGZ10..5F..(V2,VR,VX)198509-198512

sub31210-30220

main31210-22080iGZ10..5F..GT198509-198512

sub31210-22100

main31210-24010iMZ11..5F198102-198107

sub31210-24011

main31210-24020iMZ11..5F198107-198203

sub31210-35130

main31210-24030iMZ12..5F198501-198512

sub31210-35140

main31210-36029iGZ10..5F..(V1,V2,VR,VX)198102-198509

sub31210-36200

31216SPRING, CLUTCH RETRACTING

main31216-30010×3iGZ10,MZ11..5F198102-198203

31221PLATE, CLUTCH PRESSURE

main31221-29055iMZ11..5F198107-198203

main31221-39056iGZ10..5F198102-198509

sub31221-36025

main31221-39115iMZ11..5F198102-198107

sub31221-30100

31226BOLT, CLUTCH PRESSURE PLATE

main90101-08022×3iMZ11..5F198102-198203

main90101-08350×3iGZ10..5F198102-198308

31231HUB, CLUTCH RELEASE BEARING

main31231-36070iGZ10,MZ11,12..5F198102-198512

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iGZ10,MZ11,12..5F198102-198512

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-22010×2iGZ10,MZ11,12..5F198102-198512

31236BALL, RELEASE FORK

main31236-20020iGZ10,MZ11..5F198102-198107

main31236-30060iGZ10,MZ11,12..5F198107-198512

31240FORK ASSY, CLUTCH RELEASE

main31204-20080iMZ11,12..5F198102-198512

main31204-20090iGZ10..5F198102-198512

31250DISC ASSY, CLUTCH

main31250-14130iMZ11,12..5F198203-198512

sub31250-36290

main31250-22101iGZ10..5F..(V1,V2,VR,VX)198102-198512

sub31250-22102

main31250-22150iGZ10..5F..GT198302-198506

main31250-22151iGZ10..5F..GT198506-198512

sub31250-22152

main31250-24010iMZ11..5F198102-198110

main31250-24011iMZ11..5F198110-198203

sub31250-24012

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iMZ11,12..5F198102-198512

sub90363-12024

main90363-12003iGZ10..5F198102-198512

9015960261

main90159-60261

9017008197

main90170-08197

9161160816

main91611-60816

9451200800

main94512-00800

17 parts on this diagram · 1 diagram in section
