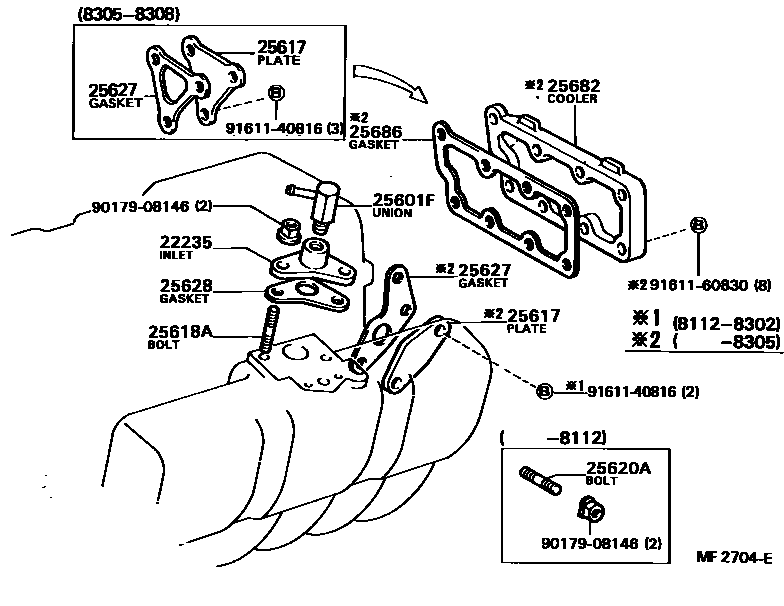

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1

22235INLET, AUXILIARY AIR

main22235-43010iMTEU..MZ10198107-198512

25601PIPE SUB-ASSY, EGR, NO.1

main25601-43020i5MGEU..MZ11198102-198302

25601FUNION(FOR EGR PIPE, NO.1)

main90404-53027iMTEU..MZ10198107-198512

25617PLATE, EGR HOLE COVER

main25615-43010i5MGEU..MZ11198302-198308

EGR

main25615-43020i5MGEU,6MGEU..MZ11,12198308-198512

HEAD

main25617-43010iMTEU..MZ10198107-198305

main25617-43020i5MGEU..MZ11198302-198501

SURGE TANK

main25617-43030iMTEU..MZ10198305-198308

EGR

25618ABOLT, STUD(FOR EGR INLET)

main90116-08025iMTEU..MZ10198107-198512

25620VALVE ASSY, EGR

main25620-43040i5MGEU..MZ11198102-198302

main25620-43060i5MGEU..MZ11..4FC198203-198302

25620ABOLT, STUD(FOR EGR VALVE)

main90116-08025i5MGEU,MTEU..MZ1#198102-198501

L=34,S=16&11

25627GASKET, EGR VALVE

main25627-41020iMTEU..MZ10198107-198305

sub25627-43140

main25627-43010i5MGEU..MZ11198102-198302

sub25627-43011

main25627-43020i5MGEU..MZ11198302-198501

SURGE TANK

sub25627-43100

main25627-43030i5MGEU,6MGEU..MZ11,12198308-198512

HEAD

sub25627-42040

main25627-43040iMTEU..MZ10198305-198308

sub25627-43060

25628GASKET, EGR INLET

main25628-43030i5MGEU..MZ11198102-198308

sub25628-43060

main25628-45020iMTEU..MZ10198107-198512

25682COOLER, EGR, NO.2

main25682-45020iMTEU..MZ10198107-198308

25686GASKET, EGR COOLER, NO.2

main25686-45010iMTEU..MZ10198107-198308

sub25686-43010

9017908146

main90179-08146

9161140816

main91611-40816

9161160830

main91611-60830

14 parts on this diagram · 3 diagrams in section
