CRANKSHAFT & PISTON

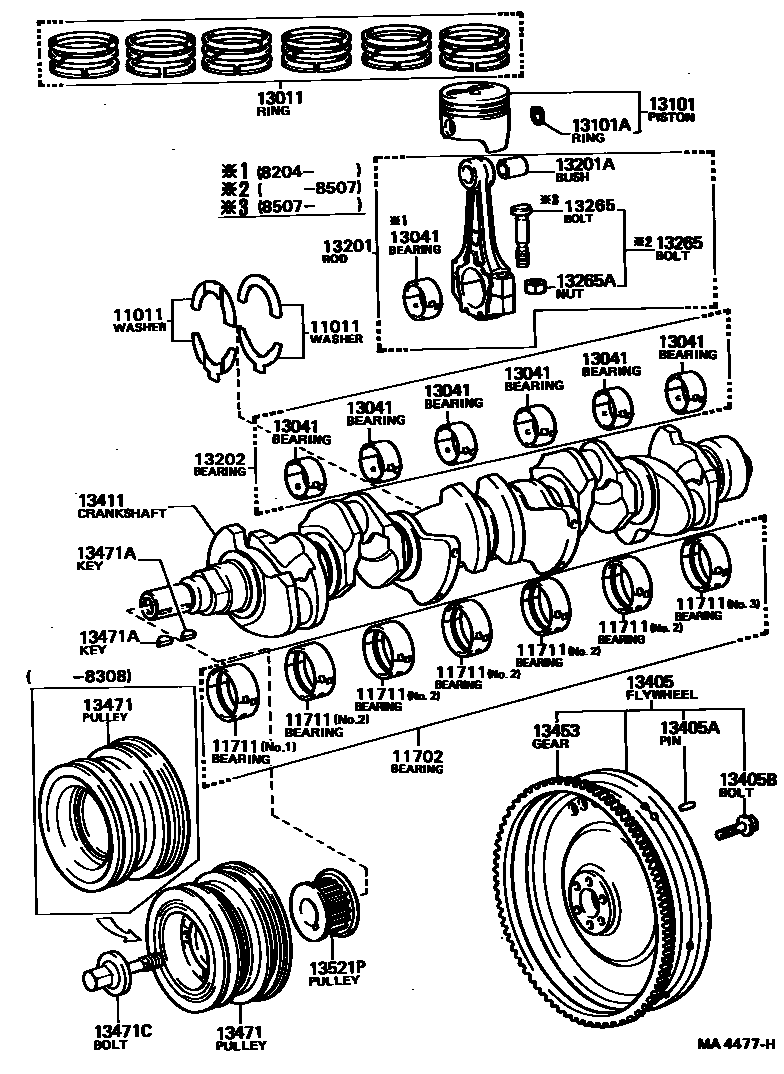

Parts diagram
11011WASHER SET, CRANKSHAFT THRUST
main11011-43010i198102-198512
main11011-70010i198102-198512
main11012-43010i198102-198512
main11013-43010i198102-198512
11702BEARING SET, CRANKSHAFT
main11702-45011i198102-198408
main11703-45011i198102-198408
main11704-43010i198408-198512
main11704-45011i198102-198408
main11704-70011i198102-198108
U/S 0.25
main11704-70012i198108-198503
main11704-70020i198503-198512
sub11704-70021
main11705-43010i198408-198512
main11705-45011i198102-198408
11711BEARING, CRANKSHAFT
main11071-43010-01i198408-198512
MARK"1",NO.1,MARK 1
main11071-43010-02i198408-198512
MARK"2",NO.1,MARK 2
main11071-43010-03i198408-198512
MARK"3",NO.1,MARK 3
main11071-43010-04i198408-198512
MARK"4",NO.1,MARK 4
main11071-43010-05i198408-198512
MARK"5",NO.1,MARK 5
main11071-70010-01i198502-198512
NO.1,MARK"1",MARK 1
sub11071-70011
main11071-70010-01i198502-198512
NO,1,MARK"1",*53,MARK 1
sub11071-70011
main11071-70010-02i198502-198512
NO,1,MARK"2",*53,MARK 2
sub11071-70011
main11071-70010-02i198502-198512
NO.1,MARK"2",MARK 2
sub11071-70011
main11071-70010-03i198502-198512
NO.1,MARK"3",MARK 3
sub11071-70011
main11071-70010-03i198502-198512
NO,1,MARK"3",*53,MARK 3
sub11071-70011
main11701-43010-01i198408-198512
MARK"1",NO.2,MARK 1
main11701-43010-02i198408-198512
MARK"2",NO.2,MARK 2
main11701-43010-03i198408-198512
MARK"3",NO.2,MARK 3
main11701-43010-04i198408-198512
MARK"4",NO.2,MARK 4
main11701-43010-05i198408-198512
MARK"5",NO.2,MARK 5
main11701-70011-01i198102-198108
NO.2,MARK"1",MARK 1
main11701-70011-02i198102-198108
NO.2,MARK"2",MARK 2
main11701-70011-03i198102-198108
NO.2,MARK"3",MARK 3
main11701-70012-01i198102-198108
NO.1,3,MARK"1",MARK 1
sub11701-63021
main11701-70012-01i198108-198502
MARK"1",MARK 1
sub11701-63021
main11701-70012-02i198102-198108
NO.1,3,MARK"2",MARK 2
sub11701-63021
main11701-70012-02i198108-198502
MARK"2",MARK 2
sub11701-63021
main11701-70012-03i198102-198108
NO.1,3,MARK"3",MARK 3
sub11701-63021
main11701-70012-03i198108-198502
MARK"3",MARK 3
sub11701-63021
main11701-70020-01i198502-198512
NO,2,3,MARK"1",MARK 1
sub11701-63021
main11701-70020-01i198502-198512
NO,2,3,MARK"1",*53,MARK 1
sub11701-63021
main11701-70020-02i198502-198512
NO,2,3,MARK"2",*53,MARK 2
sub11701-63021
main11701-70020-02i198502-198512
NO,2,3,MARK"2",MARK 2
sub11701-63021
main11701-70020-03i198502-198512
NO.2,3,MARK"3",MARK 3
sub11701-63021
main11701-70020-03i198502-198512
NO,2,3,MARK"3",*53,MARK 3
sub11701-63021
main11701-88300-01i198302-198502
MARK"1",MARK 1
sub11701-88360
main11701-88300-01i198502-198512
MARK"1",*54,MARK 1
sub11701-88360
main11701-88300-02i198302-198502
MARK"2",MARK 2
sub11701-88360
main11701-88300-02i198502-198512
MARK"2",*54,MARK 2
sub11701-88360
main11701-88300-03i198502-198512
MARK"3",*54,MARK 3
sub11701-88360
main11701-88300-03i198302-198502
MARK"3",MARK 3
sub11701-88360
13011RING SET, PISTON
main13011-41015i198107-198512
main13011-43050i198102-198512
STD
sub13011-42040
main13011-70010i198102-198512
main13011-88300i198507-198512
main13011-88300i198302-198507
main13011-88301i198507-198512
main13011-88301i198512-198512
main13013-41015i198107-198512
main13013-43050i198102-198512
O/S 0.50
sub13013-42040
main13013-70010i198102-198512
main13013-88300i198302-198507
main13013-88300i198507-198512
main13013-88301i198507-198512
main13014-41015i198107-198512
main13014-43050i198102-198512
O/S 0.75
sub13014-42040
main13014-70010i198102-198512
main13015-41015i198107-198512
main13015-43050i198102-198512
O/S 1.00
sub13015-42040
main13015-70010i198102-198512
13041BEARING, CONNECTING ROD
main13041-42010-01i198407-198512
MARK"1",MARK 1
main13041-42010-02i198407-198512
MARK"2",MARK 2
main13041-42010-03i198407-198512
MARK"3",MARK 3
main13041-42010-04i198407-198512
MARK"4",MARK 4
main13041-42010-05i198407-198512
MARK"5",MARK 5
main13041-70010-03i198102-198512
MARK"3",MARK 3
main13041-70010-04i198102-198512
MARK"4",MARK 4
main13041-70010-05i198102-198512
MARK"5",MARK 5
main13041-88300-03i198302-198512
MARK"3",MARK 3
main13041-88300-04i198302-198512
MARK"4",MARK 4
main13041-88300-05i198302-198512
MARK"5",MARK 5
13101PISTON SUB-ASSY, W/PIN
main13101-41050i198107-198302
STD
main13101-41060i198302-198407
STD
sub13101-41061
main13101-41061i198407-198512
STD
main13101-43040i198102-198401
STD
sub13101-43041
main13101-43041i198501-198512
main13101-43050i198401-198407
STD
sub13101-43051
main13101-43051i198407-198501
main13101-70010i198102-198512
main13101-70031i198408-198512
main13101-70032i198512-198512
sub13101-70033
main13101-88300i198302-198507
main13101-88301i198507-198512
sub13101-70033
main13103-41050i198107-198302
O/S 0.50
main13103-41060i198302-198407
O/S 0.50
sub13103-41061
main13103-41061i198407-198512
O/S 0.50
main13103-43050i198102-198401
O/S 0.50
sub13103-43051
main13103-43051i198501-198512
main13103-43060i198401-198407
O/S 0.50
sub13103-43061
main13103-43061i198407-198501
main13103-70010i198102-198512
main13103-70031i198408-198512
main13103-88300i198408-198507
main13103-88300i198302-198408
main13103-88301i198507-198512
sub13103-70033
main13104-41050i198107-198302
O/S 0.75
main13104-41060i198302-198407
O/S 0.75
sub13104-41061
main13104-41061i198407-198512
O/S 0.75
main13104-43050i198102-198401
O/S 0.75
sub13104-43051
main13104-43051i198501-198512
main13104-43060i198401-198407
O/S 0.75
sub13104-43061
main13104-43061i198407-198501
main13104-70010i198102-198512
main13105-41050i198107-198302
O/S 1.00
main13105-41060i198302-198407
O/S 1.00
sub13105-41061
main13105-41061i198407-198512
O/S 1.00
main13105-43050i198102-198401
O/S 1.00
sub13105-43051
main13105-43051i198501-198512
main13105-43060i198401-198407
O/S 1.00
sub13105-43061
main13105-43061i198407-198501
main13105-70010i198102-198512
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90521-20002i198302-198408
main90521-20002i198408-198507
ENGINE NO.=9XXXXXX
main90521-21088i198102-198512
main90521-21088i198408-198512
ENGINE NO.=05XXXXX
main90521-21088i198507-198512
ENGINE NO.=9XXXXXX
main90521-25001i198408-198512
main90521-25052i198102-198408
13201ROD SUB-ASSY, CONNECTING
main13201-41011i198107-198512
main13201-42010i198501-198503
sub13201-49035
main13201-43010i198401-198407
sub13201-49025
main13201-43011i198407-198501
sub13201-49025
main13201-45010i198102-198401
sub13201-49015
main13201-49035i198503-198512
main13201-70010i198102-198204
sub13201-79015
main13201-79015i198204-198207
sub13201-13010
sub13041-70010
main13201-79025i198302-198410
sub13201-79026
main13201-79026i198410-198512
main13201-79055i198207-198410
sub13201-79056
main13201-79056i198410-198512
13201ABUSH(FOR CONNECTING ROD SMALL END)
main90999-73066i198102-198512
main90999-73070i198102-198512
13202BEARING SET, CONNECTING ROD
main13202-45011i198102-198512
main13203-45011i198102-198512
main13204-42010i198407-198512
main13204-45011i198102-198512
main13204-70010i198102-198512
main13205-42010i198407-198512
main13205-45011i198102-198512
13265BOLT, CONNECTING ROD
main13265-29015i198102-198507
sub13265-70010
sub90170-09001
main13265-49025i198102-198512
main13265-70010i198507-198512
sub13265-70020
main90910-02044i198107-198512
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
main90170-09001i198102-198512
main90170-09195i198102-198512
13405FLYWHEEL SUB-ASSY
main13405-49116i198102-198203
main13405-49175i198203-198512
main13405-79015i198102-198512
main13405-79025i198302-198512
13405APIN, STRAIGHT(FOR FLYWHEEL)
main90250-08054i198102-198512
13405BBOLT, FLYWHEEL SETTING
main90105-10042i198102-198512
*10-1.25PX26-18
13411CRANKSHAFT
main13411-41015i198107-198408
sub13411-41016
sub90280-05003
main13411-41016i198408-198512
main13411-42030i198501-198512
main13411-45012i198102-198408
sub13411-45013
sub90280-05003
main13411-45013i198408-198501
main13411-70010i198102-198108
sub13411-70011
main13411-70011i198108-198408
sub13411-70012
main13411-70012i198408-198512
sub13411-70902
main13411-70020i198302-198408
sub13411-70021
main13411-70021i198408-198512
sub13411-70903
13453GEAR, FLYWHEEL RING
main13453-20010i198102-198512
13471PULLEY, CRANKSHAFT
main13407-41021i198107-198308
main13407-41030i198308-198512
main13407-42020i198501-198512
main13407-43010i198102-198204
sub13407-43011
sub90105-16011
main13407-43011i198204-198302
main13407-43020i198302-198501
main13407-70031i198201-198308
main13407-70040i198102-198201
sub13407-70031
main13407-70060i198308-198512
sub13407-70050
main13407-88300i198302-198308
sub13407-88301
main13407-88301i198308-198512
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main90280-05001i198102-198408
main90280-05003i198408-198512
main95161-10519i198102-198512
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90105-16002i198102-198203
*16-1.5PX26-21
sub90105-16011
main90105-16011i198203-198512
main90105-18001i198102-198512
*18-1.5PX40-20
main90105-18002i198501-198512
sub90105-18003
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-41011i198107-198512
13521PPULLEY, CRANKSHAFT TIMING
main13521-42010i198501-198512
main13521-43010i198102-198308
main13521-43020i198308-198501
main13521-70010i198102-198405
sub13521-70011
main13521-70011i198405-198407
main13521-70030i198407-198512
main13521-88300i198302-198505
main13521-88340i198505-198512

22 parts on this diagram · 4 diagrams in section
